Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

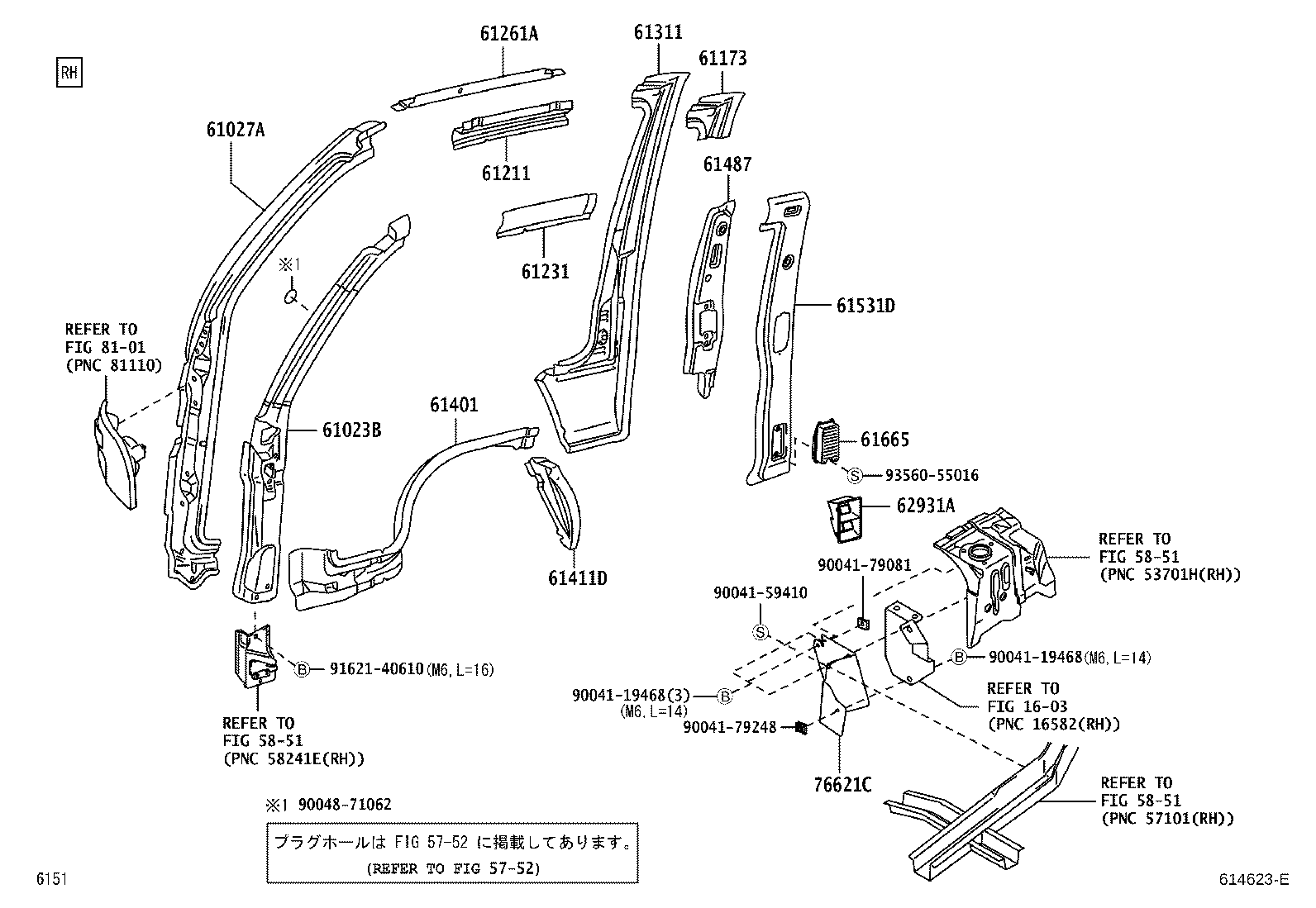

22 parts on this figure

Part number	Description	Fitment	Price
61023B — Pillar Sub-assy, Front Body, Inner RH
61023-B5010	Pillar Sub-assy, Front Body, Inner RH 2011-12 → 2012-04 ended	S201,211 SPL	¥12,900
61023-B5011	Pillar Sub-assy, Front Body, Inner RH 2012-04 → —	S201,211 SPL	¥12,900
61023-B5020	Pillar Sub-assy, Front Body, Inner RH 2011-12 → 2012-04 ended	S201,211 EXT	¥12,900
61023-B5020 note	Pillar Sub-assy, Front Body, Inner RH 2011-12 → 2012-04 ended	S201,211 SPL	¥12,900
61023-B5021	Pillar Sub-assy, Front Body, Inner RH 2012-04 → —	S201,211 EXT	¥12,900
61023-B5021 note	Pillar Sub-assy, Front Body, Inner RH 2012-04 → —	S201,211 SPL	¥12,900
61027A — Pillar Sub-assy, Front Body, Outer RH
61027-B5010 note	Pillar Sub-assy, Front Body, Outer RH 2011-12 → 2012-04 ended	S201,211	¥14,900
61027-B5011 note	Pillar Sub-assy, Front Body, Outer RH 2012-04 → —	S201,211	¥15,100
61173 — Reinforcement, Front Body Pillar, Upper Inner
65683-97501	Reinforcement, Front Body Pillar, Upper Inner 2011-12 → —	S201,211	¥1,660
61211 — Rail, Roof Side, Outer RH
61211-97501	Rail, Roof Side, Outer RH 2011-12 → —	S201,211	¥3,970
61231 — Rail, Roof Side, Inner RH
61231-87521	Rail, Roof Side, Inner RH 2011-12 → —	S201,211	¥4,120
61261A — Channel, Roof Drip Side, Front RH
61265-97501	Channel, Roof Drip Side, Front RH 2011-12 → —	S201,211	¥2,680
61311 — Pillar, Rear RH
61301-B5010	Pillar, Rear RH 2011-12 → —	S201,211	¥16,600
61401 — Panel Sub-assy, Fender, RH
61421-87505	Panel Sub-assy, Fender, RH 2011-12 → —	S201,211	¥9,000
61411D — Panel, Fender, Outer RH
61425-87512	Panel, Fender, Outer RH 2011-12 → —	S201,211	¥9,100
61487 — Reinforcement, NO.10 Pillar, Upper RH
64191-97501	Reinforcement, NO.10 Pillar, Upper RH 2011-12 → —	S201,211	¥7,700
61531D — Panel, Cab Rear Pillar, Inner RH
64135-97501	Panel, Cab Rear Pillar, Inner RH 2011-12 → —	S201,211	¥11,400
61665 — Cover, Quarter Corner Inner
62998-B5010-B0 note	Cover, Quarter Corner Inner 2011-12 → —	S201,211	¥2,170
63910-B5010-B0 note	Cover, Quarter Corner Inner 2011-12 → —	S201,211	¥4,120
62931A — Duct, Quarter Vent, RH
62930-B5010	Duct, Quarter Vent, RH 2011-12 → —	S201,211	¥1,390
76621C — Mudguad, Front Fender, RH
76621-B5020	Mudguad, Front Fender, RH 2011-12 → 2012-04 ended	S201,211	¥2,170
76621-B5050	Mudguad, Front Fender, RH 2012-05 → —	S201,211	¥2,170

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
