Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

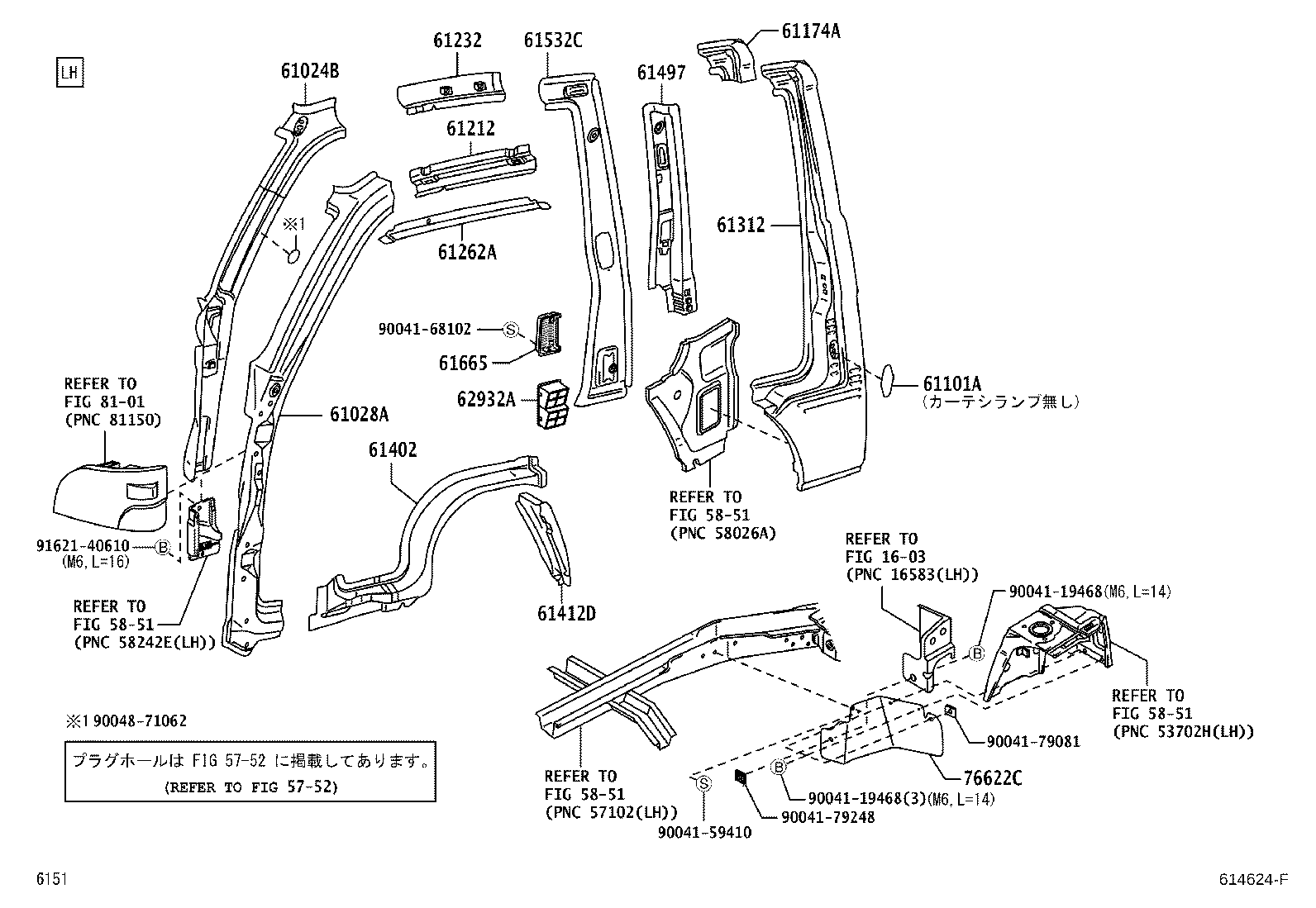

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

33 parts on this figure

Part number	Description	Fitment	Price
61024B — Pillar Sub-assy, Front Body, Inner LH
61024-B5010	Pillar Sub-assy, Front Body, Inner LH 2011-12 → 2012-04 ended	S201,211 SPL	¥12,900
61024-B5011	Pillar Sub-assy, Front Body, Inner LH 2012-04 → —	S201,211 SPL	¥12,900
61024-B5020	Pillar Sub-assy, Front Body, Inner LH 2011-12 → 2012-04 ended	S201,211 EXT	¥12,900
61024-B5020 note	Pillar Sub-assy, Front Body, Inner LH 2011-12 → 2012-04 ended	S201,211 SPL	¥12,900
61024-B5021	Pillar Sub-assy, Front Body, Inner LH 2012-04 → —	S201,211 EXT	¥12,900
61024-B5021 note	Pillar Sub-assy, Front Body, Inner LH 2012-04 → —	S201,211 SPL	¥12,900
61024-B5050 note	Pillar Sub-assy, Front Body, Inner LH 2011-12 → 2012-04 ended	S201,211 SPL	¥12,900
61024-B5051 note	Pillar Sub-assy, Front Body, Inner LH 2012-04 → —	S201,211 SPL	¥10,800
61024-B5060 note	Pillar Sub-assy, Front Body, Inner LH 2011-12 → 2012-04 ended	S201,211 SPL	¥10,800
61024-B5060 note	Pillar Sub-assy, Front Body, Inner LH 2011-12 → 2012-04 ended	S201,211 EXT	¥10,800
61024-B5061 note	Pillar Sub-assy, Front Body, Inner LH 2012-04 → —	S201,211 SPL	¥10,800
61024-B5061 note	Pillar Sub-assy, Front Body, Inner LH 2012-04 → —	S201,211 EXT	¥10,800
61028A — Pillar Sub-assy, Front Body, Outer LH
61028-B5010 note	Pillar Sub-assy, Front Body, Outer LH 2011-12 → 2012-04 ended	S201,211	¥14,900
61028-B5011 note	Pillar Sub-assy, Front Body, Outer LH 2012-04 → —	S201,211	¥15,100
61028-B5020 note	Pillar Sub-assy, Front Body, Outer LH 2011-12 → 2012-04 ended	S201,211	¥14,900
61028-B5021 note	Pillar Sub-assy, Front Body, Outer LH 2012-04 → —	S201,211	¥15,100
61101A — Plug, Hole(FOR COWL SIDE PANEL)
90048-71210	Plug, Hole(FOR COWL SIDE PANEL) 2011-12 → —	S201,211 SPL	¥90
61174A — Reinforcement, Front Body Pillar, Upper Inner LH
65684-97501	Reinforcement, Front Body Pillar, Upper Inner LH 2011-12 → —	S201,211	¥1,660
61212 — Rail, Roof Side, Outer LH
61212-97501	Rail, Roof Side, Outer LH 2011-12 → —	S201,211	¥3,970
61232 — Rail, Roof Side, Inner LH
61232-87525	Rail, Roof Side, Inner LH 2011-12 → —	S201,211	¥4,120
61262A — Channel, Roof Drip Side, Front LH
61266-97501	Channel, Roof Drip Side, Front LH 2011-12 → —	S201,211	¥2,680
61312 — Pillar, Rear LH
61302-B5010	Pillar, Rear LH 2011-12 → —	S201,211	¥16,600
61402 — Panel Sub-assy, Fender, LH
61422-87505	Panel Sub-assy, Fender, LH 2011-12 → —	S201,211	¥9,000
61412D — Panel, Fender, Outer LH
61426-87512	Panel, Fender, Outer LH 2011-12 → —	S201,211	¥9,100
61497 — Reinforcement, NO.10 Pillar, Upper LH
64192-B5010	Reinforcement, NO.10 Pillar, Upper LH 2011-12 → —	S201,211	¥7,700
61532C — Panel, Cab Rear Pillar, Inside LH
61344-B5060	Panel, Cab Rear Pillar, Inside LH 2011-12 → —	S201,211	¥11,400
61665 — Cover, Quarter Corner Inner
62998-B5010-B0 note	Cover, Quarter Corner Inner 2011-12 → —	S201,211	¥2,170
63910-B5010-B0 note	Cover, Quarter Corner Inner 2011-12 → —	S201,211	¥4,120
62932A — Duct, Quarter Vent, LH
62930-B5010	Duct, Quarter Vent, LH 2011-12 → —	S201,211	¥1,390
76622C — Mudguard, Front Fender, LH
76622-B5010	Mudguard, Front Fender, LH 2011-12 → 2012-04 ended	S201	¥2,170
76622-B5020	Mudguard, Front Fender, LH 2011-12 → 2012-04 ended	S211	¥2,170
76622-B5040	Mudguard, Front Fender, LH 2012-05 → —	S201	¥2,170
76622-B5050	Mudguard, Front Fender, LH 2012-05 → —	S211	¥2,170

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
