Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

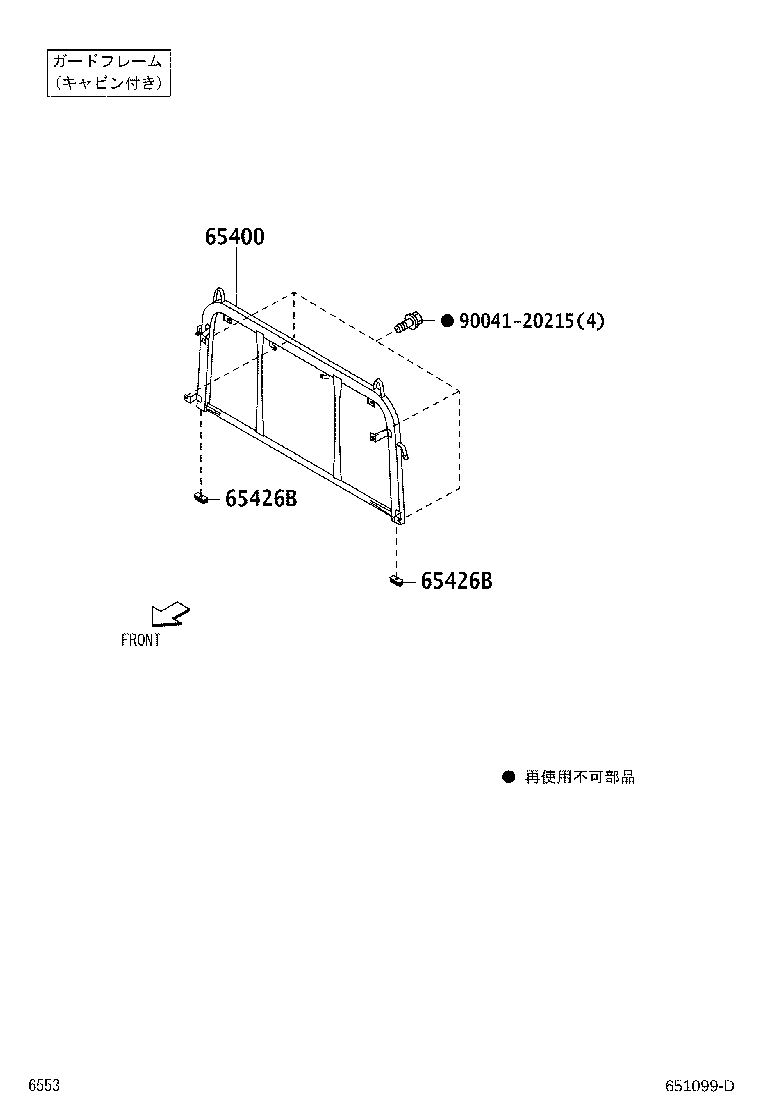

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 65400 — Frame Assy, Rear Body Guard | ||||
| 65410-B5031 note |
Frame Assy, Rear Body Guard
2011-12 → 2012-04
ended
|
S201,211 SPL | ¥20,200 | |
| 65410-B5032 note |
Frame Assy, Rear Body Guard
2012-05 → 2012-06
ended
|
S201,211 SPL | — | |
| 65410-B5033 note |
Frame Assy, Rear Body Guard
2012-06 → 2014-02
ended
|
S201,211 SPL | ¥20,200 | |
| 65410-B5034 note |
Frame Assy, Rear Body Guard
2014-03 → 2014-07
ended
|
S201,211 SPL | ¥27,000 | |
| 65410-B5041 |
Frame Assy, Rear Body Guard
2011-12 → 2012-04
ended
|
S201,211 | ¥20,200 | |
| 65410-B5042 |
Frame Assy, Rear Body Guard
2012-05 → 2012-06
ended
|
S201,211 | ¥20,200 | |
| 65410-B5043 note |
Frame Assy, Rear Body Guard
2012-06 → 2013-04
ended
|
S201,211 SPL | ¥20,200 | |
| 65410-B5043 note |
Frame Assy, Rear Body Guard
2012-06 → 2013-04
ended
|
S201,211 SPL | ¥20,200 | |
| 65410-B5043 note |
Frame Assy, Rear Body Guard
2013-04 → 2014-02
ended
|
S211 MTM SPL | ¥20,200 | |
| 65410-B5043 |
Frame Assy, Rear Body Guard
2012-06 → 2014-03
ended
|
S201,211 EXT | ¥20,200 | |
| 65410-B5043 note |
Frame Assy, Rear Body Guard
2012-06 → 2014-03
ended
|
S201,211 SPL | ¥20,200 | |
| 65410-B5043 note |
Frame Assy, Rear Body Guard
2013-04 → 2014-03
ended
|
S211 MTM SPL | ¥20,200 | |
| 65410-B5044 |
Frame Assy, Rear Body Guard
2014-03 → 2014-07
ended
|
S201,211 EXT | ¥32,500 | |
| 65410-B5044 note |
Frame Assy, Rear Body Guard
2014-03 → 2014-07
ended
|
S211 MTM SPL | ¥32,500 | |
| 65426B — Lid, Guard Frame Horizontal Bar End | ||||
| 65426-B5011 |
Lid, Guard Frame Horizontal Bar End
2011-12 → —
|
S201,211 | ¥190 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
