Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

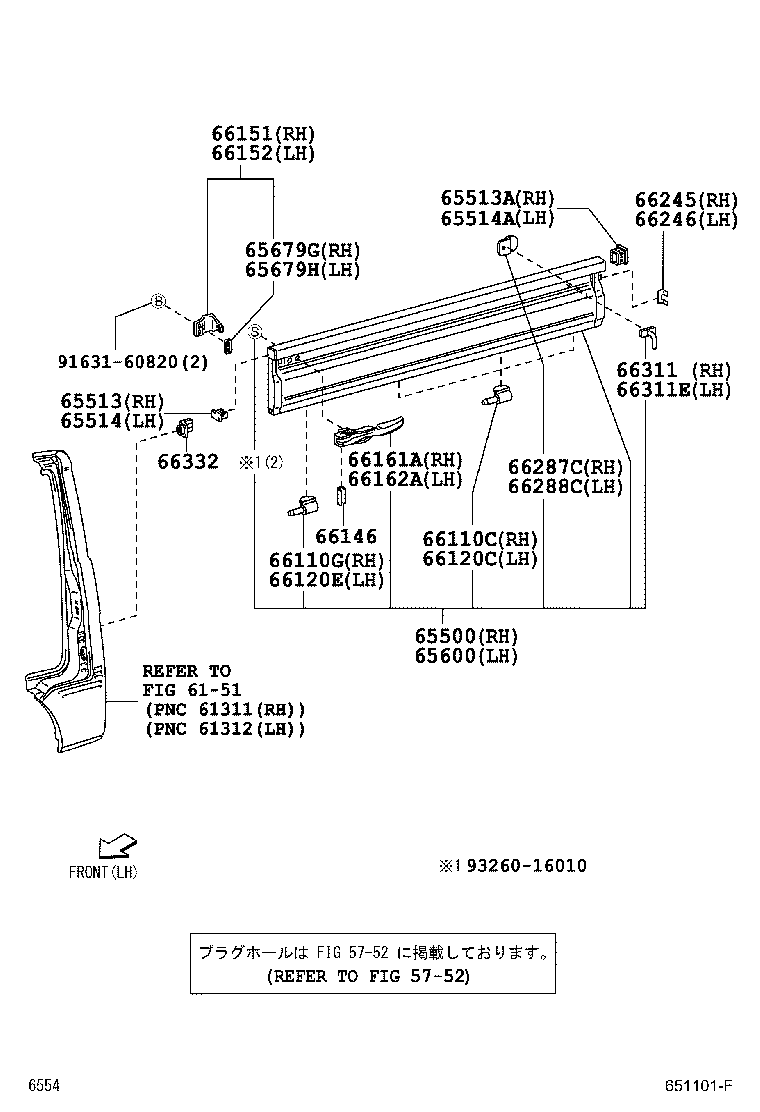

84 parts on this figure

Part number	Description	Fitment	Price
65500 — Panel Assy, Rear Body Side, RH
65001-B5010 note	Panel Assy, Rear Body Side, RH 2011-12 → 2013-01 ended	S201,211 SPL	¥35,400
65001-B5011	Panel Assy, Rear Body Side, RH 2013-02 → 2013-09 ended	S201,211 SPL	¥35,400
65001-B5012 note	Panel Assy, Rear Body Side, RH 2013-10 → 2014-07 ended	S201,211 SPL	¥41,000
65001-B5020 note	Panel Assy, Rear Body Side, RH 2011-12 → 2013-01 ended	S201,211 EXT	¥35,400
65001-B5020 note	Panel Assy, Rear Body Side, RH 2011-12 → 2013-01 ended	S201,211 SPL	¥35,400
65001-B5021	Panel Assy, Rear Body Side, RH 2013-02 → 2013-09 ended	S201,211 EXT	¥35,400
65001-B5021 note	Panel Assy, Rear Body Side, RH 2013-02 → 2013-09 ended	S201,211 SPL	¥35,400
65001-B5022 note	Panel Assy, Rear Body Side, RH 2013-10 → 2014-07 ended	S201,211 EXT	¥41,000
65001-B5022 note	Panel Assy, Rear Body Side, RH 2013-10 → 2014-07 ended	S201,211 SPL	¥41,000
65001-B5030 note	Panel Assy, Rear Body Side, RH 2011-12 → 2013-01 ended	S201,211	¥35,400
65001-B5030 note	Panel Assy, Rear Body Side, RH 2011-12 → 2013-01 ended	S201,211 SPL	¥35,400
65001-B5031 note	Panel Assy, Rear Body Side, RH 2013-02 → 2013-09 ended	S201,211	¥35,400
65001-B5031 note	Panel Assy, Rear Body Side, RH 2013-02 → 2013-09 ended	S201,211 SPL	¥35,400
65001-B5032 note	Panel Assy, Rear Body Side, RH 2013-10 → 2014-07 ended	S201,211	¥41,000
65001-B5032 note	Panel Assy, Rear Body Side, RH 2013-10 → 2014-07 ended	S201,211 SPL	¥41,000
65513 — Lid, Top Rail, Front RH
65513-B5010	Lid, Top Rail, Front RH 2011-12 → —	S201,211	¥440
65513A — Lid, Top Rail, Rear RH
65514-B5010	Lid, Top Rail, Rear RH 2011-12 → —	S201,211	¥440
65514 — Lid, Top Rail, Front LH
65514-B5010	Lid, Top Rail, Front LH 2011-12 → —	S201,211	¥440
65514A — Lid, Top Rail, Rear LH
65513-B5010	Lid, Top Rail, Rear LH 2011-12 → —	S201,211	¥440
65600 — Panel Assy, Rear Body Side, LH
65002-B5010 note	Panel Assy, Rear Body Side, LH 2011-12 → 2013-01 ended	S201,211 SPL	¥35,400
65002-B5011	Panel Assy, Rear Body Side, LH 2013-02 → 2013-09 ended	S201,211 SPL	¥35,400
65002-B5012 note	Panel Assy, Rear Body Side, LH 2013-10 → 2014-07 ended	S201,211 SPL	¥41,000
65002-B5020 note	Panel Assy, Rear Body Side, LH 2011-12 → 2013-01 ended	S201,211 EXT	¥35,400
65002-B5020 note	Panel Assy, Rear Body Side, LH 2011-12 → 2013-01 ended	S201,211 SPL	¥35,400
65002-B5021	Panel Assy, Rear Body Side, LH 2013-02 → 2013-09 ended	S201,211 EXT	¥35,400
65002-B5021 note	Panel Assy, Rear Body Side, LH 2013-02 → 2013-09 ended	S201,211 SPL	¥35,400
65002-B5022 note	Panel Assy, Rear Body Side, LH 2013-10 → 2014-07 ended	S201,211 SPL	¥41,000
65002-B5022 note	Panel Assy, Rear Body Side, LH 2013-10 → 2014-07 ended	S201,211 EXT	¥41,000
65002-B5030 note	Panel Assy, Rear Body Side, LH 2011-12 → 2013-01 ended	S201,211 SPL	¥35,400
65002-B5030 note	Panel Assy, Rear Body Side, LH 2011-12 → 2013-01 ended	S201,211	¥35,400
65002-B5031 note	Panel Assy, Rear Body Side, LH 2013-02 → 2013-09 ended	S201,211 SPL	¥35,400
65002-B5031 note	Panel Assy, Rear Body Side, LH 2013-02 → 2013-09 ended	S201,211	¥35,400
65002-B5032 note	Panel Assy, Rear Body Side, LH 2013-10 → 2014-07 ended	S201,211	¥41,000
65002-B5032 note	Panel Assy, Rear Body Side, LH 2013-10 → 2014-07 ended	S201,211 SPL	¥41,000
65679G — Seal, Side Gate
66148-87502	Seal, Side Gate 2011-12 → —	S201,211	¥360
65679H — Seal, Side Gate
66148-87502	Seal, Side Gate 2011-12 → —	S201,211	¥360
66110C — Hinge Assy, Side Gate, NO.1 RH
65071-87503	Hinge Assy, Side Gate, NO.1 RH 2011-12 → —	S201,211	¥1,570
66031-B5010 note	Hinge Assy, Side Gate, NO.1 RH 2011-12 → —	S201,211	¥1,420
66031-B5010 note	Hinge Assy, Side Gate, NO.1 RH 2011-12 → —	S201,211 SPL	¥1,420
66110G — Hinge Assy, Side Gate, NO.2 RH
65071-87503	Hinge Assy, Side Gate, NO.2 RH 2011-12 → 2014-07 ended	S201,211	¥1,570
66031-B5010 note	Hinge Assy, Side Gate, NO.2 RH 2011-12 → 2014-07 ended	S201,211	¥1,420
66031-B5010 note	Hinge Assy, Side Gate, NO.2 RH 2011-12 → 2014-07 ended	S201,211 SPL	¥1,420
66120C — Hinge Assy, Side Gate, NO.1 LH
65073-87502	Hinge Assy, Side Gate, NO.1 LH 2011-12 → —	S201,211	¥1,570
66033-B5010 note	Hinge Assy, Side Gate, NO.1 LH 2011-12 → —	S201,211 SPL	¥1,420
66033-B5010 note	Hinge Assy, Side Gate, NO.1 LH 2011-12 → —	S201,211	¥1,420
66120E — Hinge Assy, Side Gate, NO.2 LH
65073-87502	Hinge Assy, Side Gate, NO.2 LH 2011-12 → 2014-07 ended	S201,211	¥1,570
66034-B5010 note	Hinge Assy, Side Gate, NO.2 LH 2011-12 → 2014-07 ended	S201,211	¥1,570
66034-B5010 note	Hinge Assy, Side Gate, NO.2 LH 2011-12 → 2014-07 ended	S201,211 SPL	¥1,570
66146 — Silencer, Gate Lock
65679-B5030	Silencer, Gate Lock 2012-02 → —	S201,211	¥310
66146-87506	Silencer, Gate Lock 2011-12 → 2012-01 ended	S201,211	¥250
66151 — Latch, Side Gate Female, RH
66101-87508	Latch, Side Gate Female, RH 2011-12 → 2014-07 ended	S201,211	¥2,120
66152 — Latch, Side Gate Female, LH
66101-87508	Latch, Side Gate Female, LH 2011-12 → —	S201,211	¥2,120
66161A — Handle, Side Gate Latch, RH
66019-B5010 note	Handle, Side Gate Latch, RH 2011-12 → 2014-07 ended	S201,211	¥2,120
66019-B5010 note	Handle, Side Gate Latch, RH 2011-12 → 2014-07 ended	S201,211 EXT	¥2,120
66019-B5010 note	Handle, Side Gate Latch, RH 2011-12 → 2014-07 ended	S201,211 SPL	¥2,120
66019-B5020 note	Handle, Side Gate Latch, RH 2011-12 → 2014-07 ended	S201,211	¥2,120
66162A — Handle, Side Gate Latch, LH
66019-B5010 note	Handle, Side Gate Latch, LH 2011-12 → 2014-07 ended	S201,211	¥2,120
66019-B5010 note	Handle, Side Gate Latch, LH 2011-12 → 2014-07 ended	S201,211 EXT	¥2,120
66019-B5010 note	Handle, Side Gate Latch, LH 2011-12 → 2014-07 ended	S201,211 SPL	¥2,120
66019-B5020 note	Handle, Side Gate Latch, LH 2011-12 → 2014-07 ended	S201,211	¥2,120
66245 — Protector, Rear Body, NO.3 RH
65717-B5020 note	Protector, Rear Body, NO.3 RH 2011-12 → 2014-07 ended	S201,211	¥540
66246 — Protector, Rear Body, NO.3 LH
65717-B5020 note	Protector, Rear Body, NO.3 LH 2011-12 → 2014-07 ended	S201,211	¥540
66287C — Bracket, Tail Gate Chain, RH
66287-B5020 note	Bracket, Tail Gate Chain, RH 2013-12 → —	S201,211 SPL	¥800
66287-B5020 note	Bracket, Tail Gate Chain, RH 2011-12 → 2013-12 ended	S201,211 EXT	¥800
66287-B5020 note	Bracket, Tail Gate Chain, RH 2011-12 → —	S201,211 SPL	¥800
66287-B5020 note	Bracket, Tail Gate Chain, RH 2011-12 → —	S201,211 SPL	¥800
66287-B5020	Bracket, Tail Gate Chain, RH 2013-12 → —	S201,211 EXT	¥800
66287-B5030 note	Bracket, Tail Gate Chain, RH 2011-12 → 2013-11 ended	S201,211 SPL	¥520
66287-B5030	Bracket, Tail Gate Chain, RH 2011-12 → 2013-11 ended	S201,211 EXT	¥520
66288C — Bracket, Tail Gate Chain, LH
66288-B5010	Bracket, Tail Gate Chain, LH 2011-12 → 2013-11 ended	S201,211 EXT	¥520
66288-B5010 note	Bracket, Tail Gate Chain, LH 2011-12 → 2013-11 ended	S201,211 SPL	¥520
66288-B5020 note	Bracket, Tail Gate Chain, LH 2011-12 → 2013-12 ended	S201,211 EXT	¥800
66288-B5020 note	Bracket, Tail Gate Chain, LH 2011-12 → —	S201,211 SPL	¥800
66288-B5020 note	Bracket, Tail Gate Chain, LH 2011-12 → —	S201,211 SPL	¥800
66288-B5020	Bracket, Tail Gate Chain, LH 2013-12 → —	S201,211 EXT	¥800
66288-B5020 note	Bracket, Tail Gate Chain, LH 2013-12 → —	S201,211 SPL	¥800
66311 — Hook, Rope
66310-97501	Hook, Rope 2011-12 → —	S201,211	¥400
66310-B5010 note	Hook, Rope 2011-12 → —	S201,211	¥400
66310-B5010 note	Hook, Rope 2011-12 → —	S201,211 SPL	¥400
66311E — Hook, Rope
66310-97501	Hook, Rope 2011-12 → —	S201,211	¥400
66310-B5010 note	Hook, Rope 2011-12 → —	S201,211	¥400
66310-B5010 note	Hook, Rope 2011-12 → —	S201,211 SPL	¥400
66332 — Cushion, Rubber
66323-B5010	Cushion, Rubber 2011-12 → 2013-10 ended	S201,211	¥390
66323-B5070	Cushion, Rubber 2013-11 → —	S201,211	¥660

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
