Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

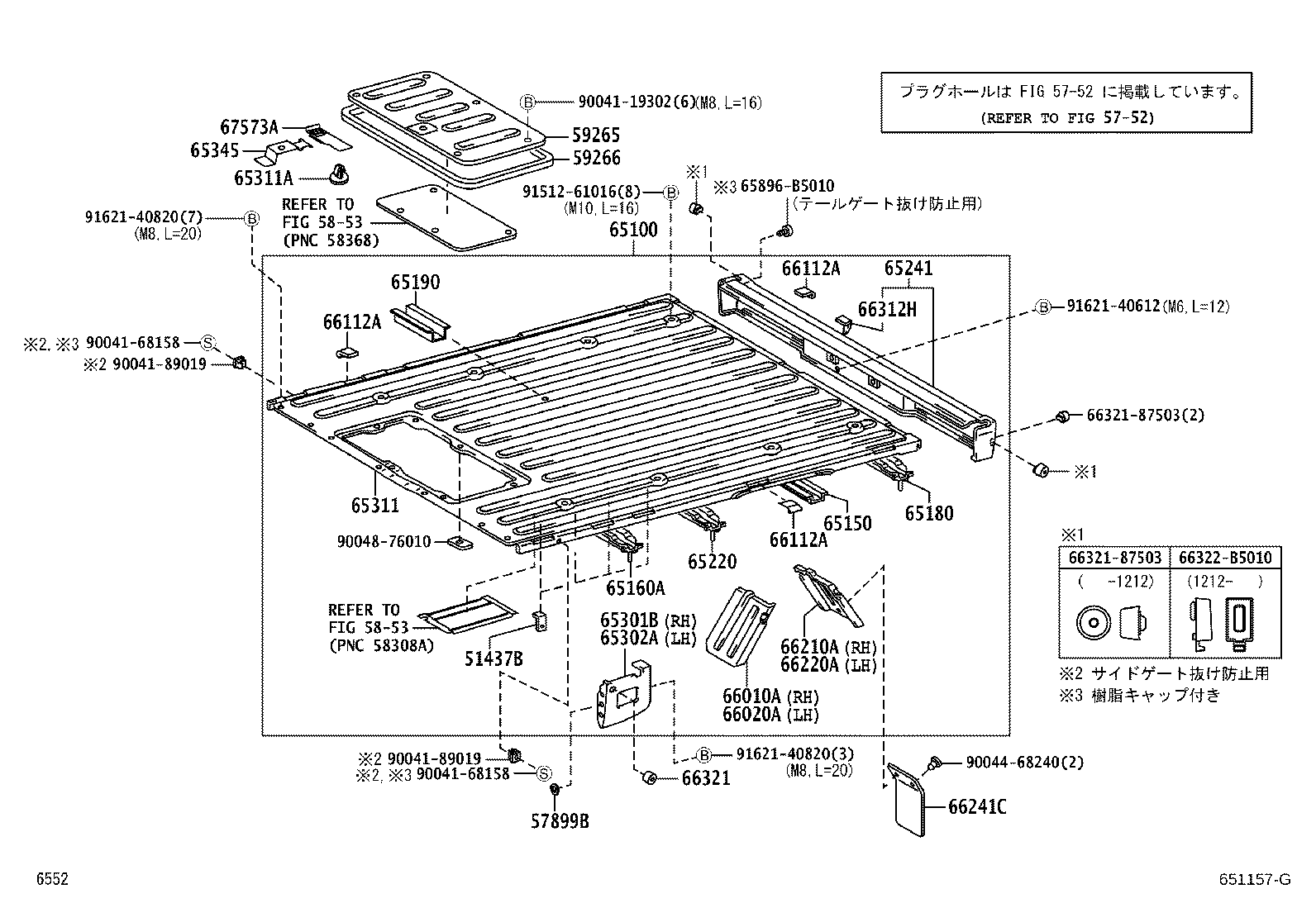

95 parts on this figure

Part number	Description	Fitment	Price
51437B — Bracket, Engine Side Cover, NO.1 LH
51437-97501 note	Bracket, Engine Side Cover, NO.1 LH 2011-12 → 2012-08 ended	S201,211 ATM	¥190
51437-97501 note	Bracket, Engine Side Cover, NO.1 LH 2011-12 → 2012-08 ended	S201,211 ATM	¥190
51437-97501 note	Bracket, Engine Side Cover, NO.1 LH 2011-12 → 2012-08 ended	S201,211 ATM	¥190
51437-97501	Bracket, Engine Side Cover, NO.1 LH 2011-12 → 2012-09 ended	S201,211 MTM	¥190
51437-97501 note	Bracket, Engine Side Cover, NO.1 LH 2011-12 → 2012-08 ended	S201,211 ATM	¥190
51437-B5010 note	Bracket, Engine Side Cover, NO.1 LH 2012-09 → 2012-12 ended	S201 ATM	¥180
51437-B5010 note	Bracket, Engine Side Cover, NO.1 LH 2012-09 → 2012-12 ended	S201 ATM	¥180
51437-B5010	Bracket, Engine Side Cover, NO.1 LH 2012-09 → —	S201,211 MTM	¥180
51437-B5010 note	Bracket, Engine Side Cover, NO.1 LH 2012-09 → —	S201,211 ATM	¥180
51437-B5010 note	Bracket, Engine Side Cover, NO.1 LH 2012-09 → —	S211 ATM	¥180
51437-B5010 note	Bracket, Engine Side Cover, NO.1 LH 2012-09 → —	S201,211 ATM	¥180
51437-B5010 note	Bracket, Engine Side Cover, NO.1 LH 2012-09 → —	S211 ATM	¥180
57899B — Seal, Rear Floor, Rear
57899-B5010	Seal, Rear Floor, Rear 2011-12 → —	S201,211	¥190
59265 — Cover Sub-assy, Engine Service Hole
58401-B5010 note	Cover Sub-assy, Engine Service Hole 2011-12 → —	S201,211	¥14,600
58401-B5010 note	Cover Sub-assy, Engine Service Hole 2011-12 → —	S201,211	¥14,600
58401-B5010 note	Cover Sub-assy, Engine Service Hole 2011-12 → —	S201,211 SPL	¥14,600
58401-B5010 note	Cover Sub-assy, Engine Service Hole 2011-12 → —	S201,211 SPL	¥14,600
66401-97501	Cover Sub-assy, Engine Service Hole 2011-12 → —	S201,211	¥14,600
59266 — Seal, Engine Service Cover, NO.2
59265-B5010	Seal, Engine Service Cover, NO.2 2011-12 → —	S201,211	¥4,590
65100 — Floor Assy, Rear Body
65008-B5091 note	Floor Assy, Rear Body 2011-12 → 2012-12 ended	S201,211	¥188,000
65008-B5091 note	Floor Assy, Rear Body 2011-12 → 2012-12 ended	S201,211	¥188,000
65008-B5092 note	Floor Assy, Rear Body 2012-12 → —	S211 ATM	¥123,000
65008-B5092 note	Floor Assy, Rear Body 2012-12 → —	S201,211	¥123,000
65008-B5101 note	Floor Assy, Rear Body 2011-12 → 2012-12 ended	S201,211	¥188,000
65008-B5101 note	Floor Assy, Rear Body 2011-12 → 2012-12 ended	S201,211	¥188,000
65008-B5101 note	Floor Assy, Rear Body 2011-12 → 2012-12 ended	S201,211	¥188,000
65008-B5101 note	Floor Assy, Rear Body 2011-12 → 2012-12 ended	S201,211	¥188,000
65008-B5102 note	Floor Assy, Rear Body 2012-12 → —	S201,211	¥197,000
65008-B5102 note	Floor Assy, Rear Body 2012-12 → —	S201 MTM;S211 ATM;S211 MTM +1	¥197,000
65008-B5102 note	Floor Assy, Rear Body 2012-12 → —	S201,211	¥197,000
65008-B5102 note	Floor Assy, Rear Body 2012-12 → —	S201 MTM;S211 ATM;S211 MTM +1	¥197,000
65008-B5130	Floor Assy, Rear Body 2011-12 → 2012-12 ended	S201,211	¥192,000
65008-B5131	Floor Assy, Rear Body 2012-12 → —	S201,211	¥123,000
65008-B5420 note	Floor Assy, Rear Body 2012-12 → —	S201 MTM;S211 MTM SPL	¥197,000
65008-B5460 note	Floor Assy, Rear Body 2012-12 → —	S201 MTM;S211 MTM SPL	¥164,000
65150 — Sill Assy, Cross, NO.1
65105-97501	Sill Assy, Cross, NO.1 2011-12 → —	S201,211	¥10,000
65160A — Sill Assy, Cross, NO.2
65102-B5010	Sill Assy, Cross, NO.2 2011-12 → —	S201,211	¥12,800
65180 — Sill Assy, Cross, NO.4
65104-B5010	Sill Assy, Cross, NO.4 2011-12 → —	S201,211	¥14,700
65190 — Sill Assy, Cross, NO.5
65181-97501 note	Sill Assy, Cross, NO.5 2011-12 → 2012-08 ended	S201,211	¥1,930
65181-97501 note	Sill Assy, Cross, NO.5 2011-12 → 2012-08 ended	S201,211	¥1,930
65181-97501 note	Sill Assy, Cross, NO.5 2011-12 → 2012-08 ended	S201,211	¥1,930
65181-97501 note	Sill Assy, Cross, NO.5 2011-12 → 2012-08 ended	S201,211	¥1,930
65181-97501 note	Sill Assy, Cross, NO.5 2011-12 → 2012-08 ended	S201,211	¥1,930
65181-97501 note	Sill Assy, Cross, NO.5 2011-12 → 2012-08 ended	S201,211	¥1,930
65181-B5010 note	Sill Assy, Cross, NO.5 2012-09 → 2014-07 ended	S201 MTM;S211 ATM;S211 MTM +1	¥1,930
65181-B5010 note	Sill Assy, Cross, NO.5 2012-09 → 2014-07 ended	S201 MTM;S211 ATM;S211 MTM +1	¥1,930
65181-B5010 note	Sill Assy, Cross, NO.5 2012-09 → 2014-07 ended	S201,211	¥1,930
65181-B5010 note	Sill Assy, Cross, NO.5 2012-09 → 2012-12 ended	S201 ATM;S211 MTM EXT	¥1,930
65181-B5010 note	Sill Assy, Cross, NO.5 2012-09 → 2014-07 ended	S201 MTM;S211 ATM;S211 MTM +1	¥1,930
65181-B5010 note	Sill Assy, Cross, NO.5 2012-09 → 2014-07 ended	S201,211	¥1,930
65181-B5010 note	Sill Assy, Cross, NO.5 2012-09 → 2014-07 ended	S201 MTM;S211 ATM;S211 MTM +1	¥1,930
65181-B5010 note	Sill Assy, Cross, NO.5 2012-09 → 2012-12 ended	S201 ATM;S211 MTM EXT	¥1,930
65181-B5010 note	Sill Assy, Cross, NO.5 2012-09 → 2012-12 ended	S201 ATM;S211 MTM EXT	¥1,930
65181-B5010 note	Sill Assy, Cross, NO.5 2012-09 → 2012-12 ended	S201 ATM;S211 MTM EXT	¥1,930
65220 — Sill Assy, Cross, NO.4
65104-B5010	Sill Assy, Cross, NO.4 2011-12 → 2014-07 ended	S201,211	¥14,700
65104-B5020 note	Sill Assy, Cross, NO.4 2011-12 → 2014-07 ended	S201,211	¥12,200
65104-B5020 note	Sill Assy, Cross, NO.4 2011-12 → 2014-07 ended	S201 MTM;S211 ATM;S211 MTM +1	¥12,200
65104-B5020 note	Sill Assy, Cross, NO.4 2011-12 → 2014-07 ended	S201 MTM;S211 ATM;S211 MTM +1	¥12,200
65104-B5020 note	Sill Assy, Cross, NO.4 2011-12 → 2014-07 ended	S201 MTM;S211 ATM;S211 MTM +1	¥12,200
65104-B5020 note	Sill Assy, Cross, NO.4 2011-12 → 2014-07 ended	S201 MTM;S211 ATM;S211 MTM +1	¥12,200
65104-B5020 note	Sill Assy, Cross, NO.4 2011-12 → 2014-07 ended	S201,211	¥12,200
65104-B5020 note	Sill Assy, Cross, NO.4 2011-12 → 2012-12 ended	S201 ATM;S211 MTM EXT	¥12,200
65104-B5020 note	Sill Assy, Cross, NO.4 2011-12 → 2012-12 ended	S201 ATM;S211 MTM EXT	¥12,200
65104-B5020 note	Sill Assy, Cross, NO.4 2011-12 → 2012-12 ended	S201 ATM;S211 MTM EXT	¥12,200
65104-B5020 note	Sill Assy, Cross, NO.4 2011-12 → 2012-12 ended	S201 ATM;S211 MTM EXT	¥12,200
65241 — Sill, Rear Cross
65204-B5040 note	Sill, Rear Cross 2011-12 → 2012-12 ended	S201,211	¥26,200
65204-B5060 note	Sill, Rear Cross 2012-12 → 2014-07 ended	S201 MTM;S211 ATM;S211 MTM +1	¥24,000
65204-B5060 note	Sill, Rear Cross 2012-12 → 2014-07 ended	S201 MTM;S211 ATM;S211 MTM +1	¥24,000
65204-B5060 note	Sill, Rear Cross 2012-12 → 2014-07 ended	S201,211	¥24,000
65204-B5060 note	Sill, Rear Cross 2012-12 → 2014-07 ended	S201,211	¥24,000
65204-B5060 note	Sill, Rear Cross 2012-12 → 2014-07 ended	S201 MTM;S211 ATM;S211 MTM +1	¥24,000
65204-B5060 note	Sill, Rear Cross 2012-12 → 2014-07 ended	S201,211	¥24,000
65204-B5070 note	Sill, Rear Cross 2012-12 → 2014-07 ended	S201,211	¥24,000
65204-B5081 note	Sill, Rear Cross 2011-12 → 2012-12 ended	S201,211	¥26,200
65204-B5081 note	Sill, Rear Cross 2011-12 → 2012-12 ended	S201,211	¥26,200
65204-B5081 note	Sill, Rear Cross 2011-12 → 2012-12 ended	S201,211	¥26,200
65204-B5081 note	Sill, Rear Cross 2011-12 → 2012-12 ended	S201,211	¥26,200
65204-B5081 note	Sill, Rear Cross 2011-12 → 2012-12 ended	S201,211	¥26,200
65204-B5081 note	Sill, Rear Cross 2011-12 → 2012-12 ended	S201,211	¥26,200
65301B — Panel Sub-assy, Floor Front Coner, RH
65301-97501	Panel Sub-assy, Floor Front Coner, RH 2011-12 → —	S201,211	¥9,100
65302A — Panel Sub-assy, Floor Front Coner, LH
65302-97502	Panel Sub-assy, Floor Front Coner, LH 2011-12 → —	S201,211	¥9,100
65311 — Panel, Floor, Center
65311-B5101	Panel, Floor, Center 2011-12 → —	S201,211	¥56,800
65311A — Plug, Hole(FOR REAR BODY FLOOR)
90048-71101	Plug, Hole(FOR REAR BODY FLOOR) 2011-12 → 2014-07 ended	S201,211	¥110
65345 — Plate, Floor FR Corner, RH
65345-B5010	Plate, Floor FR Corner, RH 2011-12 → —	S201,211	¥430
66010A — Fender Assy, Rear NO.2 RH
65316-97501	Fender Assy, Rear NO.2 RH 2011-12 → —	S201,211	¥3,610
66020A — Fender Assy, Rear NO.2 LH
65315-97502	Fender Assy, Rear NO.2 LH 2011-12 → —	S201,211	¥3,610
66112A — Hinge, Gate Female
66112-87507	Hinge, Gate Female 2011-12 → 2012-10 ended	S201,211	¥610
66112-87507	Hinge, Gate Female 2012-11 → 2013-12 ended	S201,211	¥610
66112-B5040	Hinge, Gate Female 2013-12 → —	S201,211	¥1,510
66210A — Fender Assy, Rear NO.1 RH
65315-97502	Fender Assy, Rear NO.1 RH 2011-12 → —	S201,211	¥3,610
66220A — Fender Assy, Rear NO.1 LH
65316-97501	Fender Assy, Rear NO.1 LH 2011-12 → —	S201,211	¥3,610
66241C — Buffle, Rubber
66241-97501	Buffle, Rubber 2011-12 → —	S201,211	¥640
66312H — Hook, Rope
66313-87503	Hook, Rope 2011-12 → —	S201,211	¥490
66321 — Bumper, Gate Rubber
66321-87503	Bumper, Gate Rubber 2011-12 → —	S201,211	¥600
67573A — Plate, Flange Set
67573-B5010	Plate, Flange Set 2011-12 → —	S201,211	¥440

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
