Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

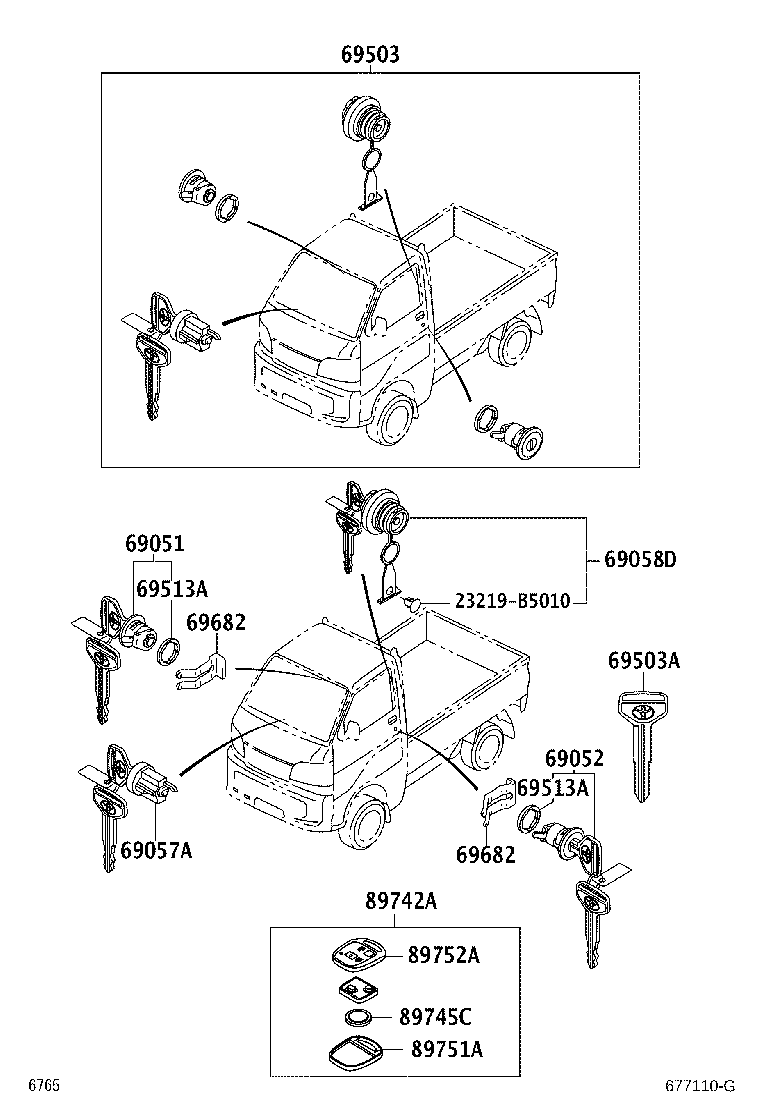

12 parts on this figure

Part number	Description	Fitment	Price
69051 — Cylinder & Key Set, Door Lock, RH
69051-B5080	Cylinder & Key Set, Door Lock, RH 2011-12 → —	S201,211	¥4,230
69052 — Cylinder & Key Set, Door Lock, LH
69052-B5080	Cylinder & Key Set, Door Lock, LH 2011-12 → —	S201,211	¥4,230
69057A — Cylinder & Key Set, Ignition Switch Lock
69057-B5080	Cylinder & Key Set, Ignition Switch Lock 2011-12 → —	S201,211	¥5,700
69058D — Cylinder & Key Set, Fuel Tank Filler
69058-B5050	Cylinder & Key Set, Fuel Tank Filler 2011-12 → —	S201,211	¥6,400
69503 — Cylinder Set, Lock
69005-B5250	Cylinder Set, Lock 2011-12 → —	S201,211	¥15,400
69503A — Key, Blank
69515-B5120 note	Key, Blank 2011-12 → 2014-07 ended	S201,211	¥900
69513A — Pad, Door Cylinder
69513-B5010	Pad, Door Cylinder 2011-12 → —	S201,211	¥190
69682 — Retainer, Lock Cylinder
69682-97202	Retainer, Lock Cylinder 2011-12 → —	S201,211	¥320
89742A — Transmitter, Door Control
89742-B5091	Transmitter, Door Control 2011-12 → 2014-07 ended	S201,211 EXT	¥8,400
89745C — Battery, Transmitter
89745-B1020 note	Battery, Transmitter 2011-12 → 2014-07 ended	S201,211 EXT	¥400
89751A — Cover, Transmitter Housing
89751-B5030	Cover, Transmitter Housing 2011-12 → —	S201,211 EXT	¥780
89752A — Case, Transmitter Housing
89752-B5030	Case, Transmitter Housing 2011-12 → —	S201,211 EXT	¥1,480

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
