Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

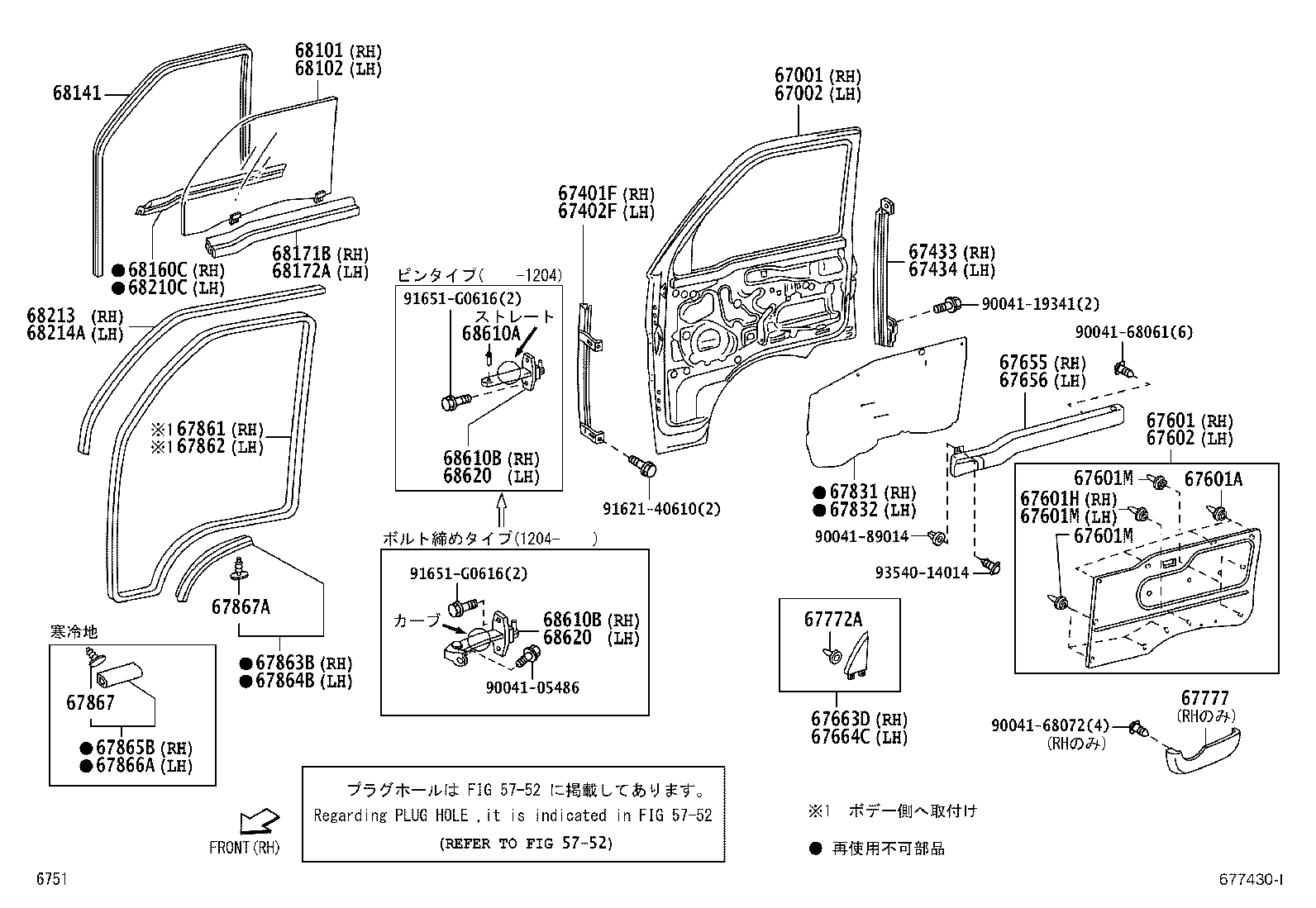

80 parts on this figure

Part number	Description	Fitment	Price
67001 — Panel Sub-assy, Front Door, RH
67001-B5061	Panel Sub-assy, Front Door, RH 2011-12 → 2012-03 ended	S201,211 SPL	¥37,000
67001-B5062	Panel Sub-assy, Front Door, RH 2012-04 → —	S201,211 SPL	¥59,200
67001-B5071	Panel Sub-assy, Front Door, RH 2011-12 → 2012-03 ended	S201,211 EXT	¥37,000
67001-B5071 note	Panel Sub-assy, Front Door, RH 2011-12 → 2012-03 ended	S201,211 SPL	¥37,000
67001-B5072	Panel Sub-assy, Front Door, RH 2012-04 → —	S201,211 EXT	¥59,200
67001-B5072 note	Panel Sub-assy, Front Door, RH 2012-04 → —	S201,211 SPL	¥59,200
67002 — Panel Sub-assy, Front Door, LH
67002-B5031	Panel Sub-assy, Front Door, LH 2011-12 → 2012-03 ended	S201,211 SPL	¥37,000
67002-B5032	Panel Sub-assy, Front Door, LH 2012-04 → —	S201,211 SPL	¥59,200
67002-B5041	Panel Sub-assy, Front Door, LH 2011-12 → 2012-03 ended	S201,211 EXT	¥37,000
67002-B5041 note	Panel Sub-assy, Front Door, LH 2011-12 → 2012-03 ended	S201,211 SPL	¥37,000
67002-B5042	Panel Sub-assy, Front Door, LH 2012-04 → —	S201,211 EXT	¥59,200
67002-B5042 note	Panel Sub-assy, Front Door, LH 2012-04 → —	S201,211 SPL	¥59,200
67401F — Frame Sub-assy, Front Door, Front Lower RH
67401-B5030	Frame Sub-assy, Front Door, Front Lower RH 2011-12 → —	S201,211	¥1,920
67402F — Frame Sub-assy, Front Door, Front Lower LH
67402-B5030	Frame Sub-assy, Front Door, Front Lower LH 2011-12 → —	S201,211	¥1,920
67433 — Frame, Front Door Window, Rear Lower RH
67403-87504	Frame, Front Door Window, Rear Lower RH 2011-12 → —	S201,211	¥2,120
67434 — Frame, Front Door Window, Rear Lower LH
67404-87504	Frame, Front Door Window, Rear Lower LH 2011-12 → —	S201,211	¥2,120
67601 — Board Sub-assy, Front Door Trim, RH
67610-87569-B0 note	Board Sub-assy, Front Door Trim, RH 2011-12 → —	S201,211 SPL	¥10,100
67610-87585-B0 note	Board Sub-assy, Front Door Trim, RH 2011-12 → 2013-03 ended	S201,211 SPL	¥5,100
67610-B5011-B1 note	Board Sub-assy, Front Door Trim, RH 2011-12 → 2013-03 ended	S201,211 EXT	¥6,100
67610-B5012-B1 note	Board Sub-assy, Front Door Trim, RH 2013-04 → —	S201,211 EXT	¥12,900
67610-B5210-B0 note	Board Sub-assy, Front Door Trim, RH 2013-04 → —	S201,211 SPL	¥12,100
67601A — Retainer(FOR FRONT DOOR TRIM BOARD)
67771-87204	Retainer(FOR FRONT DOOR TRIM BOARD) 2011-12 → —	S201,211	¥270
67601H — Retainer, Door Trim, RH
67771-B2010 note	Retainer, Door Trim, RH 2013-04 → —	S201,211 SPL	¥170
67771-B2010	Retainer, Door Trim, RH 2013-04 → —	S201,211 EXT	¥170
67601M — Retainer, Door Trim, NO.2
67771-97204	Retainer, Door Trim, NO.2 2011-12 → 2013-03 ended	S201,211 EXT	¥370
67771-97204	Retainer, Door Trim, NO.2 2011-12 → —	S201,211 SPL	¥370
67771-97204	Retainer, Door Trim, NO.2 2013-04 → —	S201,211 EXT	¥370
67771-97204 note	Retainer, Door Trim, NO.2 2013-04 → —	S201,211 SPL	¥370
67602 — Board Sub-assy, Front Door Trim, LH
67620-87569-B0 note	Board Sub-assy, Front Door Trim, LH 2011-12 → —	S201,211 SPL	¥10,100
67620-87572-B0 note	Board Sub-assy, Front Door Trim, LH 2011-12 → —	S201,211 SPL	¥10,000
67620-B5011-B1 note	Board Sub-assy, Front Door Trim, LH 2011-12 → —	S201,211 EXT	¥11,500
67655 — Garnish, Front Door Trim, RH
67615-87505-B0 note	Garnish, Front Door Trim, RH 2011-12 → —	S201,211 EXT	¥4,280
67615-87505-B0 note	Garnish, Front Door Trim, RH 2011-12 → —	S201,211 SPL	¥4,280
67656 — Garnish, Door Trim, LH
67616-87503-B0 note	Garnish, Door Trim, LH 2011-12 → —	S201,211 EXT	¥4,280
67616-87503-B0 note	Garnish, Door Trim, LH 2011-12 → —	S201,211 SPL	¥4,280
67663D — Garnish, Door Frame, RH
67663-87502	Garnish, Door Frame, RH 2011-12 → —	S201,211 EXT	¥1,520
67663-87502 note	Garnish, Door Frame, RH 2011-12 → —	S201,211 SPL	¥1,520
67664C — Garnish, Door Frame, LH
67664-87502	Garnish, Door Frame, LH 2011-12 → —	S201,211 EXT	¥1,520
67664-87502 note	Garnish, Door Frame, LH 2011-12 → —	S201,211 SPL	¥1,520
67772A — Cap, Front Door Trim Retainer
67772-87701 note	Cap, Front Door Trim Retainer 2011-12 → —	S201,211 SPL	¥180
67772-87701	Cap, Front Door Trim Retainer 2011-12 → —	S201,211 EXT	¥180
67777 — Pocket, Front Door Trim, RH
67777-87504-B0 note	Pocket, Front Door Trim, RH 2011-12 → —	S201,211 EXT	¥2,890
67777-87504-B0 note	Pocket, Front Door Trim, RH 2011-12 → —	S201,211 SPL	¥2,890
67831 — Cover, Front Door Service Hole, RH
67831-B5061	Cover, Front Door Service Hole, RH 2011-12 → —	S201,211	¥600
67832 — Cover, Front Door Service Hole, LH
67832-B5011	Cover, Front Door Service Hole, LH 2011-12 → —	S201,211	¥600
67861 — Weatherstrip, Front Door, RH
67861-87510	Weatherstrip, Front Door, RH 2011-12 → 2012-06 ended	S201,211	¥6,200
67861-B5020	Weatherstrip, Front Door, RH 2012-07 → —	S201,211	¥9,100
67862 — Weatherstrip, Front Door, LH
67861-87510	Weatherstrip, Front Door, LH 2011-12 → 2012-06 ended	S201,211	¥6,200
67861-B5020	Weatherstrip, Front Door, LH 2012-07 → —	S201,211	¥9,100
67863B — Weatherstrip, Front Door, NO.2 RH
67863-87504	Weatherstrip, Front Door, NO.2 RH 2011-12 → —	S201,211	¥1,380
67863-B5010 note	Weatherstrip, Front Door, NO.2 RH 2011-12 → —	S201,211	¥2,320
67864B — Weatherstrip, Front Door, NO.2 LH
67863-87504	Weatherstrip, Front Door, NO.2 LH 2011-12 → —	S201,211	¥1,380
67863-B5010 note	Weatherstrip, Front Door, NO.2 LH 2011-12 → —	S201,211	¥2,320
67865B — Weatherstrip, Front Door, NO.3 RH
67865-B5010 note	Weatherstrip, Front Door, NO.3 RH 2011-12 → —	S201,211	¥1,170
67866A — Weatherstrip, Front Door, NO.3 LH
67865-B5010 note	Weatherstrip, Front Door, NO.3 LH 2011-12 → —	S201,211	¥1,170
67867 — Clip, Door Weatherstrip
67867-87201 note	Clip, Door Weatherstrip 2011-12 → —	S201,211	¥170
67867A — Clip, Door Weatherstrip(FOR FRONT DOOR)
67868-87201 note	Clip, Door Weatherstrip(FOR FRONT DOOR) 2011-12 → —	S201,211	¥180
67868-87201	Clip, Door Weatherstrip(FOR FRONT DOOR) 2011-12 → —	S201,211	¥180
68101 — Glass Sub-assy, Front Door, RH
68101-B5020 note	Glass Sub-assy, Front Door, RH 2011-12 → 2012-02 ended	S201,211	¥9,900
68101-B5021 note	Glass Sub-assy, Front Door, RH 2012-03 → —	S201,211	¥16,500
68102 — Glass Sub-assy, Front Door, LH
68102-B5020 note	Glass Sub-assy, Front Door, LH 2011-12 → 2012-02 ended	S201,211	¥9,900
68102-B5021 note	Glass Sub-assy, Front Door, LH 2012-03 → —	S201,211	¥16,500
68141 — Run, Front Door Glass
68141-B5020	Run, Front Door Glass 2011-12 → —	S201,211	¥6,100
68160C — Weatherstrip Assy, Front Door Glass, Outer RH
68161-B5050	Weatherstrip Assy, Front Door Glass, Outer RH 2011-12 → —	S201,211	¥3,920
68171B — Weatherstrip, Front Door Glass, Inner RH
68171-B5060	Weatherstrip, Front Door Glass, Inner RH 2011-12 → —	S201,211 SPL	¥2,480
68171-B5070	Weatherstrip, Front Door Glass, Inner RH 2011-12 → —	S201,211 EXT	¥2,680
68171-B5070 note	Weatherstrip, Front Door Glass, Inner RH 2011-12 → —	S201,211 SPL	¥2,680
68172A — Weatherstrip, Front Door Glass, Inner LH
68172-B5060	Weatherstrip, Front Door Glass, Inner LH 2011-12 → —	S201,211 SPL	¥2,480
68172-B5070	Weatherstrip, Front Door Glass, Inner LH 2011-12 → —	S201,211 EXT	¥2,680
68172-B5070 note	Weatherstrip, Front Door Glass, Inner LH 2011-12 → —	S201,211 SPL	¥2,680
68210C — Weatherstrip Assy, Front Door Glass, Outer LH
68162-B5050	Weatherstrip Assy, Front Door Glass, Outer LH 2011-12 → —	S201,211	¥3,920
68213 — Weatherstrip, Front Door Window, Outer RH
68213-97505	Weatherstrip, Front Door Window, Outer RH 2011-12 → —	S201,211	¥3,400
68214A — Weatherstrip, Front Door Window, Outer LH
68214-97505	Weatherstrip, Front Door Window, Outer LH 2011-12 → —	S201,211	¥3,400
68610A — Pin(FOR FRONT DOOR CHECK)
68617-97201 note	Pin(FOR FRONT DOOR CHECK) 2011-12 → 2012-04 ended	S201,211	¥790
68610B — Check Assy, Front Door, RH
68610-87502 note	Check Assy, Front Door, RH 2011-12 → 2012-04 ended	S201,211	¥2,990
68610-B5020 note	Check Assy, Front Door, RH 2012-04 → 2013-12 ended	S201,211	¥1,820
68610-B5021 note	Check Assy, Front Door, RH 2014-01 → 2014-07 ended	S201,211	¥2,990
68620 — Check Assy, Front Door, LH
68610-87502 note	Check Assy, Front Door, LH 2011-12 → 2012-04 ended	S201,211	¥2,990
68610-B5020 note	Check Assy, Front Door, LH 2012-04 → 2013-12 ended	S201,211	¥1,820
68610-B5021 note	Check Assy, Front Door, LH 2014-01 → 2014-07 ended	S201,211	¥2,990

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
