Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

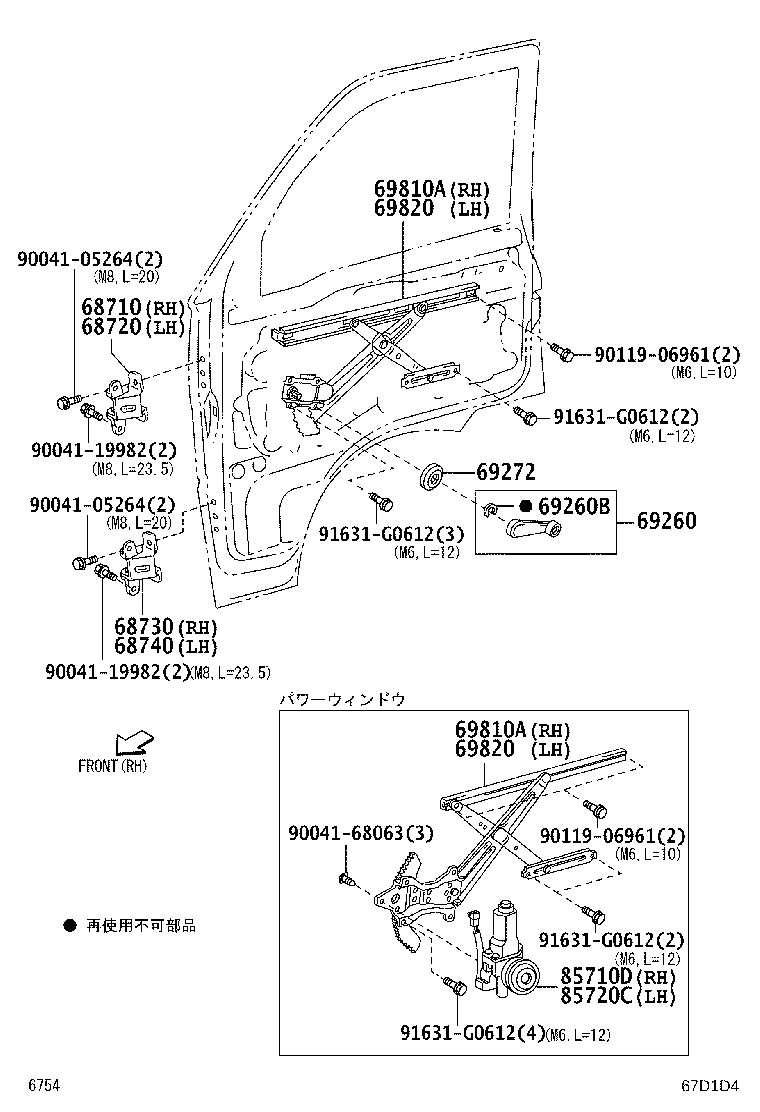

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

15 parts on this figure

Part number	Description	Fitment	Price
68710 — Hinge Assy, Front Door, Upper RH
68710-B5030	Hinge Assy, Front Door, Upper RH 2011-12 → —	S201,211	¥3,970
68720 — Hinge Assy, Front Door, Upper LH
68720-B5010	Hinge Assy, Front Door, Upper LH 2011-12 → —	S201,211	¥3,970
68730 — Hinge Assy, Front Door, Lower RH
68710-B5030	Hinge Assy, Front Door, Lower RH 2011-12 → —	S201,211	¥3,970
68740 — Hinge Assy, Front Door, Lower LH
68720-B5010	Hinge Assy, Front Door, Lower LH 2011-12 → —	S201,211	¥3,970
69260 — Handle Assy, Front Door Window Regulator
69260-87103-B0 note	Handle Assy, Front Door Window Regulator 2011-12 → —	S201,211 SPL	¥920
69260B — Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
90520-01002	Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE) 2011-12 → 2014-07 ended	S201,211 SPL	¥180
69272 — Plate, Front Door Regulator Inside Handle
69285-87201	Plate, Front Door Regulator Inside Handle 2011-12 → —	S201,211 SPL	¥180
69810A — Regulator Assy, Front Door Window, RH
69801-87502 note	Regulator Assy, Front Door Window, RH 2011-12 → 2012-01 ended	S201,211 EXT	¥5,900
69801-B5020 note	Regulator Assy, Front Door Window, RH 2012-01 → 2014-07 ended	S201,211 EXT	¥8,300
69810-B5070 note	Regulator Assy, Front Door Window, RH 2011-12 → 2014-07 ended	S201,211 SPL	¥8,300
69820 — Regulator Assy, Front Door Window, LH
69802-87502 note	Regulator Assy, Front Door Window, LH 2011-12 → 2012-01 ended	S201,211 EXT	¥5,900
69802-B5020 note	Regulator Assy, Front Door Window, LH 2012-01 → 2014-07 ended	S201,211 EXT	¥8,300
69820-B5050 note	Regulator Assy, Front Door Window, LH 2011-12 → 2014-07 ended	S201,211 SPL	¥8,300
85710D — Motor Assy, Power Window Regulator, RH
85710-87502	Motor Assy, Power Window Regulator, RH 2011-12 → —	S201,211 EXT	¥23,900
85720C — Motor Assy, Power Window Regulator, LH
85720-87502	Motor Assy, Power Window Regulator, LH 2011-12 → —	S201,211 EXT	¥23,900

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
