Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

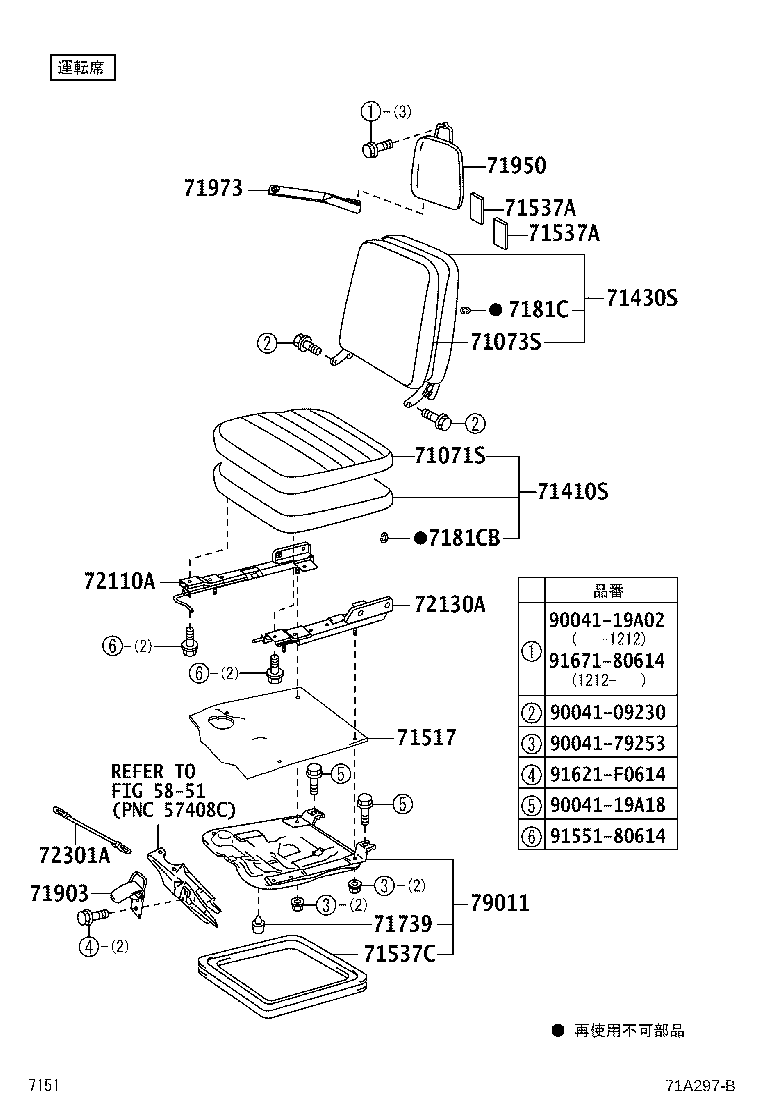

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

26 parts on this figure

Part number	Description	Fitment	Price
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-B5010-B0 note	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) 2011-12 → —	S201,211 SPL	¥14,800
71071-B5130-B2 note	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) 2011-12 → —	S201,211 EXT	¥15,500
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-B5010-B0 note	Cover, Front Seatback, RH(FOR SEPARATE TYPE) 2011-12 → —	S201,211 SPL	¥16,000
71073-B5160-B2 note	Cover, Front Seatback, RH(FOR SEPARATE TYPE) 2011-12 → —	S201,211 EXT	¥16,900
71410S — Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71410-B5010-B0 note	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) 2011-12 → —	S201,211 SPL	¥15,800
71410-B5020-B0 note	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) 2011-12 → —	S201,211 SPL	¥15,800
71410-B5150-B2 note	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) 2011-12 → —	S201,211 EXT	¥16,600
71430S — Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71430-B5010-B0 note	Back Assy, Front Seat, RH(FOR SEPARATE TYPE) 2011-12 → —	S201,211 SPL	¥22,600
71430-B5180-B2 note	Back Assy, Front Seat, RH(FOR SEPARATE TYPE) 2011-12 → —	S201,211 EXT	¥23,700
71517 — Cloth, Front Seat Cushion Under
58521-B5070-B1 note	Cloth, Front Seat Cushion Under 2011-12 → 2014-07 ended	S201 EXT;S211 ATM;S201 ATM +3	¥3,660
58521-B5080-B1 note	Cloth, Front Seat Cushion Under 2011-12 → 2014-07 ended	S201 EXT;S211 ATM;S201 ATM +3	¥3,090
71537A — Protector, Front Seat Cushion
47131-B5050	Protector, Front Seat Cushion 2011-12 → —	S201,211	¥170
71537C — Protector, Front Seat Cushion Edge, RH
71945-97501	Protector, Front Seat Cushion Edge, RH 2011-12 → —	S201,211	¥3,610
71739 — Cushion, Seat Support
71739-B5010	Cushion, Seat Support 2011-12 → —	S201,211	¥170
7181C — Ring, Hog, Small (FOR FRONT SEATBACK)
71812-87201	Ring, Hog, Small (FOR FRONT SEATBACK) 2011-12 → 2014-07 ended	S201,211	¥110
7181CB — Ring, Hog, Small (FOR FRONT SEAT CUSHION)
71812-87201	Ring, Hog, Small (FOR FRONT SEAT CUSHION) 2011-12 → 2014-07 ended	S201,211	¥110
71903 — Catch Sub-assy, Seat Cushion, Front
71370-87501	Catch Sub-assy, Seat Cushion, Front 2011-12 → 2014-07 ended	S201,211	¥1,400
71950 — Headrest Assy, Front Seat
71910-B5031-B0 note	Headrest Assy, Front Seat 2011-12 → 2012-12 ended	S201,211 SPL	¥10,800
71910-B5032-B0 note	Headrest Assy, Front Seat 2012-12 → —	S201,211 SPL	¥8,500
71910-B5091-B1 note	Headrest Assy, Front Seat 2011-12 → 2012-12 ended	S201,211 EXT	¥10,800
71910-B5092-B1 note	Headrest Assy, Front Seat 2012-12 → —	S201,211 EXT	¥8,500
71973 — Band, Engine Service Hole Cover Support
58936-B5030 note	Band, Engine Service Hole Cover Support 2011-12 → —	S201,211	¥1,380
72110A — Track Assy, Front Seat, Outer RH
72110-B5010	Track Assy, Front Seat, Outer RH 2011-12 → —	S201,211	¥10,300
72130A — Track Assy, Front Seat, Inner RH
72130-B5010	Track Assy, Front Seat, Inner RH 2011-12 → —	S201,211	¥10,300
72301A — Wire Sub-assy, Seat Track Equalizing, RH
72301-97501	Wire Sub-assy, Seat Track Equalizing, RH 2011-12 → —	S201,211	¥350
79011 — Cover Sub-assy, NO.1 Seat Cushion, RH
58710-97501	Cover Sub-assy, NO.1 Seat Cushion, RH 2011-12 → —	S201,211	¥13,000

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
