Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

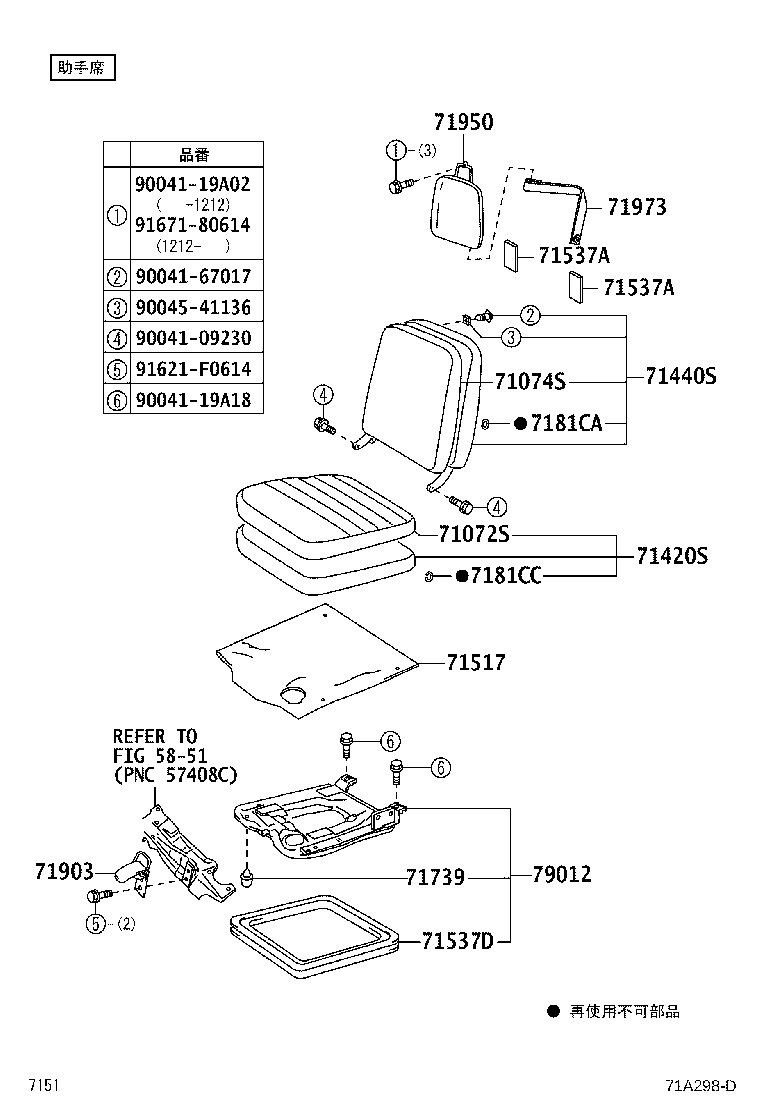

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) | ||||
| 71072-B5010-B0 note |
Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2011-12 → —
|
S201,211 SPL | ¥14,800 | |
| 71072-B5140-B2 note |
Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2011-12 → —
|
S201,211 EXT | ¥15,500 | |
| 71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE) | ||||
| 71074-B5080-B0 note |
Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2011-12 → —
|
S201,211 SPL | ¥16,000 | |
| 71074-B5140-B2 note |
Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2011-12 → —
|
S201,211 EXT | ¥14,000 | |
| 71420S — Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) | ||||
| 71420-B5010-B0 note |
Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2011-12 → —
|
S201,211 MTM SPL | ¥15,800 | |
| 71420-B5070-B1 note |
Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2011-12 → —
|
S201,211 ATM SPL | ¥16,600 | |
| 71420-B5160-B2 note |
Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2011-12 → —
|
S201,211 EXT | ¥16,600 | |
| 71440S — Back Assy, Front Seat, LH(FOR SEPARATE TYPE) | ||||
| 71440-B5010-B0 note |
Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2011-12 → —
|
S201,211 SPL | ¥22,600 | |
| 71440-B5170-B2 note |
Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2011-12 → —
|
S201,211 EXT | ¥23,700 | |
| 71517 — Cloth, Front Seat Cushion Under | ||||
| 58521-B5070-B1 note |
Cloth, Front Seat Cushion Under
2011-12 → 2014-07
ended
|
S201 EXT;S211 ATM;S201 ATM +3 | ¥3,660 | |
| 58521-B5080-B1 note |
Cloth, Front Seat Cushion Under
2011-12 → 2014-07
ended
|
S201 EXT;S211 ATM;S201 ATM +3 | ¥3,090 | |
| 71537A — Protector, Front Seat Cushion | ||||
| 47131-B5050 |
Protector, Front Seat Cushion
2011-12 → —
|
S201,211 | ¥170 | |
| 71537D — Protector, Front Seat Cushion Edge, LH | ||||
| 71945-97501 |
Protector, Front Seat Cushion Edge, LH
2011-12 → —
|
S201,211 | ¥3,610 | |
| 71739 — Cushion, Seat Support | ||||
| 71739-B5010 |
Cushion, Seat Support
2011-12 → —
|
S201,211 | ¥170 | |
| 7181CA — Ring, Hog, Small (FOR FRONT SEATBACK) | ||||
| 71812-87201 |
Ring, Hog, Small (FOR FRONT SEATBACK)
2011-12 → 2014-07
ended
|
S201,211 | ¥110 | |
| 7181CC — Ring, Hog, Small (FOR FRONT SEAT CUSHION) | ||||
| 71812-87201 |
Ring, Hog, Small (FOR FRONT SEAT CUSHION)
2011-12 → 2014-07
ended
|
S201,211 | ¥110 | |
| 71903 — Catch Sub-assy, Seat Cushion, Front | ||||
| 71370-87501 |
Catch Sub-assy, Seat Cushion, Front
2011-12 → 2014-07
ended
|
S201,211 | ¥1,400 | |
| 71950 — Headrest Assy, Front Seat | ||||
| 71910-B5031-B0 note |
Headrest Assy, Front Seat
2011-12 → 2012-12
ended
|
S201,211 SPL | ¥10,800 | |
| 71910-B5032-B0 note |
Headrest Assy, Front Seat
2012-12 → —
|
S201,211 SPL | ¥8,500 | |
| 71910-B5091-B1 note |
Headrest Assy, Front Seat
2011-12 → 2012-12
ended
|
S201,211 EXT | ¥10,800 | |
| 71910-B5092-B1 note |
Headrest Assy, Front Seat
2012-12 → —
|
S201,211 EXT | ¥8,500 | |
| 71973 — Band, Engine Service Hole Cover Support | ||||
| 58936-B5030 note |
Band, Engine Service Hole Cover Support
2011-12 → —
|
S201,211 | ¥1,380 | |
| 79012 — Cover Sub-assy, NO.1 Seat Cushion, LH | ||||
| 58420-B5040 |
Cover Sub-assy, NO.1 Seat Cushion, LH
2011-12 → 2014-07
ended
|
S201,211 | ¥13,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
