Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

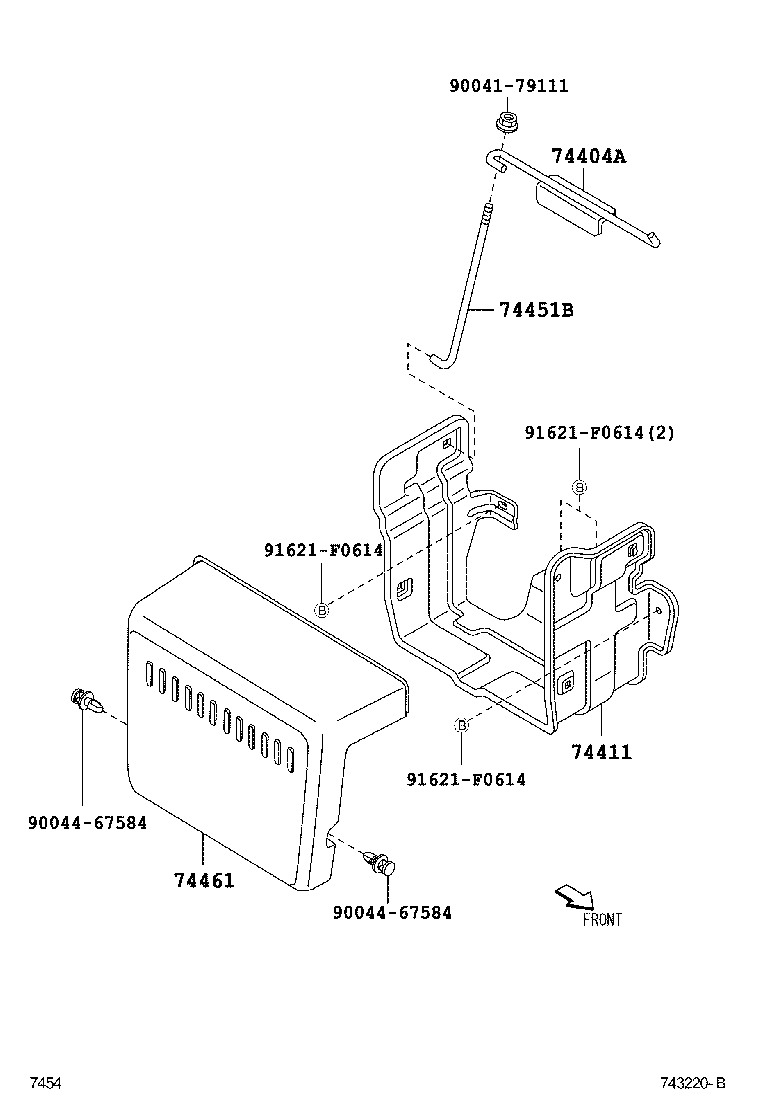

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74404A — Clamp Sub-assy, Battery | ||||
| 74404-97502 |
Clamp Sub-assy, Battery
2011-12 → —
|
S201,211 | ¥1,100 | |
| 74411 — Carrier, Battery | ||||
| 74413-97501 |
Carrier, Battery
2011-12 → 2012-10
ended
|
S201,211 | ¥4,120 | |
| 74413-B5010 note |
Carrier, Battery
2011-12 → 2012-10
ended
|
S201,211 | ¥4,120 | |
| 74413-B5011 note |
Carrier, Battery
2012-11 → —
|
S201,211 | ¥6,700 | |
| 74413-B5030 |
Carrier, Battery
2012-11 → —
|
S201,211 | ¥6,700 | |
| 74451B — Bolt, Battery Clamp | ||||
| 74451-87509 |
Bolt, Battery Clamp
2011-12 → —
|
S201,211 | ¥470 | |
| 74461 — Cover, Battery | ||||
| 74405-B5060 |
Cover, Battery
2011-12 → —
|
S201,211 | ¥3,400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
