Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

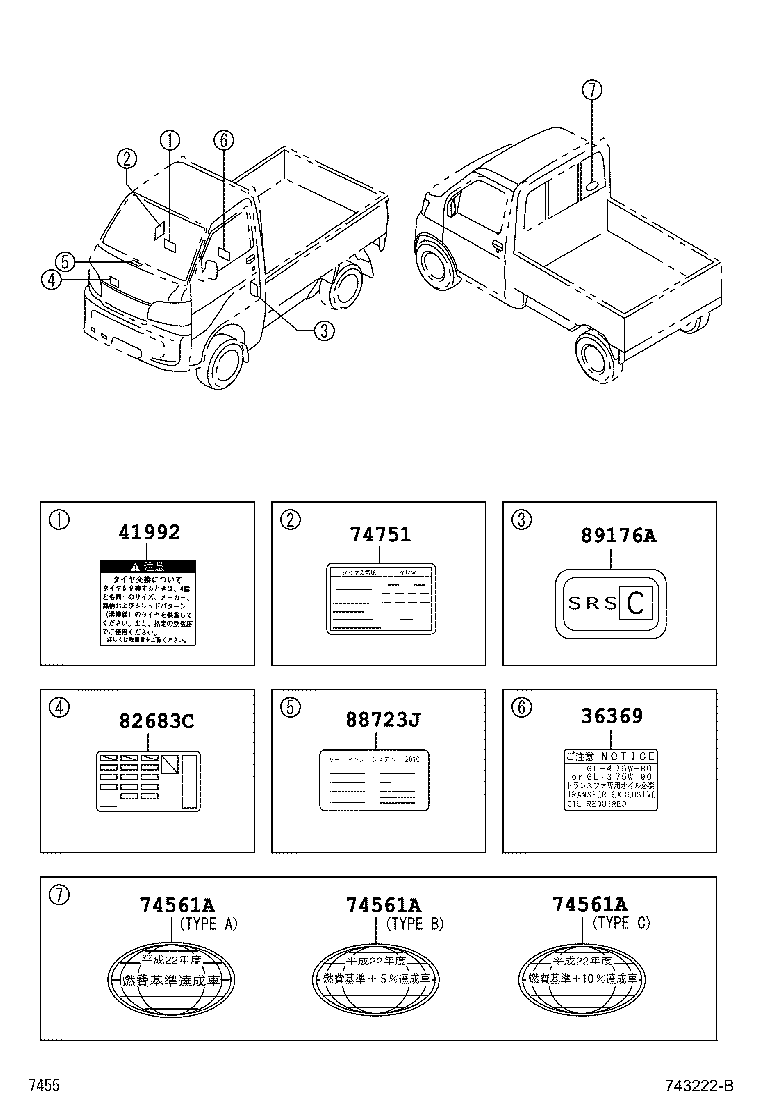

Exploded illustration 743222B

12 parts on this figure

Part number	Description	Fitment	Price
36369 — Label, Transfer Information
36369-B4010	Label, Transfer Information 2011-12 → 2014-07 ended	S211 ATM	¥180
41992 — Label, Differential Notice
41992-33010	Label, Differential Notice 2011-12 → —	S211	¥90
74561A — Label, Fuel Consumption Information
75459-B2050 note	Label, Fuel Consumption Information 2011-12 → 2012-04 ended	S211 MTM	¥220
75459-B2060 note	Label, Fuel Consumption Information 2011-12 → 2012-04 ended	S201 MTM;S211 ATM	¥220
75459-B2070 note	Label, Fuel Consumption Information 2011-12 → 2012-04 ended	S201 ATM	¥220
74751 — Label, Tire Pressure Information
42661-97516	Label, Tire Pressure Information 2011-12 → —	S201,211	¥250
42661-B5090 note	Label, Tire Pressure Information 2011-12 → —	S211	¥250
82683C — Label, Fuse Block Notice
82683-B5020	Label, Fuse Block Notice 2011-12 → —	S201,211	¥240
88723J — Label, Cooler Service Caution, NO.2
88733-B2010	Label, Cooler Service Caution, NO.2 2011-12 → —	S201,211 EXT	¥200
88733-B2010 note	Label, Cooler Service Caution, NO.2 2011-12 → —	S201,211 SPL	¥200
89176A — Label, Airbag Deployment Information
89176-97501 note	Label, Airbag Deployment Information 2011-12 → —	S201,211	¥270
89176-97501 note	Label, Airbag Deployment Information 2011-12 → —	S201,211	¥270

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
