Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

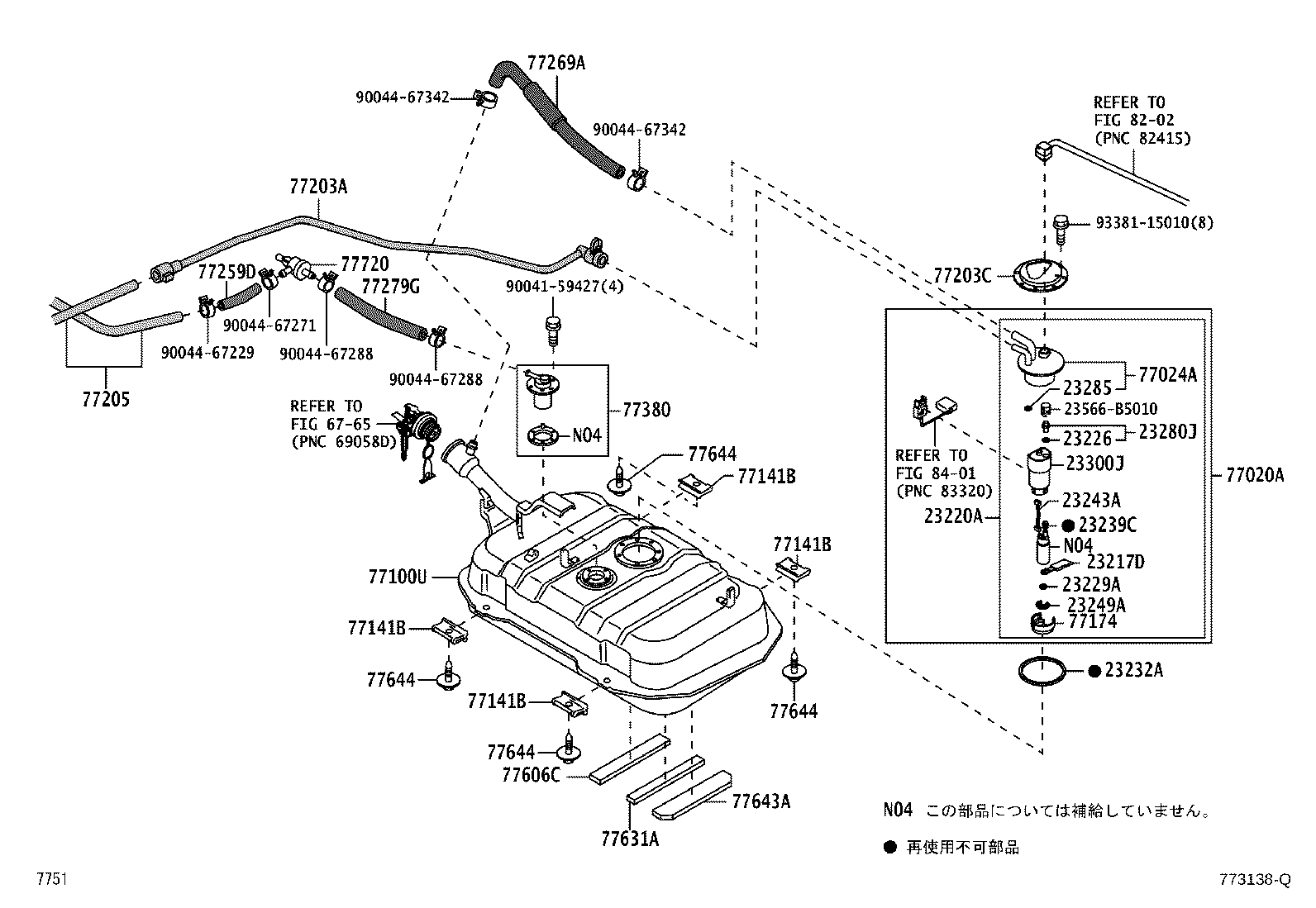

32 parts on this figure

Part number	Description	Fitment	Price
23217D — Filter, Fuel Pump
23217-97501	Filter, Fuel Pump 2011-12 → 2012-01 ended	KFVE S201,211	¥550
23217-B5010	Filter, Fuel Pump 2012-01 → —	KFVE S201,211	¥640
23220A — Pump Assy, Fuel W/Filter
23220-B5020	Pump Assy, Fuel W/Filter 2011-12 → 2012-01 ended	KFVE S201,211	¥29,000
23220-B5060	Pump Assy, Fuel W/Filter 2012-01 → —	KFVE S201,211	¥36,300
23226 — Ring, O(FOR FUEL PUMP)
23532-B5010	Ring, O(FOR FUEL PUMP) 2012-01 → 2014-07 ended	KFVE S201,211	¥140
23229A — Clip(FOR FUEL PUMP FILTER)
23229-97501	Clip(FOR FUEL PUMP FILTER) 2011-12 → —	KFVE S201,211	¥310
23232A — Gasket, Fuel Pump
23232-87401	Gasket, Fuel Pump 2011-12 → 2014-07 ended	KFVE S201,211	¥360
23239C — Seal, Fuel Pump Filter
23239-97514	Seal, Fuel Pump Filter 2011-12 → —	KFVE S201,211	¥300
23243A — Wire, Fuel Pump Motor
82415-97503	Wire, Fuel Pump Motor 2011-12 → —	KFVE S201,211	¥500
23249A — Rubber, Cushion(FOR FUEL PUMP)
23249-B5040	Rubber, Cushion(FOR FUEL PUMP) 2012-01 → 2014-07 ended	KFVE S201,211	¥250
23280J — Regulator Assy, Fuel Pressure
23280-B5010	Regulator Assy, Fuel Pressure 2012-01 → 2014-07 ended	KFVE S201,211	¥5,600
23285 — Ring, O
23532-B5020	Ring, O 2012-01 → 2014-07 ended	KFVE S201,211	¥190
23300J — Filter Assy, Fuel
23300-97501	Filter Assy, Fuel 2011-12 → —	KFVE S201,211	¥8,600
77020A — Tube Assy, Fuel Suction W/Pump & Gage
23210-B5030	Tube Assy, Fuel Suction W/Pump & Gage 2011-12 → 2012-01 ended	S201,211	¥32,200
23210-B5032	Tube Assy, Fuel Suction W/Pump & Gage 2012-01 → 2014-07 ended	S201,211	¥39,700
77024A — Plate Sub-assy, Fuel Suction
77024-97503	Plate Sub-assy, Fuel Suction 2011-12 → 2014-07 ended	S201,211	¥3,610
77100U — Tank Sub-assy, Fuel
77001-B5110 note	Tank Sub-assy, Fuel 2011-12 → 2012-12 ended	S201,211	¥21,100
77001-B5160 note	Tank Sub-assy, Fuel 2013-01 → 2014-07 ended	S201,211	¥35,000
77141B — Reinforcement, Fuel Tank Flange, NO.1
77141-B5010	Reinforcement, Fuel Tank Flange, NO.1 2011-12 → —	S201,211	¥980
77174 — Support, Fuel Suction, NO.1
77174-97501	Support, Fuel Suction, NO.1 2011-12 → —	S201,211	¥740
77203A — Tube Sub-assy, Fuel Suction
77203-B5010	Tube Sub-assy, Fuel Suction 2011-12 → —	S201,211	¥3,090
77203C — Bracket, Fuel Pump
23265-B5010	Bracket, Fuel Pump 2011-12 → 2014-07 ended	S201,211	¥660
77205 — Tube Sub-assy, Fuel Main
77205-B5011	Tube Sub-assy, Fuel Main 2011-12 → —	S201,211	¥3,970
77259D — Hose, Fuel, NO.1
77259-97502	Hose, Fuel, NO.1 2011-12 → —	S201,211	¥510
77269A — Hose, Fuel Tank Breather
77269-97504	Hose, Fuel Tank Breather 2011-12 → —	S201,211	¥3,200
77279G — Hose, Fuel, NO.2
77279-97501	Hose, Fuel, NO.2 2011-12 → —	S201,211	¥990
77380 — Valve Assy, Fuel Cut Off
77380-87501	Valve Assy, Fuel Cut Off 2011-12 → —	S201,211	¥730
77606C — Protector, Fuel Tank, NO.2
77632-87502	Protector, Fuel Tank, NO.2 2011-12 → —	S201,211	¥590
77631A — Protector, Fuel Tank, Lower Center
77631-87507	Protector, Fuel Tank, Lower Center 2011-12 → —	S201,211	¥490
77643A — Protector, Fuel Tank, NO.3
77633-97501	Protector, Fuel Tank, NO.3 2011-12 → —	S201,211	¥430
77644 — Bolt, Fuel Tank
90041-20155 note	Bolt, Fuel Tank 2011-12 → 2014-07 ended	S201,211	¥190
77720 — Valve Sub-assy, Safety
77709-87510	Valve Sub-assy, Safety 2011-12 → —	S201,211	¥3,970

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
