Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

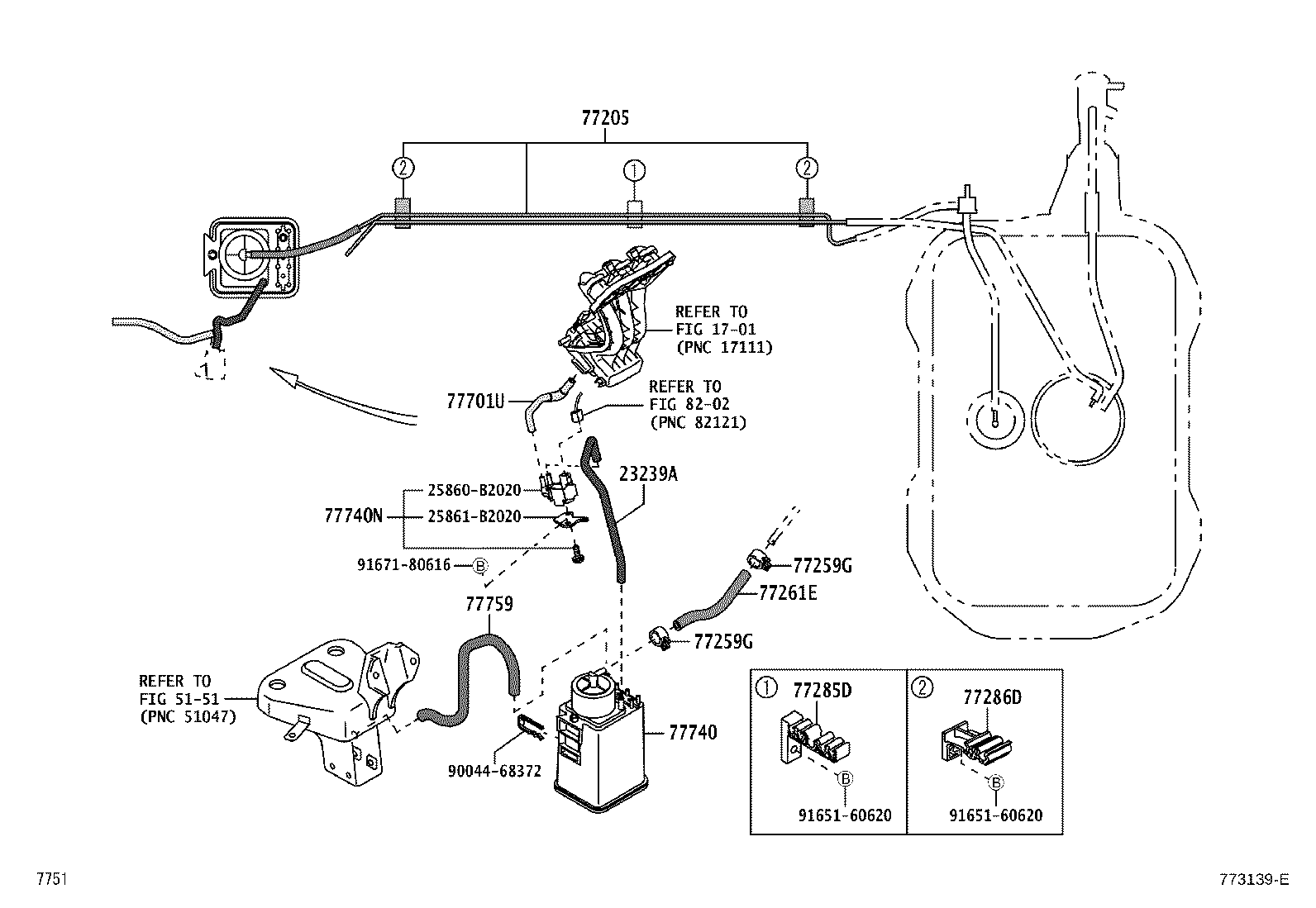

10 parts on this figure

Part number	Description	Fitment	Price
23239A — Hose
23239-B2010	Hose 2011-12 → —	KFVE S201,211	¥850
77205 — Tube Sub-assy, Fuel Main
77205-B5011	Tube Sub-assy, Fuel Main 2011-12 → —	S201,211	¥3,970
77259G — Clip, Fuel Hose
96132-41000	Clip, Fuel Hose 2011-12 → —	S201,211	¥80
77261E — Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-04095 note	Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 2011-12 → —	S201,211	¥1,190
77285D — Clamp, Fuel Tube, NO.1
77285-97502	Clamp, Fuel Tube, NO.1 2011-12 → —	S201,211	¥540
77286D — Clamp, Fuel Tube, NO.2
77286-97501	Clamp, Fuel Tube, NO.2 2011-12 → —	S201,211	¥740
77701U — Hose, Fuel (FOR CHECK VALVE)
23239-B2040	Hose, Fuel (FOR CHECK VALVE) 2011-12 → 2014-07 ended	S201,211	¥920
77740 — Canister Assy, Charcoal
77704-97501	Canister Assy, Charcoal 2011-12 → —	S201,211	¥7,300
77740N — Valve, Vacuum Switching(FOR CHARCOAL CANISTER)
89470-B5050	Valve, Vacuum Switching(FOR CHARCOAL CANISTER) 2011-12 → —	S201,211	¥5,300
77759 — Hose, Charcoal Canister
77759-B5030 note	Hose, Charcoal Canister 2011-12 → —	S201,211	¥1,190

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
