Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

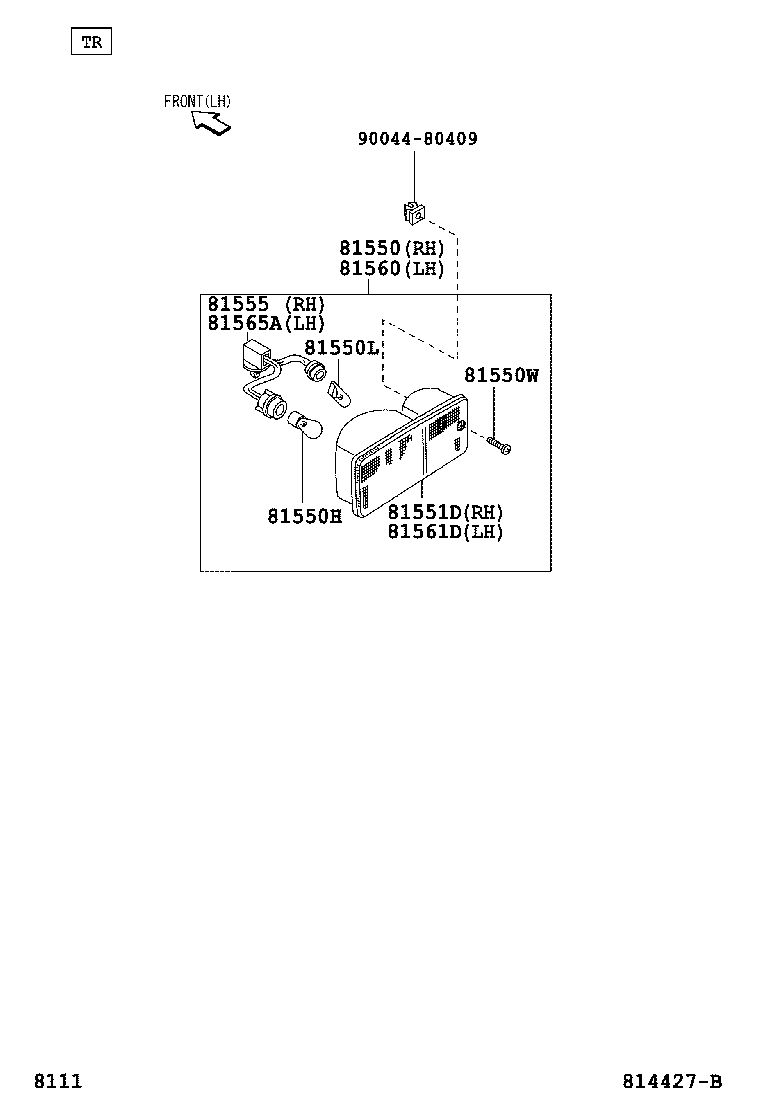

13 parts on this figure

Part number	Description	Fitment	Price
81550 — Lamp Assy, Rear Combination, RH
81550-B5050	Lamp Assy, Rear Combination, RH 2011-12 → 2012-12 ended	S201,211	¥6,500
81550-B5140	Lamp Assy, Rear Combination, RH 2012-12 → —	S201,211	¥7,900
81550H — Bulb, Tail & Stop Lamp
90049-51158 note	Bulb, Tail & Stop Lamp 2011-12 → 2014-07 ended	S201,211	¥180
81550L — Bulb, Rear Turn Signal Lamp
90981-11059	Bulb, Rear Turn Signal Lamp 2011-12 → —	S201,211	¥200
81550W — Screw(FOR RR COMBINATION LAMP)
93540-65025	Screw(FOR RR COMBINATION LAMP) 2011-12 → 2014-07 ended	S201,211	¥80
81551D — Lens & Body, Rear Combination Lamp, RH
81551-B5010	Lens & Body, Rear Combination Lamp, RH 2011-12 → 2012-12 ended	S201,211	¥5,500
81551-B5040	Lens & Body, Rear Combination Lamp, RH 2012-12 → —	S201,211	¥5,900
81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555-97504	Socket & Wire Sub-assy, Rear Combination Lamp, RH 2011-12 → —	S201,211	¥3,610
81560 — Lamp Assy, Rear Combination, LH
81560-B5050	Lamp Assy, Rear Combination, LH 2011-12 → 2012-12 ended	S201,211	¥6,500
81560-B5140	Lamp Assy, Rear Combination, LH 2012-12 → —	S201,211	¥7,900
81561D — Lens & Body, Rear Combination Lamp, LH
81561-B5010	Lens & Body, Rear Combination Lamp, LH 2011-12 → 2012-12 ended	S201,211	¥5,500
81561-B5040	Lens & Body, Rear Combination Lamp, LH 2012-12 → —	S201,211	¥5,900
81565A — Socket & Wire Sub-assy, Rear Combination Lamp, LH
81555-97504	Socket & Wire Sub-assy, Rear Combination Lamp, LH 2011-12 → —	S201,211	¥3,610

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
