Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

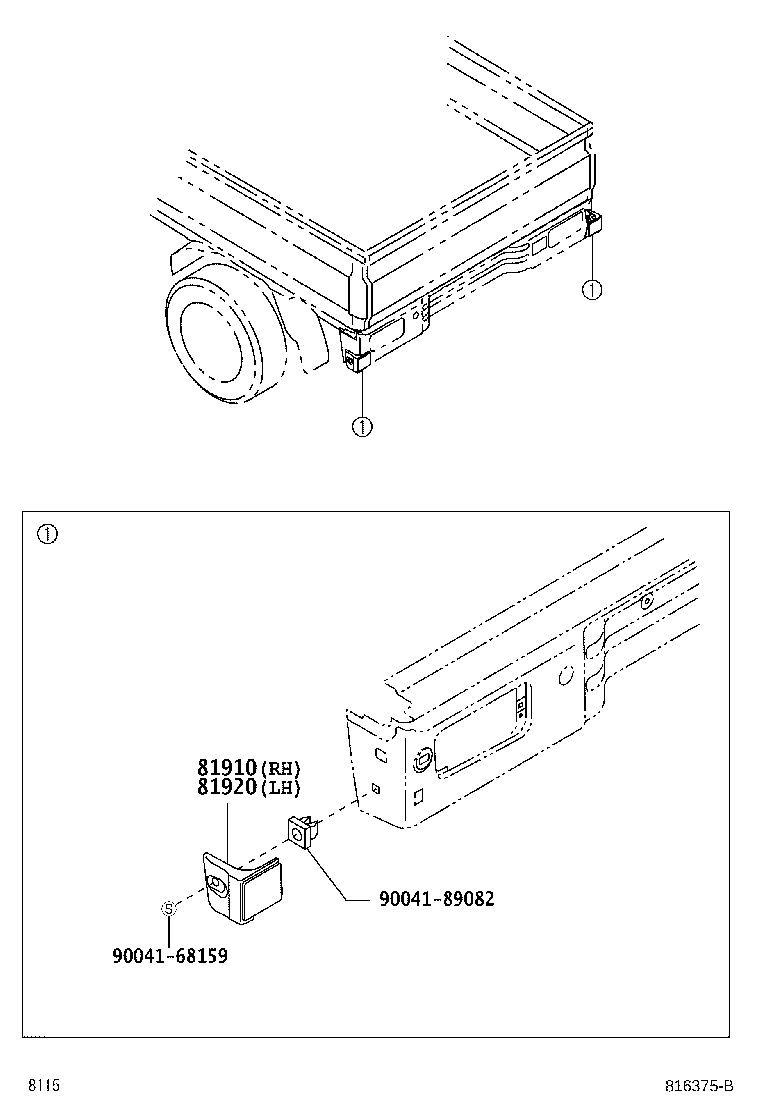

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81910 — Reflector Assy, Reflex, RH | ||||
| 81910-B5020 |
Reflector Assy, Reflex, RH
2012-12 → —
|
S201,211 | ¥1,510 | |
| 81920 — Reflector Assy, Reflex, LH | ||||
| 81920-B5020 |
Reflector Assy, Reflex, LH
2012-12 → —
|
S201,211 | ¥1,510 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
