Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

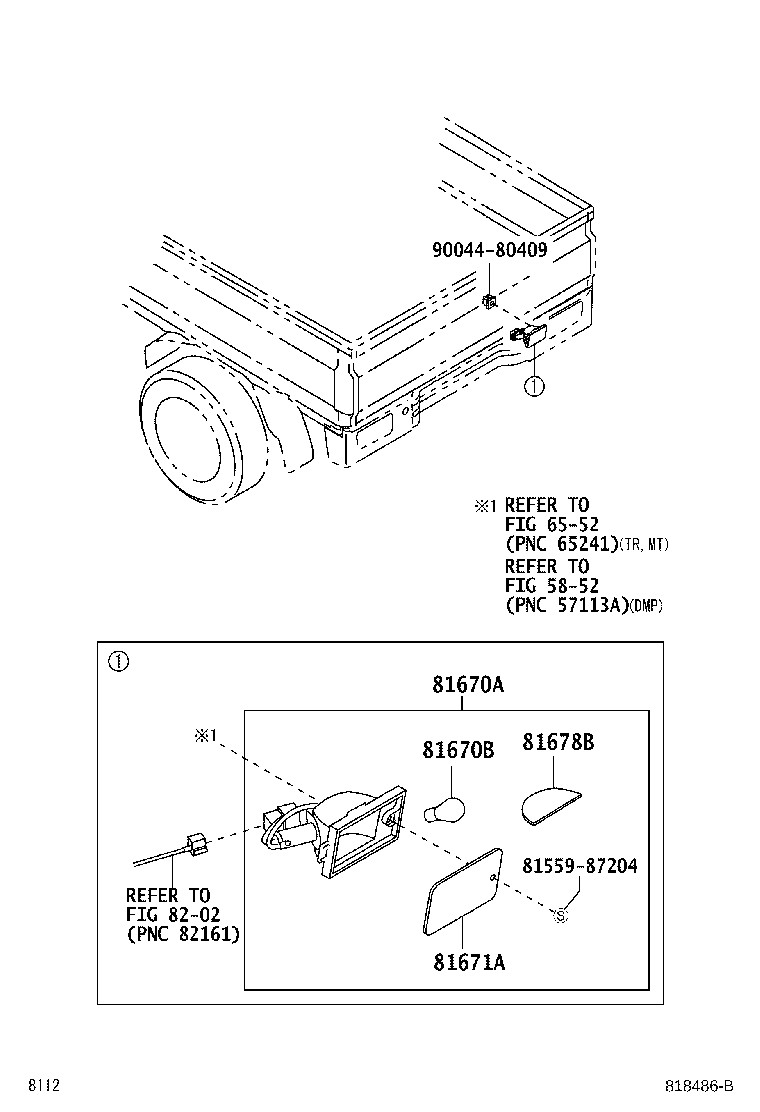

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81670A — Lamp Assy, Back-up | ||||
| 81670-87508 |
Lamp Assy, Back-up
2011-12 → —
|
S201,211 | ¥3,560 | |
| 81670B — Bulb(FOR BACK-UP LAMP) | ||||
| 99132-11210 note |
Bulb(FOR BACK-UP LAMP)
2011-12 → —
|
S201,211 | ¥170 | |
| 81671A — Lens & Body, Back-up Lamp | ||||
| 81671-87506 |
Lens & Body, Back-up Lamp
2011-12 → —
|
S201,211 | ¥1,030 | |
| 81678B — Protector, Back UP Lamp, RH | ||||
| 81277-87502 |
Protector, Back UP Lamp, RH
2011-12 → 2014-07
ended
|
S201,211 | ¥790 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
