Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

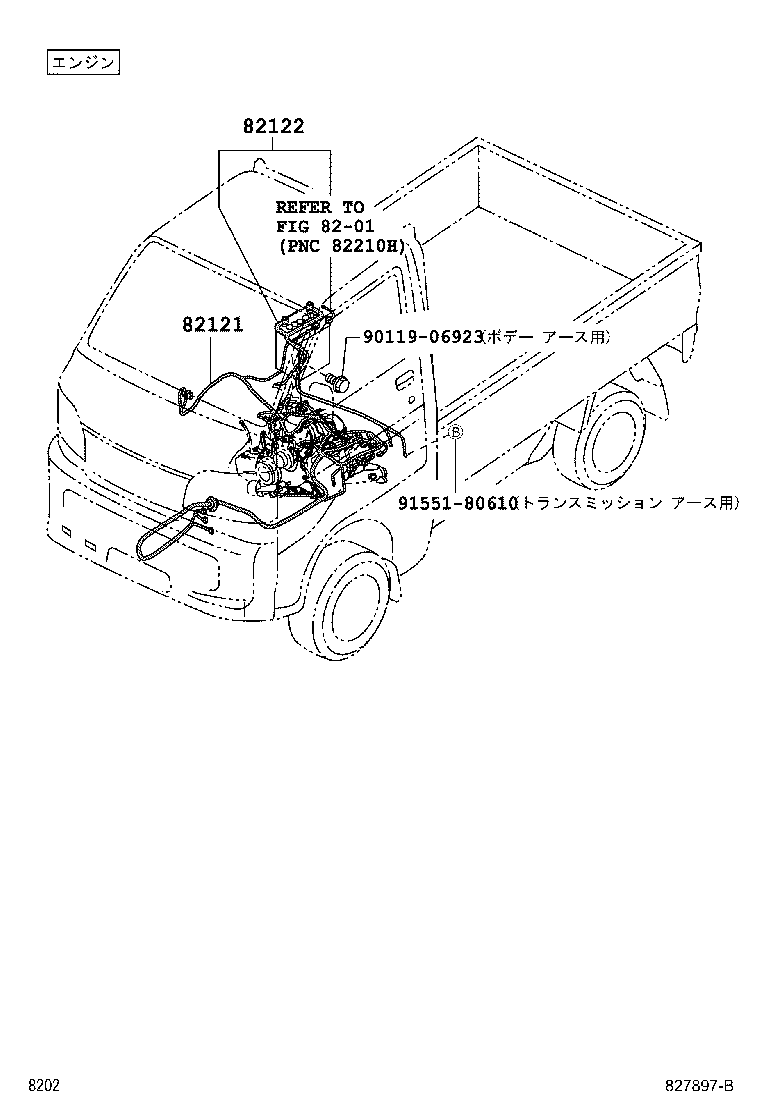

Exploded illustration 827897B 82122 — WIRE, ENGINE, NO.2 (12 parts) 82121 — WIRE, ENGINE (1 parts) 9155180610 — not listed in this catalogue 9011906923 — not listed in this catalogue 8201 — not listed in this catalogue
827897B · 2 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
13 parts on this figure
Part number Description Fitment Price
82121 — Wire, Engine
82121-B5280 note Wire, Engine
2011-12 → 2014-07 ended
S201,211 ¥24,500
82122 — Wire, Engine, NO.2
82122-B5122 Wire, Engine, NO.2
2011-12 → 2014-03 ended
S201 ATM ¥9,800
82122-B5123 Wire, Engine, NO.2
2014-04 → 2014-07 ended
S201 ATM ¥10,300
82122-B5132 Wire, Engine, NO.2
2011-12 → 2014-03 ended
S201 MTM ¥15,400
82122-B5133 Wire, Engine, NO.2
2014-04 → 2014-07 ended
S201 MTM ¥16,200
82122-B5142 Wire, Engine, NO.2
2011-12 → 2014-03 ended
S211 MTM EXT ¥15,400
82122-B5142 note Wire, Engine, NO.2
2011-12 → 2014-03 ended
S211 MTM SPL ¥15,400
82122-B5143 Wire, Engine, NO.2
2014-04 → 2014-07 ended
S211 MTM EXT ¥16,200
82122-B5143 note Wire, Engine, NO.2
2014-04 → 2014-07 ended
S211 MTM SPL ¥16,200
82122-B5152 Wire, Engine, NO.2
2011-12 → 2014-03 ended
S211 ATM ¥9,800
82122-B5153 Wire, Engine, NO.2
2014-04 → 2014-07 ended
S211 ATM ¥10,300
82122-B5172 Wire, Engine, NO.2
2011-12 → 2014-03 ended
S211 MTM SPL ¥15,400
82122-B5173 Wire, Engine, NO.2
2014-04 → 2014-07 ended
S211 MTM SPL ¥16,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
