Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

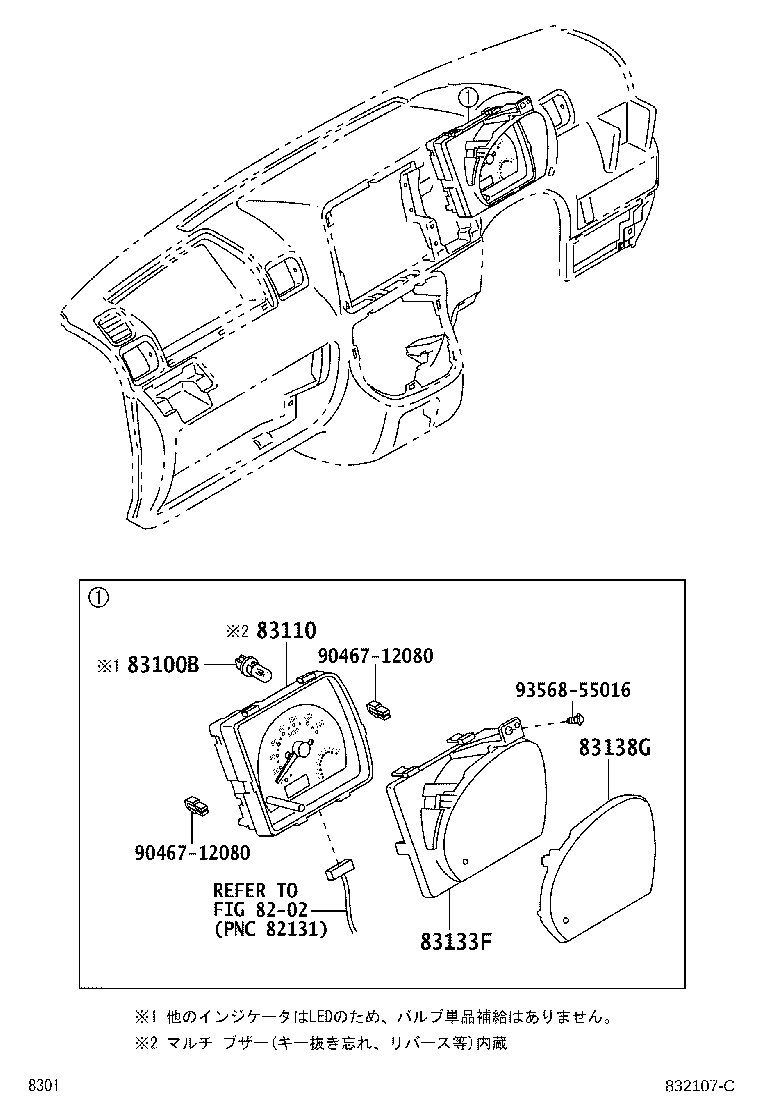

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

50 parts on this figure

Part number	Description	Fitment	Price
83100B — Bulb, Combination Meter, NO.1
83119-97505 note	Bulb, Combination Meter, NO.1 2011-12 → 2014-07 ended	S201,211	¥200
83110 — Speedometer Assy
83220-B5A70 note	Speedometer Assy 2011-12 → —	S201 MTM SPL	¥35,700
83220-B5A80 note	Speedometer Assy 2011-12 → —	S211 MTM SPL	¥35,700
83220-B5A90 note	Speedometer Assy 2011-12 → —	S211 MTM SPL	¥35,700
83220-B5B00 note	Speedometer Assy 2011-12 → —	S201,211 MTM SPL	¥35,700
83220-B5B00 note	Speedometer Assy 2011-12 → —	S201,211 MTM EXT	¥35,700
83220-B5B10 note	Speedometer Assy 2011-12 → —	S211 MTM EXT	¥35,700
83220-B5B10 note	Speedometer Assy 2011-12 → —	S211 MTM SPL	¥35,700
83220-B5B20 note	Speedometer Assy 2011-12 → —	S201 MTM EXT	¥35,700
83220-B5B20 note	Speedometer Assy 2011-12 → —	S201,211 MTM SPL	¥35,700
83220-B5B20 note	Speedometer Assy 2011-12 → 2012-12 ended	S211 MTM EXT	¥35,700
83220-B5B30 note	Speedometer Assy 2011-12 → —	S211 MTM SPL	¥35,700
83220-B5B30 note	Speedometer Assy 2011-12 → 2012-12 ended	S211 MTM EXT	¥35,700
83220-B5B40 note	Speedometer Assy 2011-12 → —	S201 ATM SPL	¥38,700
83220-B5B50 note	Speedometer Assy 2011-12 → —	S211 ATM SPL	¥38,700
83220-B5B60 note	Speedometer Assy 2011-12 → —	S211 ATM SPL	¥38,700
83220-B5B70 note	Speedometer Assy 2011-12 → —	S201,211 ATM SPL	¥38,700
83220-B5B70 note	Speedometer Assy 2011-12 → —	S201,211 ATM EXT	¥38,700
83220-B5B80 note	Speedometer Assy 2011-12 → —	S211 ATM SPL	¥38,700
83220-B5B80 note	Speedometer Assy 2011-12 → —	S211 ATM EXT	¥38,700
83220-B5B90 note	Speedometer Assy 2011-12 → 2012-12 ended	S201 ATM EXT	¥38,700
83220-B5B90 note	Speedometer Assy 2011-12 → 2012-12 ended	S201 ATM SPL	¥38,700
83220-B5B90 note	Speedometer Assy 2011-12 → —	S211 ATM SPL	¥38,700
83220-B5B90 note	Speedometer Assy 2011-12 → —	S211 ATM EXT	¥38,700
83220-B5C00 note	Speedometer Assy 2011-12 → —	S211 ATM SPL	¥38,700
83220-B5C00 note	Speedometer Assy 2011-12 → —	S211 ATM EXT	¥38,700
83220-B5C10 note	Speedometer Assy 2011-12 → —	S201 MTM EXT	¥35,700
83220-B5C10 note	Speedometer Assy 2011-12 → —	S201 MTM SPL	¥35,700
83220-B5C10 note	Speedometer Assy 2012-04 → 2012-12 ended	S201 MTM SPL	¥35,700
83220-B5C20 note	Speedometer Assy 2012-12 → —	S211 MTM EXT	¥35,700
83220-B5C20 note	Speedometer Assy 2011-12 → —	S211 MTM EXT	¥35,700
83220-B5C20 note	Speedometer Assy 2011-12 → —	S211 MTM SPL	¥35,700
83220-B5C20 note	Speedometer Assy 2012-04 → 2012-12 ended	S211 MTM SPL	¥35,700
83220-B5C30 note	Speedometer Assy 2012-04 → 2012-12 ended	S211 MTM SPL	¥35,700
83220-B5C30 note	Speedometer Assy 2011-12 → —	S211 MTM SPL	¥35,700
83220-B5C30 note	Speedometer Assy 2011-12 → —	S211 MTM EXT	¥35,700
83220-B5C30 note	Speedometer Assy 2012-12 → —	S211 MTM EXT	¥35,700
83220-B5C40 note	Speedometer Assy 2012-04 → 2012-12 ended	S201 ATM SPL	¥38,700
83220-B5C40 note	Speedometer Assy 2012-12 → —	S201 ATM EXT	¥38,700
83220-B5C40 note	Speedometer Assy 2011-12 → —	S201 ATM SPL	¥38,700
83220-B5C40 note	Speedometer Assy 2011-12 → —	S201 ATM EXT	¥38,700
83220-B5C40 note	Speedometer Assy 2012-12 → —	S201 ATM SPL	¥38,700
83220-B5C50 note	Speedometer Assy 2012-04 → 2012-12 ended	S211 ATM SPL	¥38,700
83220-B5C50 note	Speedometer Assy 2011-12 → —	S211 ATM EXT	¥38,700
83220-B5C50 note	Speedometer Assy 2011-12 → —	S211 ATM SPL	¥38,700
83220-B5C60 note	Speedometer Assy 2011-12 → —	S211 ATM EXT	¥38,700
83220-B5C60 note	Speedometer Assy 2011-12 → —	S211 ATM SPL	¥38,700
83220-B5C60 note	Speedometer Assy 2012-04 → 2012-12 ended	S211 ATM SPL	¥38,700
83133F — Plate, Meter
83133-97509	Plate, Meter 2011-12 → 2014-07 ended	S201,211	¥2,580
83138G — Glass, Combination Meter
83852-97503	Glass, Combination Meter 2011-12 → —	S201,211	¥1,720

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
