Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

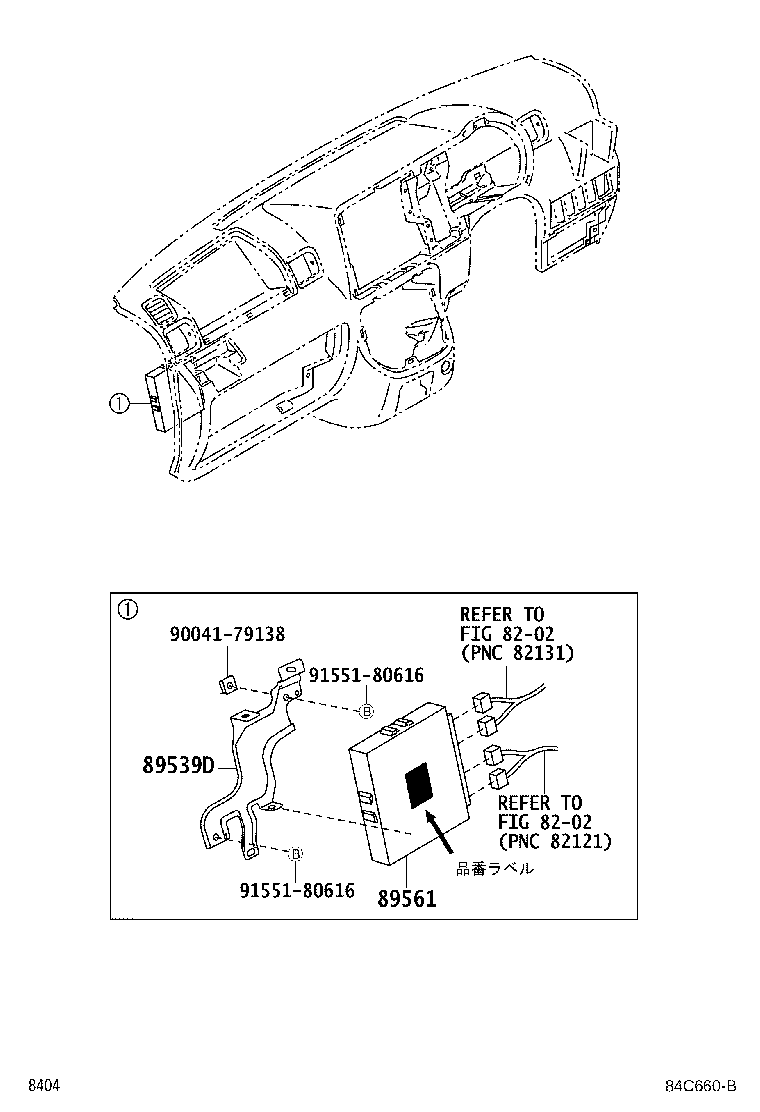

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89539D — Bracket, Computer | ||||
| 89539-B5030 |
Bracket, Computer
2011-12 → 2014-07
ended
|
S201,211 | ¥1,770 | |
| 89561 — Computer, Fuel Injection | ||||
| 89560-B5485 note |
Computer, Fuel Injection
2011-12 → 2012-12
ended
|
S201,211 MTM | ¥62,000 | |
| 89560-B5493 note |
Computer, Fuel Injection
2011-12 → 2012-12
ended
|
S201,211 ATM | ¥62,000 | |
| 89560-B5665 note |
Computer, Fuel Injection
2011-12 → 2012-12
ended
|
S201,211 MTM | ¥62,000 | |
| 89560-B5673 note |
Computer, Fuel Injection
2011-12 → 2012-12
ended
|
S201,211 ATM | ¥62,000 | |
| 89560-B5C40 note |
Computer, Fuel Injection
2012-12 → 2013-11
ended
|
S201,211 MTM | ¥59,000 | |
| 89560-B5C41 note |
Computer, Fuel Injection
2013-12 → —
|
S201,211 MTM | ¥62,000 | |
| 89560-B5C50 note |
Computer, Fuel Injection
2012-12 → 2013-11
ended
|
S201,211 MTM | ¥59,000 | |
| 89560-B5C51 note |
Computer, Fuel Injection
2013-12 → —
|
S201,211 MTM | ¥62,000 | |
| 89560-B5C60 note |
Computer, Fuel Injection
2012-12 → 2013-11
ended
|
S201,211 ATM | ¥59,000 | |
| 89560-B5C61 note |
Computer, Fuel Injection
2013-12 → —
|
S201,211 ATM | ¥62,000 | |
| 89560-B5C70 note |
Computer, Fuel Injection
2012-12 → 2013-11
ended
|
S201,211 ATM | ¥59,000 | |
| 89560-B5C71 note |
Computer, Fuel Injection
2013-12 → —
|
S201,211 ATM | ¥62,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
