Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

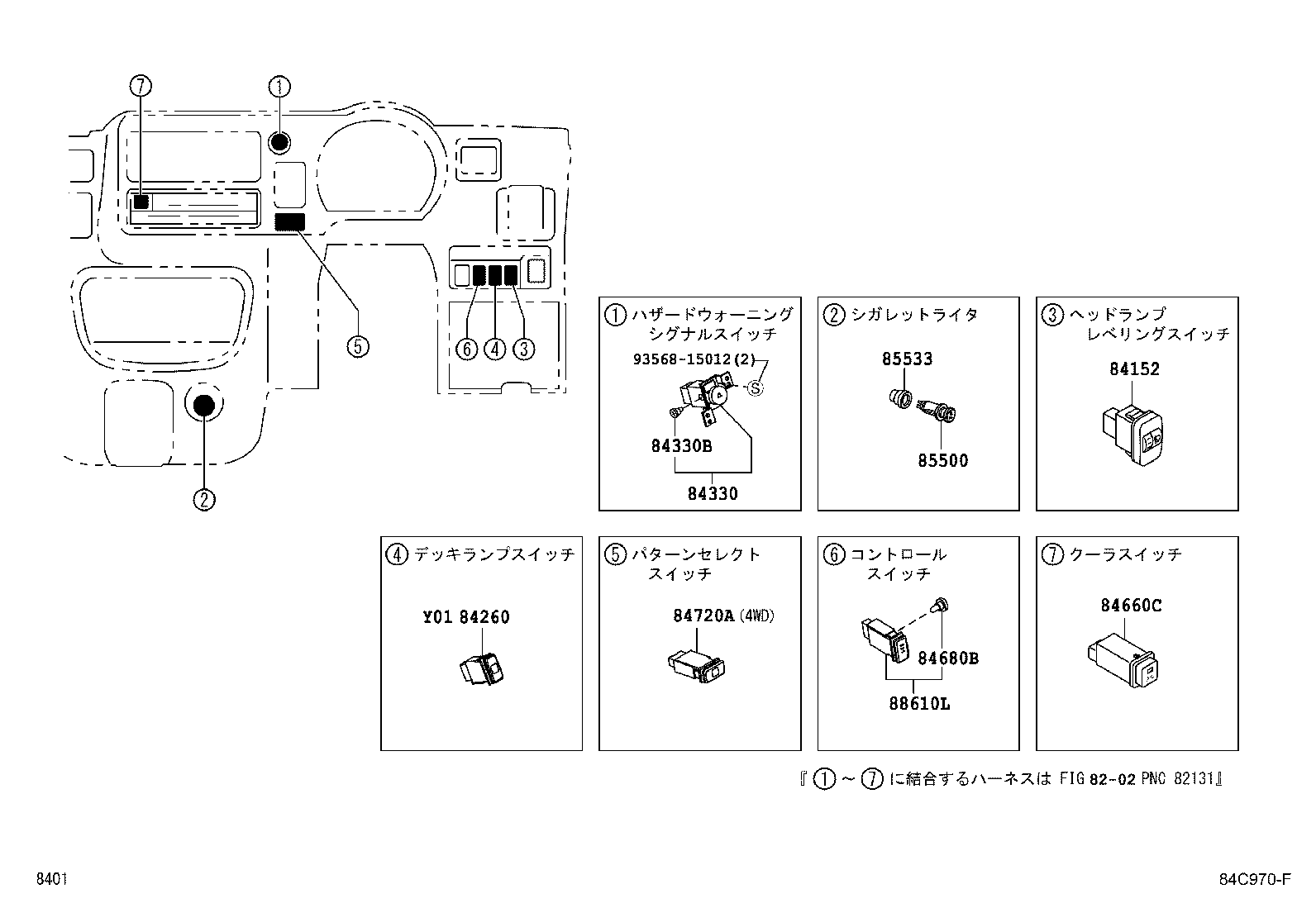

15 parts on this figure

Part number	Description	Fitment	Price
84152 — Switch, Headlamp Leveling
84152-B2070	Switch, Headlamp Leveling 2011-12 → —	S201,211	¥5,100
84260 — Switch Assy, Deck Lamp
84260-B5010 note	Switch Assy, Deck Lamp 2011-12 → 2013-04 ended	S201,211 SPL	¥3,610
84260-B5010	Switch Assy, Deck Lamp 2011-12 → —	S201,211 EXT	¥3,610
84260-B5010 note	Switch Assy, Deck Lamp 2013-04 → —	S211 MTM SPL	¥3,610
84330 — Switch Assy, Hazard Warning Signal
84332-B5010	Switch Assy, Hazard Warning Signal 2011-12 → —	S201,211	¥2,990
84330B — Bulb, Hazard Warning Signal Switch
84999-B5050	Bulb, Hazard Warning Signal Switch 2011-12 → —	S201,211	¥240
84660C — Switch, Cooler
84660-97201 note	Switch, Cooler 2011-12 → 2014-07 ended	S201,211 EXT	¥2,990
84660-97201 note	Switch, Cooler 2011-12 → 2014-07 ended	S201,211 SPL	¥2,990
84680B — Bulb
84999-B5010	Bulb 2011-12 → —	S211 MTM EXT	¥220
84999-B5010 note	Bulb 2011-12 → —	S201 MTM;S211 MTM SPL	¥220
84720A — Switch Assy, Pattern Select, NO.1
84720-B5010	Switch Assy, Pattern Select, NO.1 2011-12 → —	S211	¥2,530
85500 — Lighter Assy, Cigarette
85500-87505	Lighter Assy, Cigarette 2011-12 → —	S201,211	¥3,400
85533 — Lens, Cigarette Lighter Indicator
85533-87701	Lens, Cigarette Lighter Indicator 2011-12 → —	S201,211	¥480
88610L — Switch Assy,Control
88610-B5010 note	Switch Assy,Control 2011-12 → —	S211 MTM EXT	¥2,990
88610-B5010 note	Switch Assy,Control 2011-12 → —	S201 MTM;S211 MTM SPL	¥2,990

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
