Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

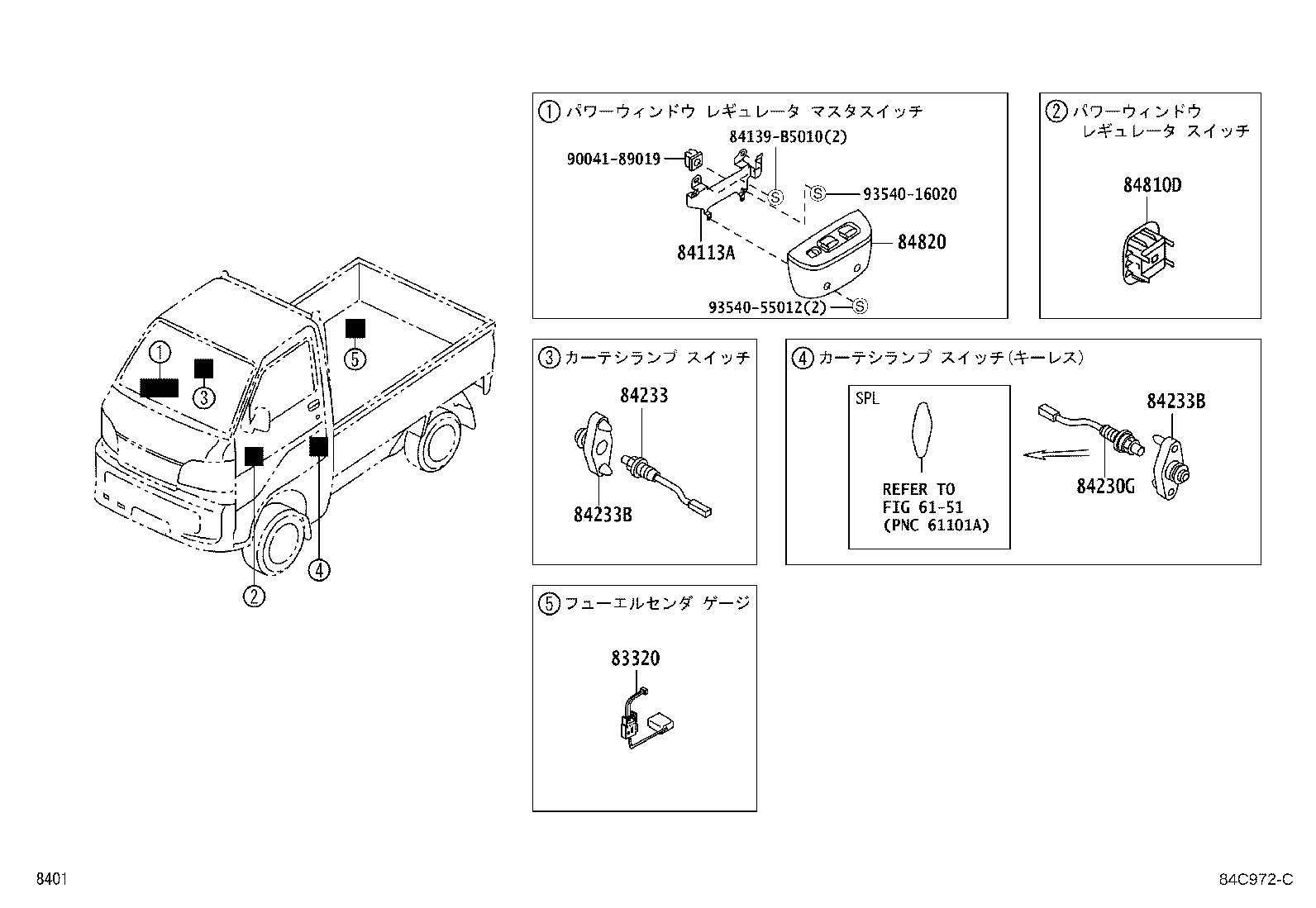

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83301-B5020 |
Gage Assy, Fuel Sender
2011-12 → —
|
S201,211 | ¥5,400 | |
| 84113A — Bracket, Switch, NO.1 | ||||
| 84113-87506 |
Bracket, Switch, NO.1
2011-12 → —
|
S201,211 EXT | ¥7,100 | |
| 84230G — Switch Assy, Courtesy Lamp | ||||
| 84230-87104 |
Switch Assy, Courtesy Lamp
2011-12 → 2014-07
ended
|
S201,211 EXT | ¥1,050 | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84230-87603 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2011-12 → 2014-07
ended
|
S201,211 | ¥780 | |
| 84233B — Cushion, Courtesy Switch (FOR FRONT DOOR) | ||||
| 84234-87201 |
Cushion, Courtesy Switch (FOR FRONT DOOR)
2011-12 → —
|
S201,211 SPL | ¥680 | |
| 84234-87201 |
Cushion, Courtesy Switch (FOR FRONT DOOR)
2011-12 → —
|
S201,211 EXT | ¥680 | |
| 84810D — Switch Assy, Power Window Regulator, Rear | ||||
| 84810-97206-B3 note |
Switch Assy, Power Window Regulator, Rear
2011-12 → —
|
S201,211 EXT | ¥3,450 | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84820-87208-B0 note |
Master Switch Assy, Power Window Regulator
2011-12 → —
|
S201,211 EXT | ¥7,700 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
