Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

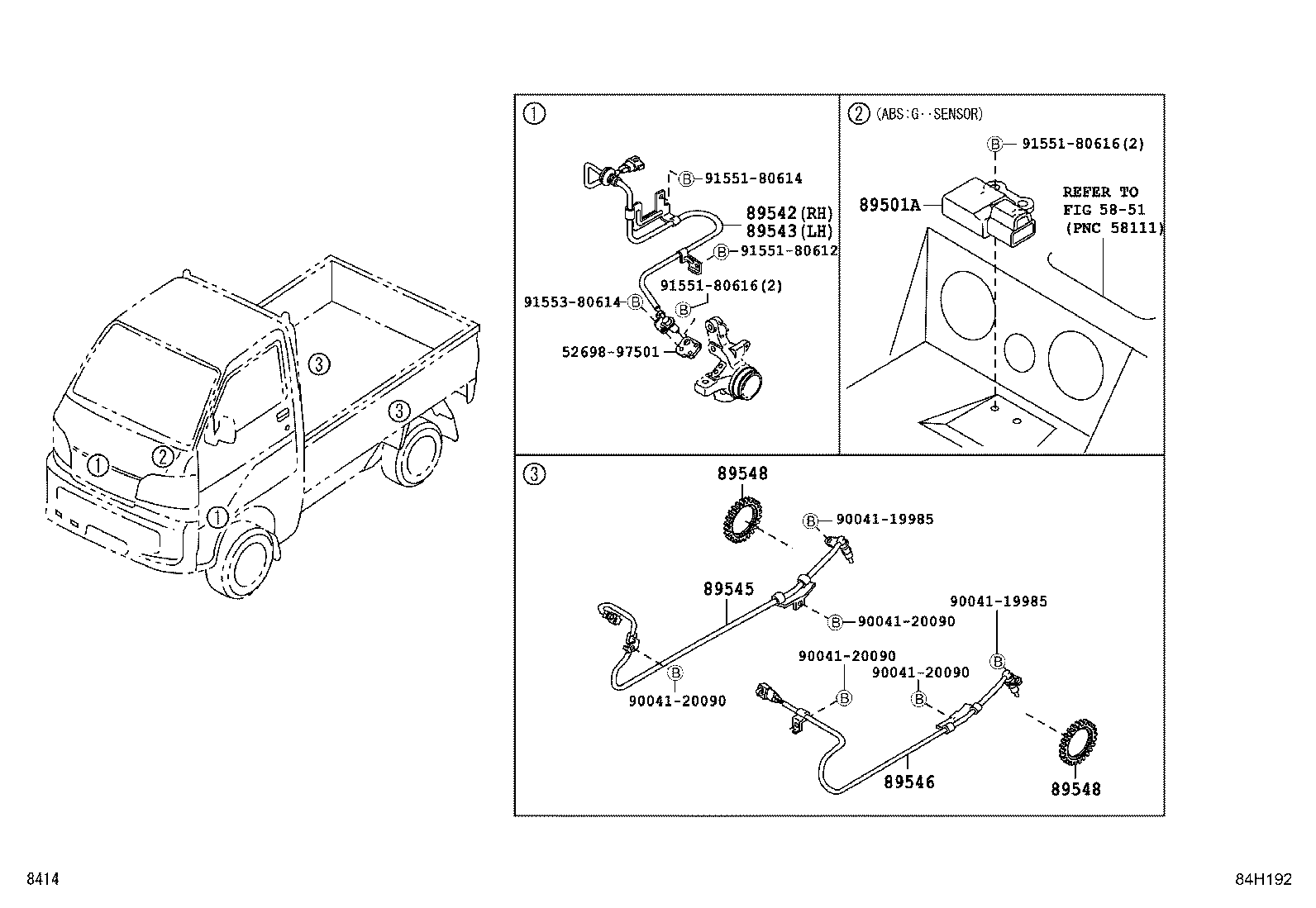

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89501A — Sensor, Gravity | ||||
| 89549-97503 note |
Sensor, Gravity
2011-12 → 2012-12
ended
|
S201 ATM;S211 MTM EXT | ¥21,500 | |
| 89549-97503 note |
Sensor, Gravity
2011-12 → —
|
S201 MTM;S211 ATM;S211 MTM +1 | ¥21,500 | |
| 89542 — Sensor, Speed, Front RH | ||||
| 89542-B5020 note |
Sensor, Speed, Front RH
2011-12 → 2012-12
ended
|
S201 ATM;S211 MTM EXT | ¥14,900 | |
| 89542-B5020 note |
Sensor, Speed, Front RH
2011-12 → —
|
S201 MTM;S211 ATM;S211 MTM +1 | ¥14,900 | |
| 89543 — Sensor, Speed, Front LH | ||||
| 89543-B5020 note |
Sensor, Speed, Front LH
2011-12 → 2012-12
ended
|
S201 ATM;S211 MTM EXT | ¥14,900 | |
| 89543-B5020 note |
Sensor, Speed, Front LH
2011-12 → —
|
S201 MTM;S211 ATM;S211 MTM +1 | ¥14,900 | |
| 89545 — Sensor, Speed, Rear RH | ||||
| 89544-97504 note |
Sensor, Speed, Rear RH
2011-12 → 2012-12
ended
|
S201 ATM;S211 MTM EXT | ¥14,900 | |
| 89544-97504 note |
Sensor, Speed, Rear RH
2011-12 → —
|
S201 MTM;S211 ATM;S211 MTM +1 | ¥14,900 | |
| 89546 — Sensor, Speed, Rear LH | ||||
| 89545-97504 note |
Sensor, Speed, Rear LH
2011-12 → 2012-12
ended
|
S201 ATM;S211 MTM EXT | ¥14,900 | |
| 89545-97504 note |
Sensor, Speed, Rear LH
2011-12 → —
|
S201 MTM;S211 ATM;S211 MTM +1 | ¥14,900 | |
| 89548 — Rotor, Skid Control Sensor | ||||
| 89547-97506 note |
Rotor, Skid Control Sensor
2011-12 → 2012-12
ended
|
S201 ATM;S211 MTM EXT | ¥3,150 | |
| 89547-97506 note |
Rotor, Skid Control Sensor
2011-12 → —
|
S201 MTM;S211 ATM;S211 MTM +1 | ¥3,150 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
