Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

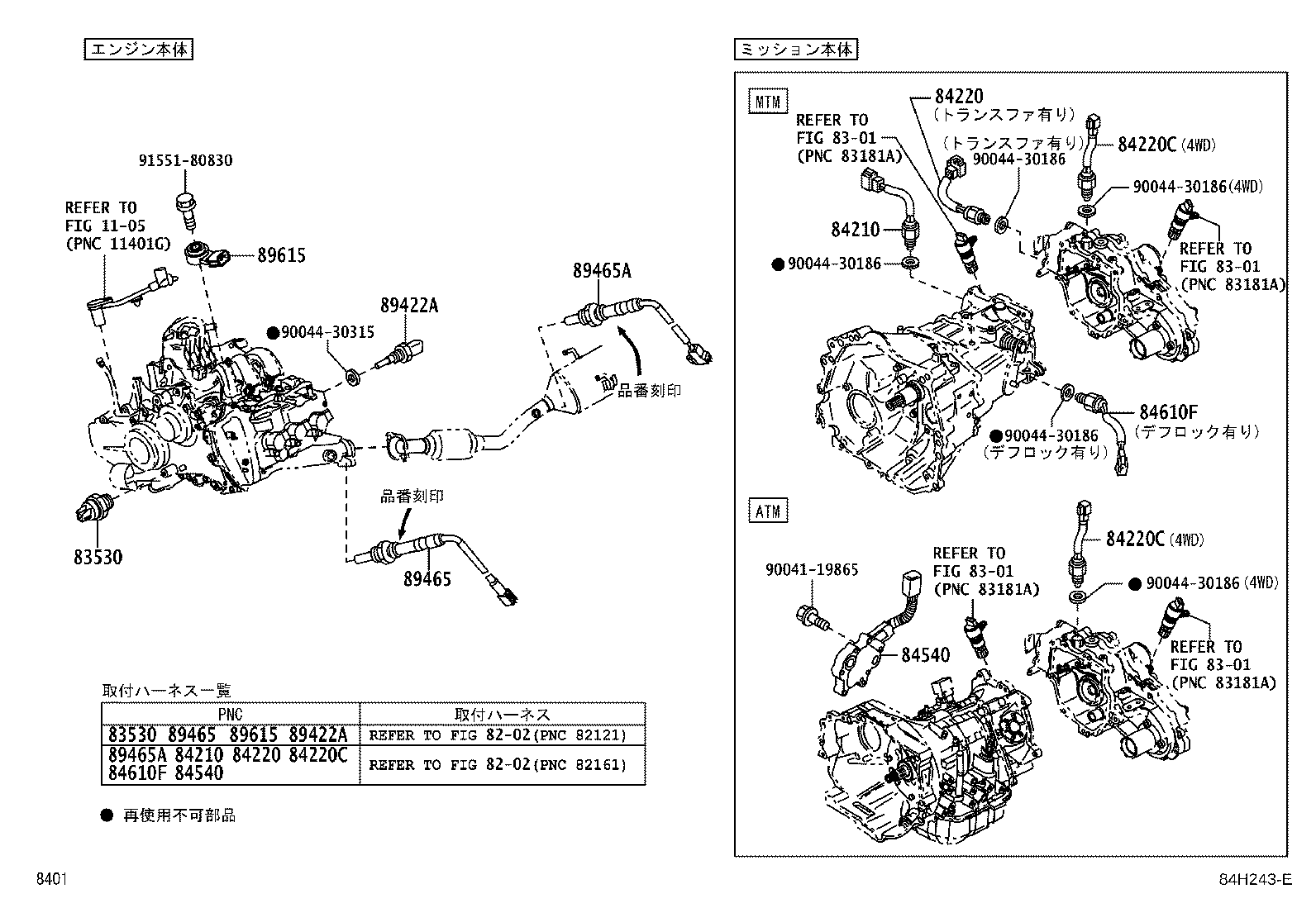

Exploded illustration 84H243E 9155180830 — not listed in this catalogue 9004430315 — not listed in this catalogue 9004430186 — not listed in this catalogue 9004430186 — not listed in this catalogue 9004430186 — not listed in this catalogue 89615 — SENSOR, KNOCK CONTROL (1 parts) 89422A — SENSOR, WATER TEMPERATURE (1 parts) 83530 — SWITCH ASSY, OIL PRESSURE (FOR ENGINE) (1 parts) 89465 — SENSOR, OXYGEN (2 parts) 89465A — SENSOR, OXYGEN NO.2 (2 parts) 84210 — SWITCH ASSY, BACK-UP LAMP (1 parts) 84220 — SWITCH ASSY, TRANSFER LEVER SELECT (2 parts) 9004430186 — not listed in this catalogue 84220C — SWITCH ASSY, TRANSMISSION POSITION INDICATOR (1 parts) 9004430186 — not listed in this catalogue 84220C — SWITCH ASSY, TRANSMISSION POSITION INDICATOR (1 parts) 84610F — SWITCH ASSY, TRANSMISSION SHIFT (3 parts) 9004119865 — not listed in this catalogue 84540 — SWITCH ASSY, NEUTRAL START (1 parts) 1105 — not listed in this catalogue 8301 — not listed in this catalogue 8301 — not listed in this catalogue 8301 — not listed in this catalogue 8301 — not listed in this catalogue 89465A — SENSOR, OXYGEN NO.2 (2 parts) 84220C — SWITCH ASSY, TRANSMISSION POSITION INDICATOR (1 parts) 84610F — SWITCH ASSY, TRANSMISSION SHIFT (3 parts) 84210 — SWITCH ASSY, BACK-UP LAMP (1 parts) 84220 — SWITCH ASSY, TRANSFER LEVER SELECT (2 parts) 89465 — SENSOR, OXYGEN (2 parts) 84540 — SWITCH ASSY, NEUTRAL START (1 parts) 89422A — SENSOR, WATER TEMPERATURE (1 parts) 89615 — SENSOR, KNOCK CONTROL (1 parts) 83530 — SWITCH ASSY, OIL PRESSURE (FOR ENGINE) (1 parts) 8202 — not listed in this catalogue 8202 — not listed in this catalogue
84H243E · 21 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
15 parts on this figure
Part number Description Fitment Price
83530 — Switch Assy, Oil Pressure (FOR ENGINE)
83530-B2010 Switch Assy, Oil Pressure (FOR ENGINE)
2011-12 → 2014-07 ended
S201,211 ¥1,980
84210 — Switch Assy, Back-up Lamp
84210-B4010 Switch Assy, Back-up Lamp
2011-12 → —
S201,211 MTM ¥2,000
84220 — Switch Assy, Transfer Lever Select
84220-B5020 Switch Assy, Transfer Lever Select
2011-12 → —
S211 MTM EXT ¥3,200
84220-B5020 note Switch Assy, Transfer Lever Select
2011-12 → —
S211 MTM SPL ¥3,200
84220C — Switch Assy, Transmission Position Indicator
84220-B5010 Switch Assy, Transmission Position Indicator
2011-12 → —
S211 ¥3,200
84540 — Switch Assy, Neutral Start
84540-B5020 Switch Assy, Neutral Start
2011-12 → —
S201,211 ATM ¥13,600
84610F — Switch Assy, Transmission Shift
84610-B5010 Switch Assy, Transmission Shift
2011-12 → —
S211 MTM EXT ¥3,560
84610-B5010 note Switch Assy, Transmission Shift
2011-12 → —
S211 MTM SPL ¥3,560
84610-B5010 note Switch Assy, Transmission Shift
2011-12 → —
S201 MTM;S211 MTM SPL ¥3,560
89422A — Sensor, Water Temperature
89422-16010 Sensor, Water Temperature
2011-12 → 2014-07 ended
S201,211 ¥2,410
89465 — Sensor, Oxygen
89465-B2100 note Sensor, Oxygen
2011-12 → 2012-08 ended
S201,211 ¥5,400
89465-B2101 note Sensor, Oxygen
2012-08 → 2014-07 ended
S201,211 ¥6,000
89465A — Sensor, Oxygen NO.2
89465-B5041 note Sensor, Oxygen NO.2
2011-12 → 2012-11 ended
S201,211 ¥5,700
89465-B5042 note Sensor, Oxygen NO.2
2012-12 → 2014-07 ended
S201,211 ¥6,600
89615 — Sensor, Knock Control
89615-20090 Sensor, Knock Control
2011-12 → 2014-07 ended
S201,211 ¥2,370
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
