Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

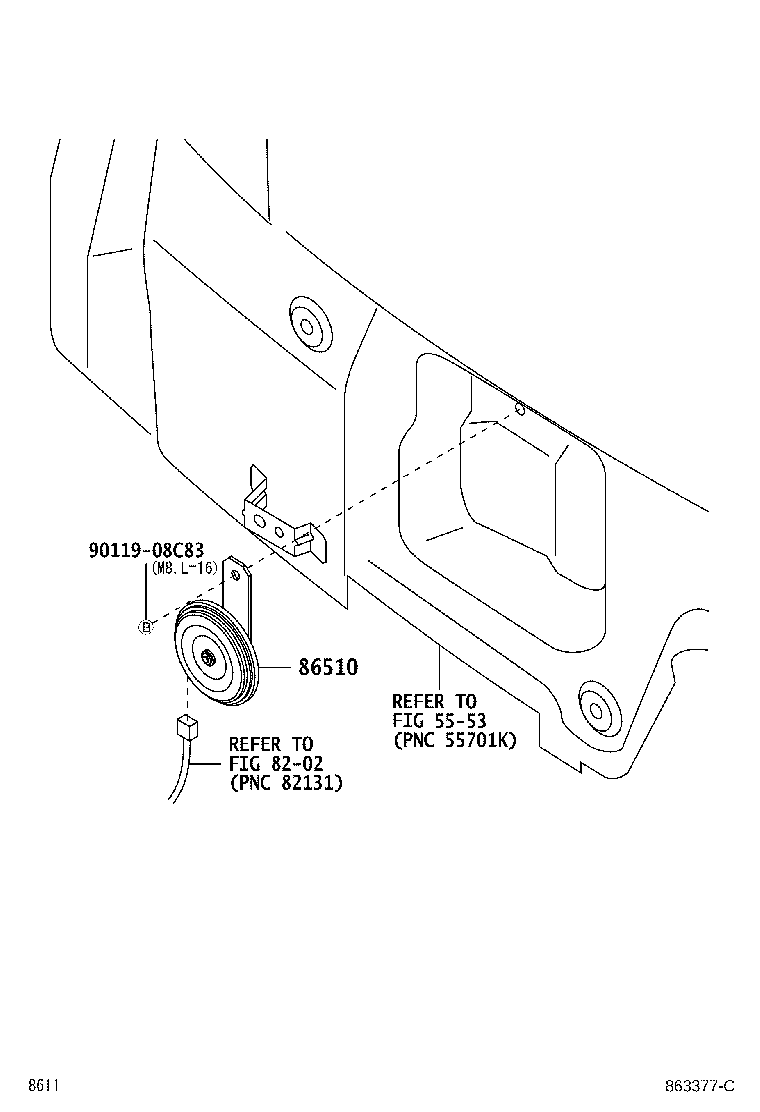

Exploded illustration 863377C 5553 — not listed in this catalogue 8202 — not listed in this catalogue 9011908C83 — not listed in this catalogue 86510 — HORN ASSY, HIGH PITCHED (2 parts)
863377C · 1 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
2 parts on this figure
Part number Description Fitment Price
86510 — Horn Assy, High Pitched
86510-B5030 note Horn Assy, High Pitched
2011-12 → —
S201,211 ¥3,920
86510-B5040 note Horn Assy, High Pitched
2011-12 → —
S201,211 ¥3,920
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
