Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

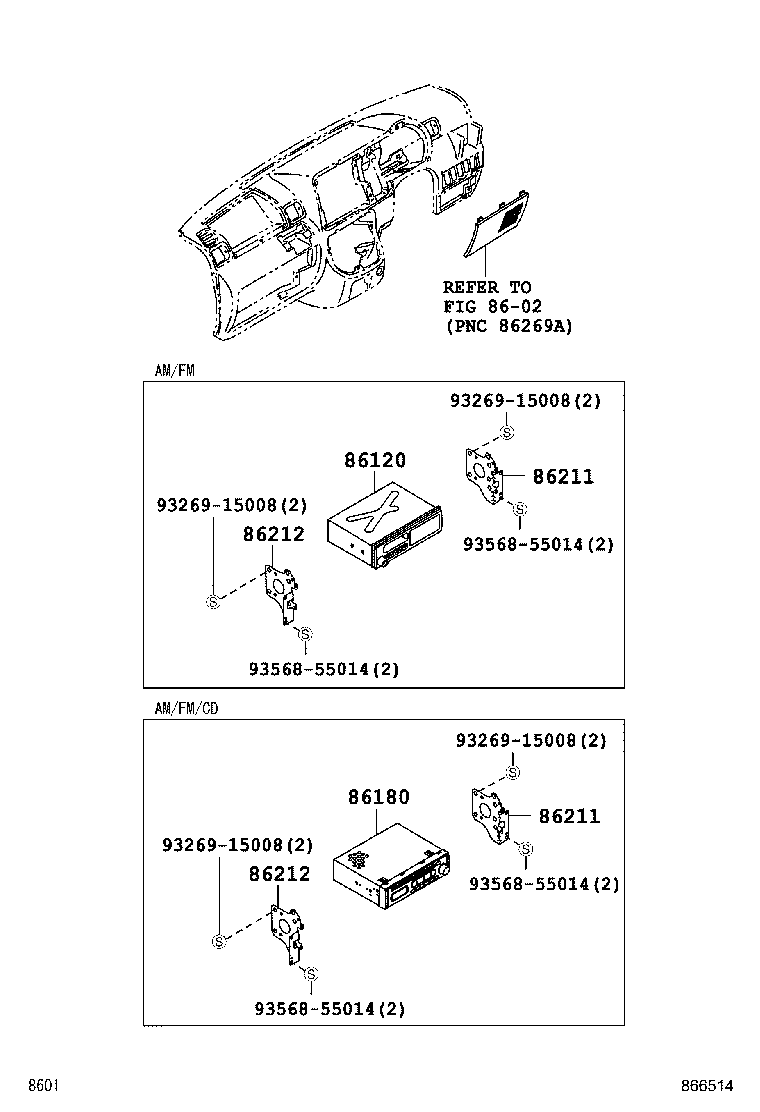

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

13 parts on this figure

Part number	Description	Fitment	Price
86120 — Receiver Assy, Radio
86120-B2040 note	Receiver Assy, Radio 2011-12 → 2012-12 ended	S201,211 SPL	¥14,700
86120-B2040 note	Receiver Assy, Radio 2012-12 → —	S201,211 SPL	¥14,700
86120-B2040 note	Receiver Assy, Radio 2012-12 → —	S201,211 SPL	¥14,700
86120-B5011 note	Receiver Assy, Radio 2011-12 → 2012-12 ended	S201,211 SPL	¥9,900
86120-B5011 note	Receiver Assy, Radio 2011-12 → 2012-12 ended	S201,211 SPL	¥9,900
86180 — Tuner Assy, Stereo Component
86180-B5010 note	Tuner Assy, Stereo Component 2011-12 → 2012-03 ended	S201,211 EXT	¥30,000
86180-B5010 note	Tuner Assy, Stereo Component 2011-12 → 2012-03 ended	S201,211 SPL	¥30,000
86180-B5010 note	Tuner Assy, Stereo Component 2011-12 → 2012-03 ended	S201,211 EXT	¥30,000
86180-B5050 note	Tuner Assy, Stereo Component 2012-04 → —	S201,211 EXT	¥60,600
86180-B5050 note	Tuner Assy, Stereo Component 2012-04 → —	S201,211 SPL	¥60,600
86180-B5050 note	Tuner Assy, Stereo Component 2012-04 → —	S201,211 EXT	¥60,600
86211 — Bracket, Radio, NO.1
86211-B5010	Bracket, Radio, NO.1 2011-12 → —	S201,211	¥670
86212 — Bracket, Radio, NO.2
86212-B5010	Bracket, Radio, NO.2 2011-12 → —	S201,211	¥670

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
