Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

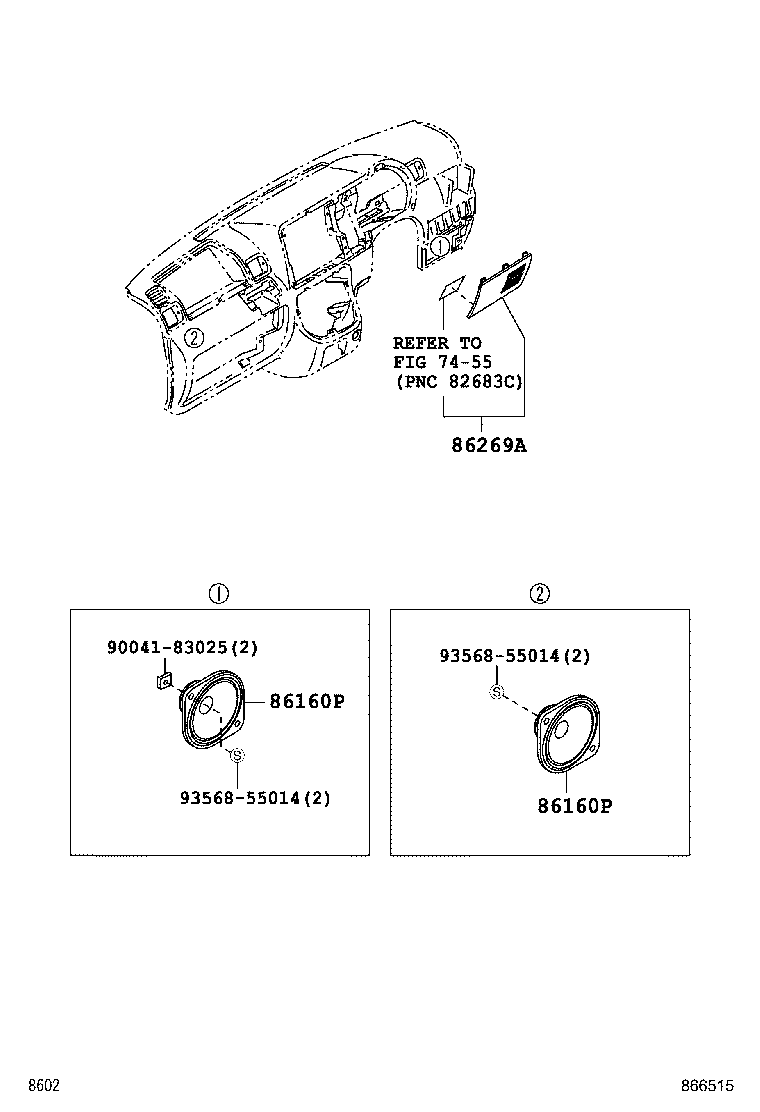

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86160P — Speaker Assy, Front NO.2 | ||||
| 86160-B1020 |
Speaker Assy, Front NO.2
2011-12 → —
|
S201,211 EXT | ¥4,020 | |
| 86160-B1020 note |
Speaker Assy, Front NO.2
2011-12 → —
|
S201,211 SPL | ¥4,020 | |
| 86269A — Grille, Speaker | ||||
| 86269-B5010-B0 note |
Grille, Speaker
2011-12 → —
|
S201,211 | ¥4,430 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
