Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

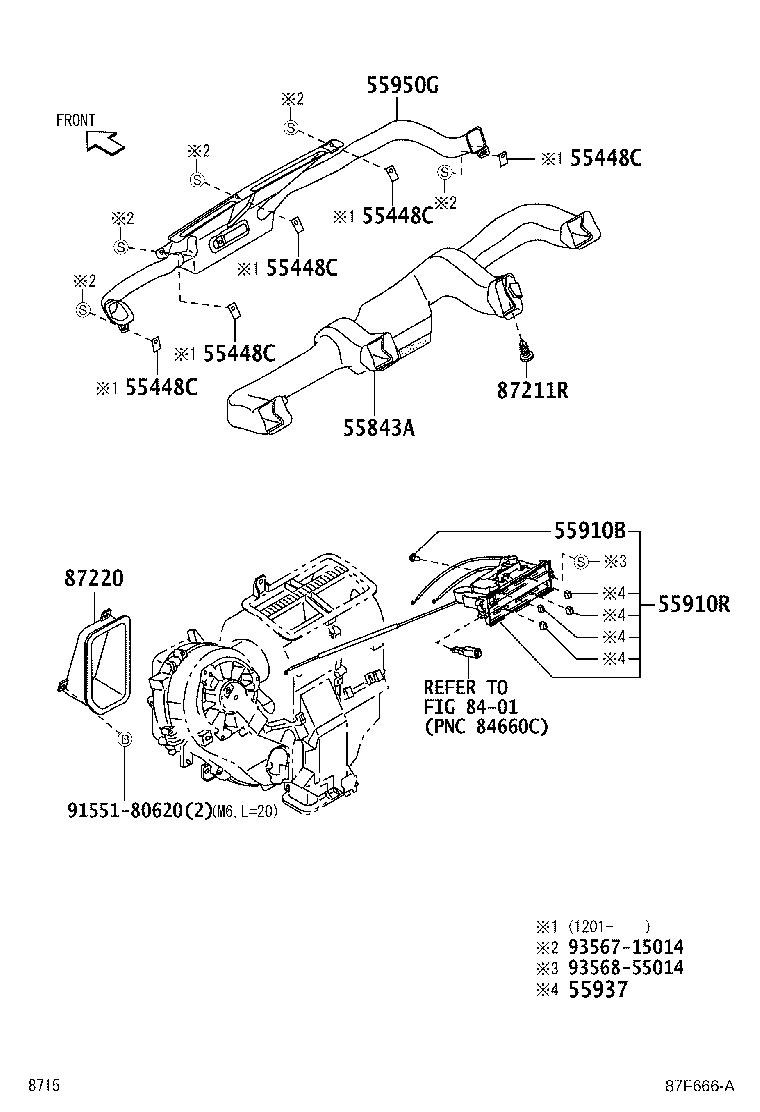

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55448C — Cushion, Instrument Panel, NO.1 | ||||
| 55391-B5030 |
Cushion, Instrument Panel, NO.1
2012-01 → —
|
S201,211 | ¥290 | |
| 55843A — Duct, Heater TO Register, NO.1 | ||||
| 55843-B5020 note |
Duct, Heater TO Register, NO.1
2011-12 → 2014-07
ended
|
S201,211 | ¥11,500 | |
| 55910B — Bulb, Heater Control | ||||
| 9004C-81004 |
Bulb, Heater Control
2011-12 → —
|
S201,211 | ¥190 | |
| 55910R — Control Assy, Heater | ||||
| 55910-B5030 |
Control Assy, Heater
2011-12 → —
|
S201,211 EXT | ¥8,000 | |
| 55910-B5030 note |
Control Assy, Heater
2011-12 → —
|
S201,211 SPL | ¥8,000 | |
| 55910-B5040 |
Control Assy, Heater
2011-12 → —
|
S201,211 SPL | ¥8,000 | |
| 55937 — Knob, Heater Control Lever | ||||
| 55925-87202 |
Knob, Heater Control Lever
2011-12 → —
|
S201,211 | ¥370 | |
| 55950G — Nozzle Assy, Defroster | ||||
| 55950-B5020 |
Nozzle Assy, Defroster
2011-12 → —
|
S201,211 | ¥3,970 | |
| 87211R — Clip, Air Duct | ||||
| 90044-68159-N1 note |
Clip, Air Duct
2011-12 → 2014-07
ended
|
S201,211 | ¥150 | |
| 87220 — Duct Assy, Air | ||||
| 87211-B5020 note |
Duct Assy, Air
2011-12 → 2014-07
ended
|
S201,211 | ¥1,730 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
