Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01

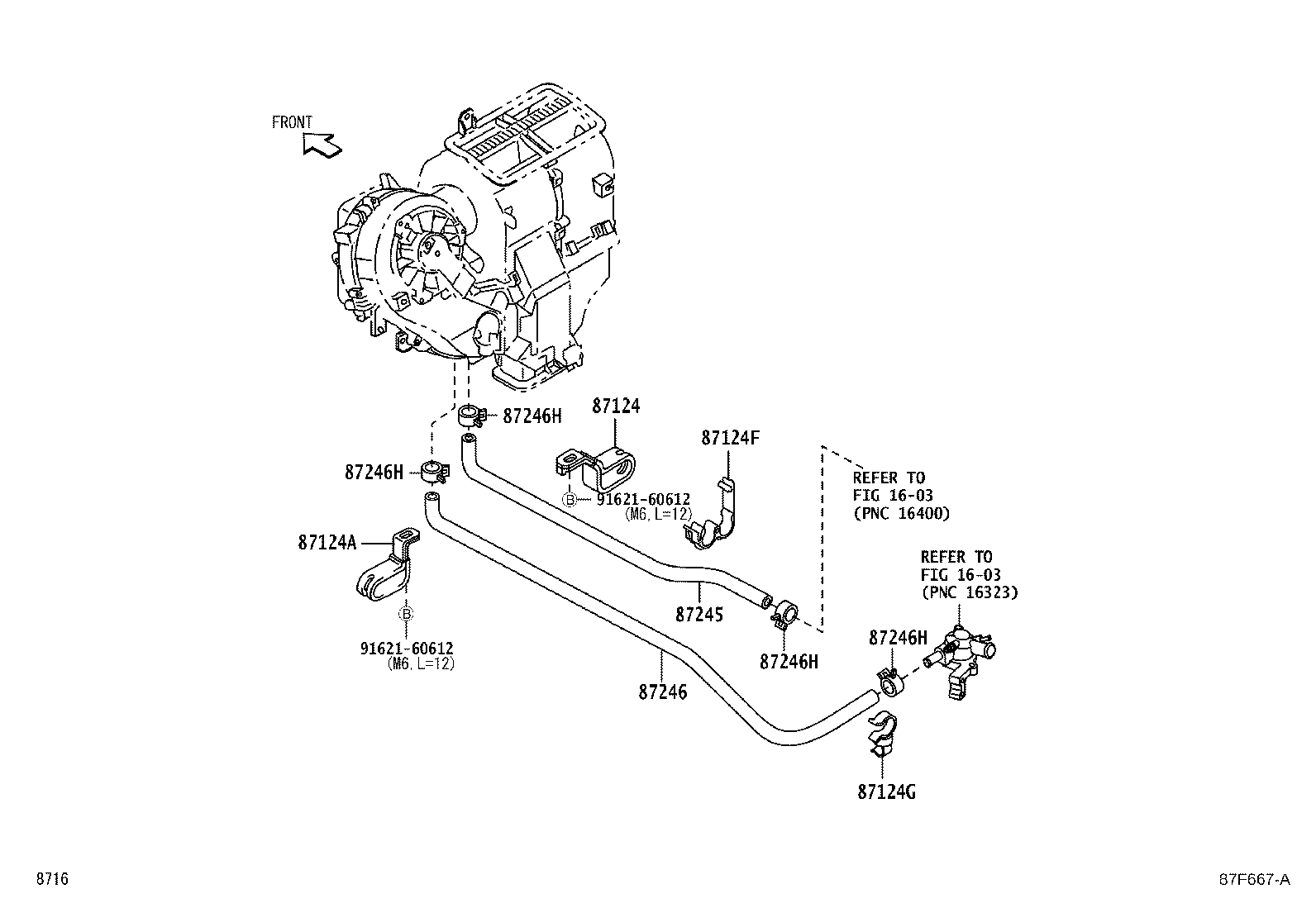

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87124 — Clamp, Heater | ||||
| 87124-B5020 |
Clamp, Heater
2011-12 → —
|
S201,211 | ¥670 | |
| 87124A — Clamp, Heater | ||||
| 90044-61759 |
Clamp, Heater
2011-12 → —
|
S201,211 | ¥440 | |
| 87124F — Clamp, Heater Hose, NO.1 | ||||
| 87124-B5010 |
Clamp, Heater Hose, NO.1
2011-12 → 2014-07
ended
|
S201,211 | ¥250 | |
| 87124G — Clamp, Heater Hose, NO.2 | ||||
| 87124-B5030 |
Clamp, Heater Hose, NO.2
2011-12 → —
|
S201,211 | ¥220 | |
| 87245 — Hose, Heater Water, Inlet | ||||
| 87245-B5110 |
Hose, Heater Water, Inlet
2011-12 → —
|
S201,211 | ¥2,890 | |
| 87246 — Hose, Heater Water, Outlet | ||||
| 87245-B5210 |
Hose, Heater Water, Outlet
2011-12 → —
|
S201,211 | ¥3,560 | |
| 87246H — Clip OR Clamp(FOR HEATER WATER HOSE) | ||||
| 88718-97209 |
Clip OR Clamp(FOR HEATER WATER HOSE)
2011-12 → —
|
S201,211 | ¥460 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
