Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

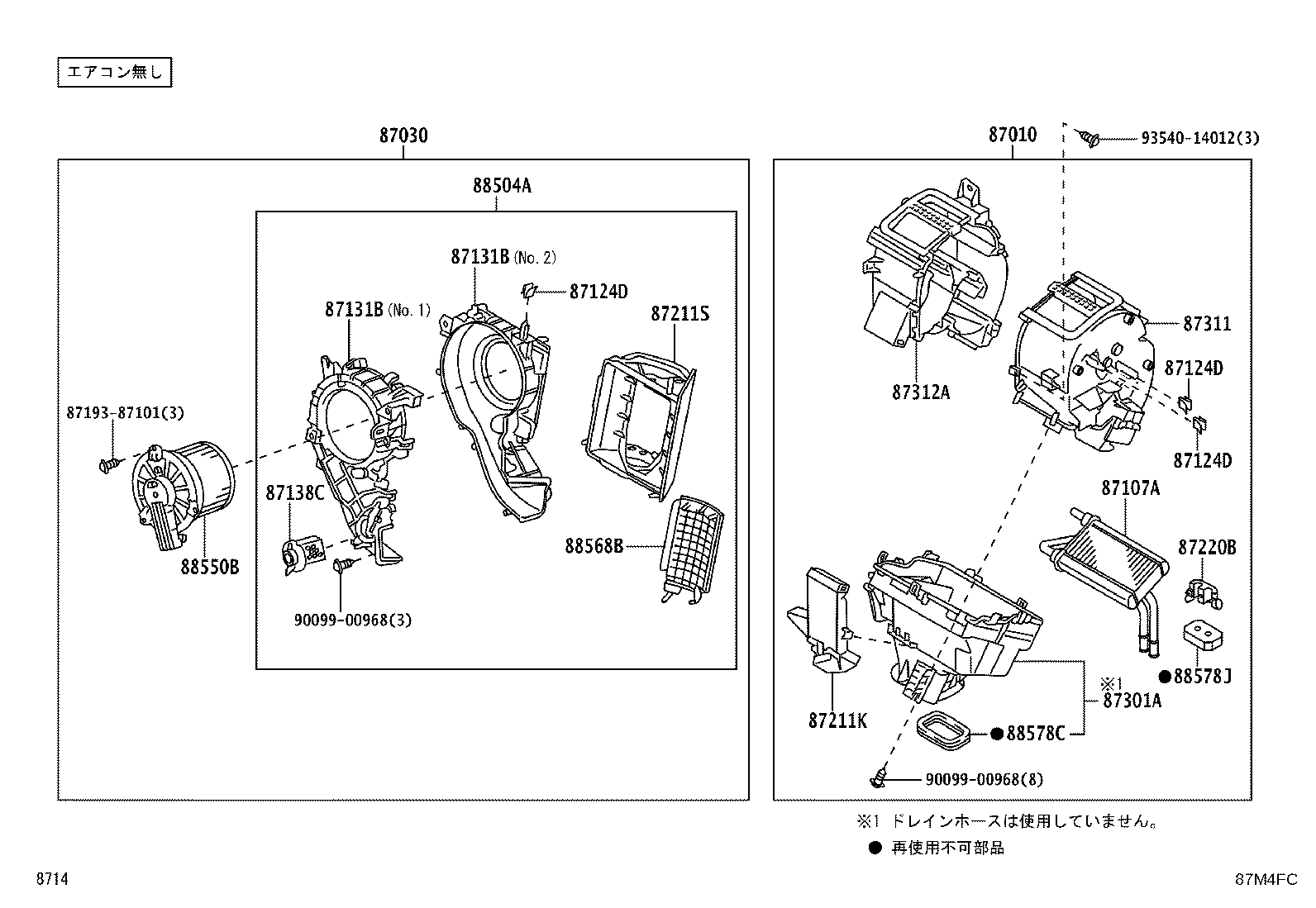

36 parts on this figure

Part number	Description	Fitment	Price
87010 — Unit Assy, Air Conditioner
87010-97507 note	Unit Assy, Air Conditioner 2011-12 → 2014-07 ended	S201,211 SPL	¥0
87010-97507	Unit Assy, Air Conditioner 2011-12 → 2014-07 ended	S201,211 EXT	¥0
87010-97508 note	Unit Assy, Air Conditioner 2011-12 → 2014-07 ended	S201,211 EXT	¥0
87010-97508 note	Unit Assy, Air Conditioner 2011-12 → 2014-07 ended	S201,211 SPL	¥0
87010-97509	Unit Assy, Air Conditioner 2011-12 → 2014-07 ended	S201,211 SPL	¥0
87010-97510 note	Unit Assy, Air Conditioner 2011-12 → 2014-07 ended	S201,211 SPL	¥0
87030 — Blower Assy, Air Conditioner
87030-B5040	Blower Assy, Air Conditioner 2011-12 → —	S201,211	¥36,700
87107A — Unit Sub-assy, Heater Radiator
87107-97510	Unit Sub-assy, Heater Radiator 2011-12 → 2014-07 ended	S201,211	¥28,200
87107-97511 note	Unit Sub-assy, Heater Radiator 2011-12 → 2014-07 ended	S201,211	¥28,200
87107-97511 note	Unit Sub-assy, Heater Radiator 2011-12 → 2014-07 ended	S201,211 SPL	¥28,200
87124D — Clamp, Heater, NO.3
87126-87501	Clamp, Heater, NO.3 2011-12 → 2014-07 ended	S201,211	—
87131B — Case, Heater Blower
87103-97504 note	Case, Heater Blower 2011-12 → —	S201,211	¥4,480
87103-97505 note	Case, Heater Blower 2011-12 → —	S201,211	¥4,480
87138C — Resistor, Blower
87138-B5010	Resistor, Blower 2011-12 → —	S201,211	—
87211K — Duct, Air
87211-97505	Duct, Air 2011-12 → —	S201,211	¥1,940
87211S — Duct, Air
87211-B5080	Duct, Air 2011-12 → —	S201,211	¥1,450
87220B — Duct Assy, Air
87211-97506	Duct Assy, Air 2011-12 → —	S201,211	¥460
87301A — Case Sub-assy, Heater
87301-B5010	Case Sub-assy, Heater 2011-12 → 2014-07 ended	S201,211 SPL	¥2,680
87301-B5020	Case Sub-assy, Heater 2011-12 → 2014-07 ended	S201,211 EXT	¥3,300
87301-B5020 note	Case Sub-assy, Heater 2011-12 → 2014-07 ended	S201,211 SPL	¥3,300
87301-B5020 note	Case Sub-assy, Heater 2011-12 → 2014-07 ended	S201,211 SPL	¥3,300
87311 — Case, Heater, NO.1
87311-97529	Case, Heater, NO.1 2011-12 → 2014-07 ended	S201,211 EXT	¥2,680
87311-97529 note	Case, Heater, NO.1 2011-12 → 2014-07 ended	S201,211 SPL	¥2,680
87311-97532 note	Case, Heater, NO.1 2011-12 → 2014-07 ended	S201,211 EXT	¥2,680
87311-97532 note	Case, Heater, NO.1 2011-12 → 2014-07 ended	S201,211 SPL	¥2,680
87311-97533	Case, Heater, NO.1 2011-12 → 2014-07 ended	S201,211 SPL	¥2,680
87311-97536 note	Case, Heater, NO.1 2011-12 → 2014-07 ended	S201,211 SPL	¥2,680
87312A — Case, Heater,NO.2
87311-97530	Case, Heater,NO.2 2011-12 → 2014-07 ended	S201,211 EXT	¥2,680
87311-97530 note	Case, Heater,NO.2 2011-12 → 2014-07 ended	S201,211 SPL	¥2,680
87311-97530 note	Case, Heater,NO.2 2011-12 → 2014-07 ended	S201,211 SPL	¥2,680
87311-97534	Case, Heater,NO.2 2011-12 → 2014-07 ended	S201,211 SPL	¥2,680
88504A — Case Sub-assy, Blower
87103-B5040	Case Sub-assy, Blower 2011-12 → —	S201,211	¥14,200
88550B — Motor Assy, Blower
88550-97501	Motor Assy, Blower 2011-12 → —	S201,211	—
88568B — Filter, Air
88568-B5040	Filter, Air 2011-12 → —	S201,211	¥2,750
88578C — Packing, Cooling Unit, NO.2
88578-97510	Packing, Cooling Unit, NO.2 2011-12 → 2014-07 ended	S201,211	—
88578J — Packing, Cool Box, NO.1
87127-97501	Packing, Cool Box, NO.1 2011-12 → —	S201,211	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
