Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

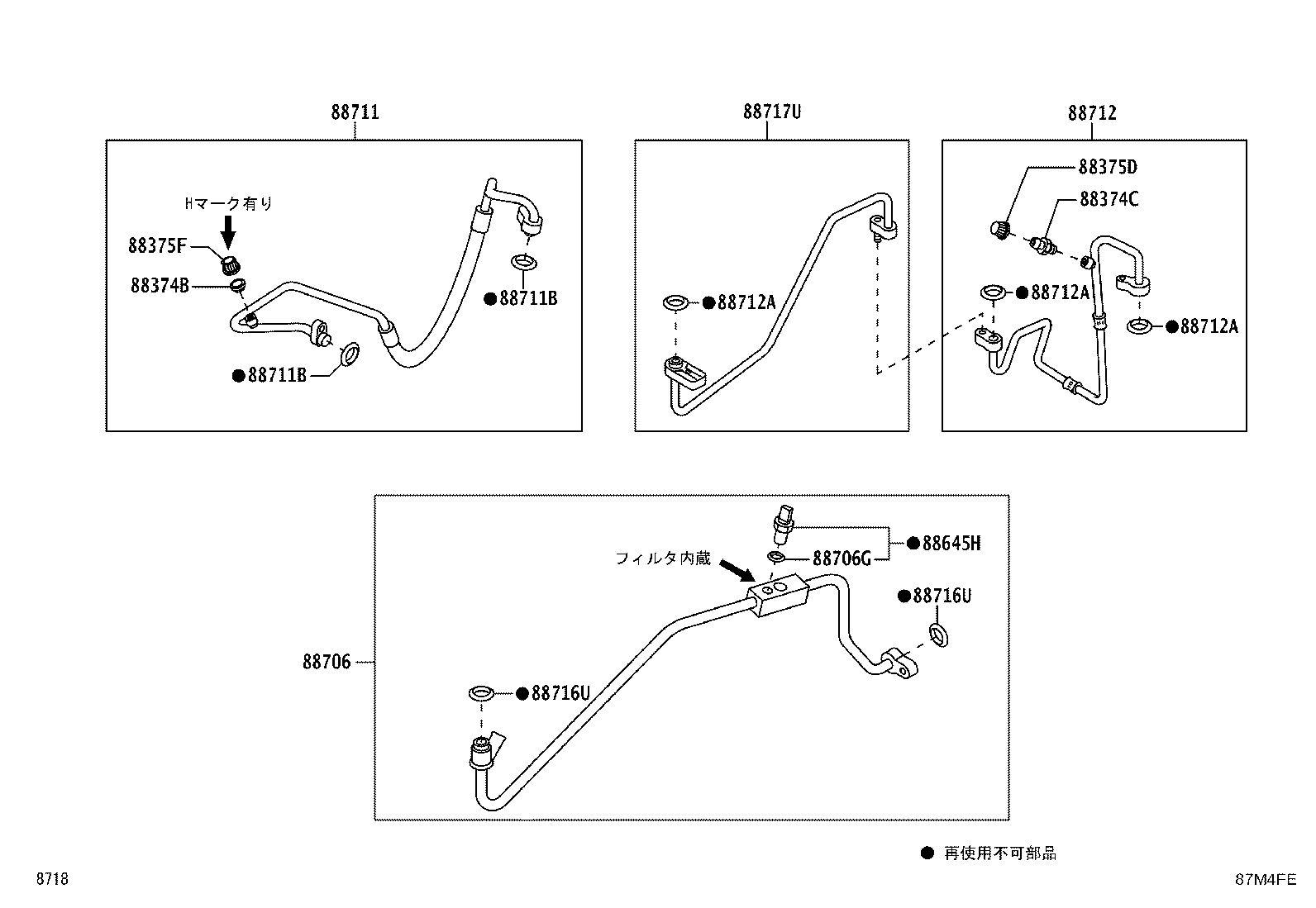

Exploded illustration 87M4FE 88711 — HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 (2 parts) 88706 — PIPE SUB-ASSY, LIQUID (2 parts) 88712 — HOSE, COOLER REFRIGERANT SUCTION, NO.1 (2 parts) 88374B — VALVE, SERVICE, NO.1 (2 parts) 88374C — VALVE, SERVICE, NO.2 (2 parts) 88375D — CAP, SERVICE VALVE, NO.2 (2 parts) 88717U — TUBE, SUCTION, NO.1 (2 parts) 88645H — SWITCH, PRESSURE NO.1 (2 parts) 88711B — RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) (2 parts) 88711B — RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) (2 parts) 88712A — RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) (2 parts) 88712A — RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) (2 parts) 88712A — RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) (2 parts) 88716U — RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) (2 parts) 88716U — RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) (2 parts) 88375F — CAP, SERVICE VALVE, NO.3 (2 parts) 88706G — RING, O(FOR LIQUID TUBE) (2 parts)
87M4FE · 17 callouts Full size ↗
26 parts on this figure
Part number Description Fitment Price
88374B — Valve, Service, NO.1
88374-87601 note Valve, Service, NO.1
2011-12 → —
S201,211 SPL ¥350
88374-87601 Valve, Service, NO.1
2011-12 → —
S201,211 EXT ¥350
88374C — Valve, Service, NO.2
88374-87601 Valve, Service, NO.2
2011-12 → 2014-07 ended
S201,211 EXT ¥350
88374-87601 note Valve, Service, NO.2
2011-12 → 2014-07 ended
S201,211 SPL ¥350
88375D — Cap, Service Valve, NO.2
88375-87601 Cap, Service Valve, NO.2
2011-12 → 2014-07 ended
S201,211 EXT ¥0
88375-87601 note Cap, Service Valve, NO.2
2011-12 → 2014-07 ended
S201,211 SPL ¥0
88375F — Cap, Service Valve, NO.3
88375-87603 Cap, Service Valve, NO.3
2011-12 → 2014-07 ended
S201,211 EXT —
88375-87603 note Cap, Service Valve, NO.3
2011-12 → 2014-07 ended
S201,211 SPL —
88645H — Switch, Pressure NO.1
88645-87602 Switch, Pressure NO.1
2011-12 → 2014-07 ended
S201,211 EXT —
88645-87602 note Switch, Pressure NO.1
2011-12 → 2014-07 ended
S201,211 SPL —
88706 — Pipe Sub-assy, Liquid
88716-B5030 note Pipe Sub-assy, Liquid
2011-12 → 2014-07 ended
S201,211 EXT ¥11,800
88716-B5030 note Pipe Sub-assy, Liquid
2011-12 → 2014-07 ended
S201,211 SPL ¥11,800
88706G — Ring, O(FOR LIQUID TUBE)
15188-B5090 note Ring, O(FOR LIQUID TUBE)
2011-12 → 2014-07 ended
S201,211 SPL ¥160
15188-B5090 Ring, O(FOR LIQUID TUBE)
2011-12 → 2014-07 ended
S201,211 EXT ¥160
88711 — Hose, Cooler Refrigerant Discharge, NO.1
88711-B5090 Hose, Cooler Refrigerant Discharge, NO.1
2011-12 → 2014-07 ended
S201,211 EXT ¥11,000
88711-B5090 note Hose, Cooler Refrigerant Discharge, NO.1
2011-12 → 2014-07 ended
S201,211 SPL ¥11,000
88711B — Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
15188-87402 Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
2011-12 → 2014-07 ended
S201,211 EXT ¥190
15188-87402 note Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
2011-12 → 2014-07 ended
S201,211 SPL ¥190
88712 — Hose, Cooler Refrigerant Suction, NO.1
88712-B5030 Hose, Cooler Refrigerant Suction, NO.1
2011-12 → 2014-07 ended
S201,211 EXT ¥12,200
88712-B5030 note Hose, Cooler Refrigerant Suction, NO.1
2011-12 → 2014-07 ended
S201,211 SPL ¥12,200
88712A — Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
15188-87403 Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
2011-12 → 2014-07 ended
S201,211 EXT ¥210
15188-87403 note Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
2011-12 → 2014-07 ended
S201,211 SPL ¥210
88716U — Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
15188-87401 Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
2011-12 → 2014-07 ended
S201,211 EXT ¥150
15188-87401 note Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
2011-12 → 2014-07 ended
S201,211 SPL ¥150
88717U — Tube, Suction, NO.1
88717-B5010 Tube, Suction, NO.1
2011-12 → 2014-07 ended
S201,211 EXT ¥6,500
88717-B5010 note Tube, Suction, NO.1
2011-12 → 2014-07 ended
S201,211 SPL ¥6,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
