Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Housing & Transmission Case (MTM)

13 part groups · 2 illustrations

Illustrations

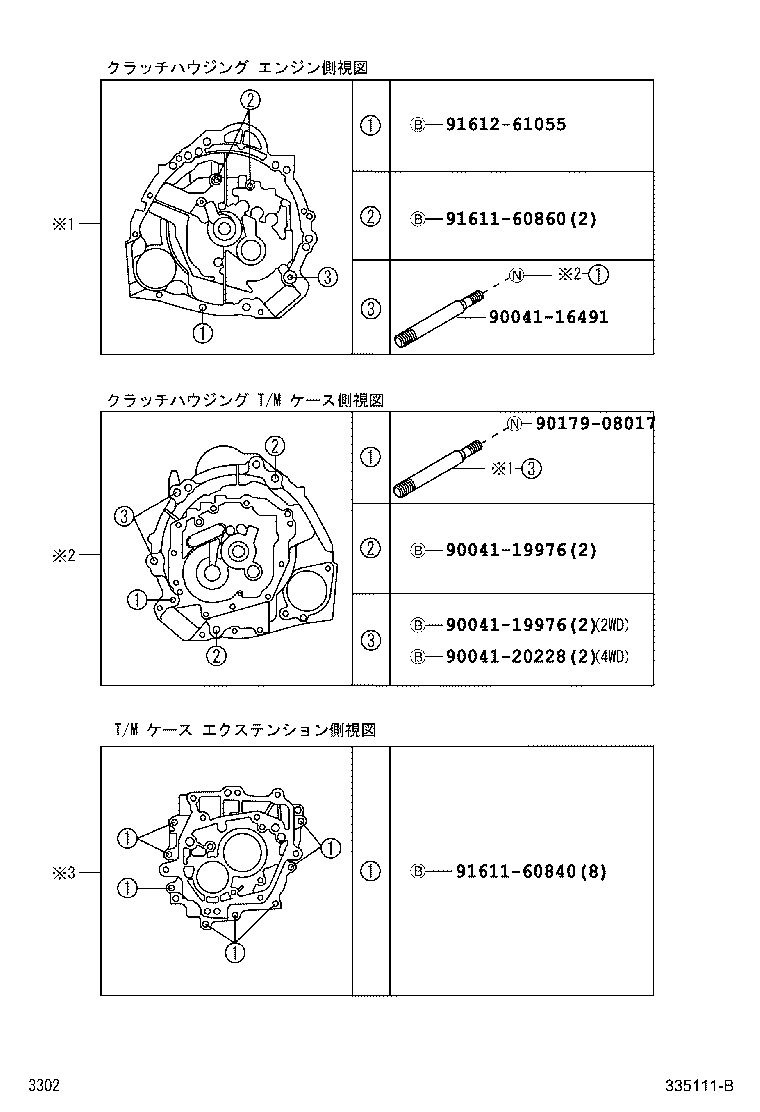

Figure 335444A 335444A 2011-12 → — Figure 335111B 335111B 2011-12 → —

Part groups

PNCDescription
31111 Housing, Clutch
31111B Plug(FOR CLUTCH HOUSING)
31121 Cover, Clutch Housing, NO.1
31128 Cover, Clutch Housing Under
33104A Gasket, Drain Plug(MTM)
33111 Case, Manual Transmission
33111A Plug, Manual Transmission Case
33111C Plug(FOR TRANSMISSION CASE)
33111Q Seal, Oil(FOR TRANSMISSION CASE)
33111Y Seal, Oil(FOR TRANSMISSION CASE)
33124D Pipe, Oil Receiver, NO.2(MTM)
33155A Stiffener, Power Train
33449B Magnet, Transmission
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
