Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

16 part groups · 2 illustrations

Illustrations

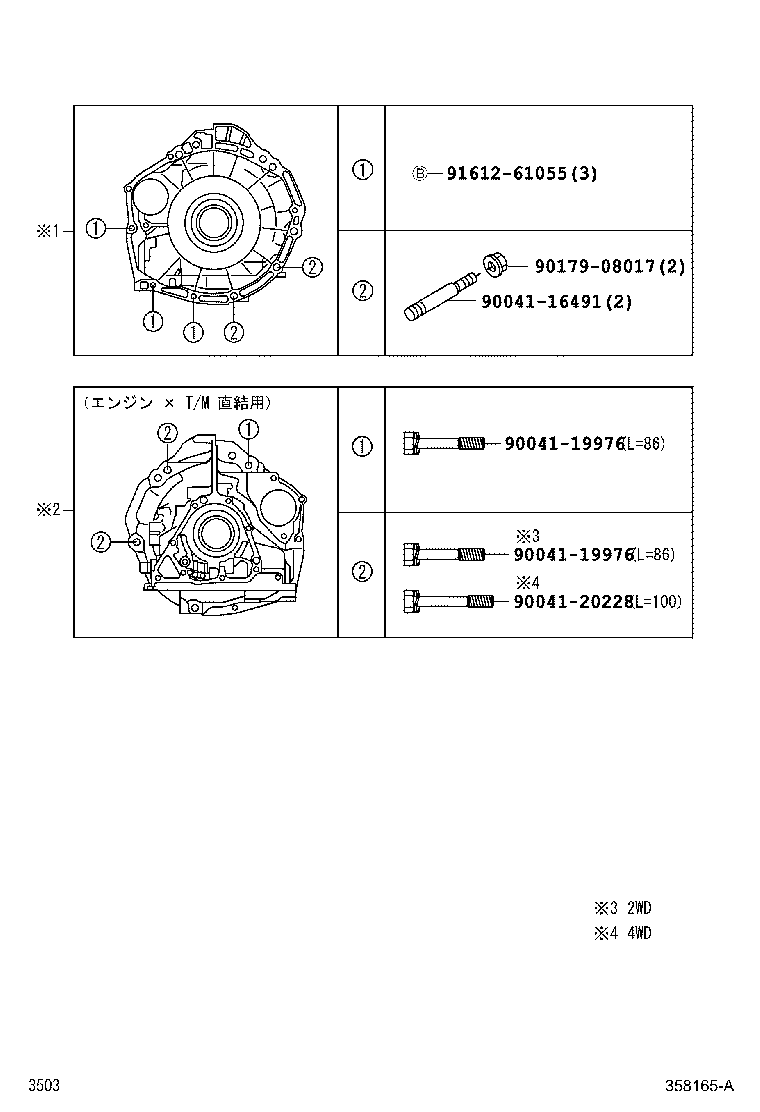

Figure 35A180A 35A180A 2011-12 → — Figure 358165A 358165A 2011-12 → —

Part groups

PNCDescription
33155B Stiffener, Power Train
35013 Tube Sub-assy, Transmission Oil Filler
35013B Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35103 Gage Sub-assy, Transmission Oil Level
35104B Plug, Breather, NO.1 (ATM)
35104J Bracket, Breather Plug Hose
35104R Plug, NO.2 (FOR TRANSAXLE CASE)
35104V Hose (FOR BREATHER PLUG)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35116 Seal, Transmission Case Dust
35194 Cover, Transmission Case Dust
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
35507D Lever, Transmission Control Shaft
84248A Clamp, Switch Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
