Toyota Pixis Truck
2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan
Supported model
Data version 2015-01
Instrument Panel & Glove Compartment
29 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55014 | Stay Sub-assy, Cowl, LH |
| 55062 | Register Sub-assy, Instrument Panel, N0.2 |

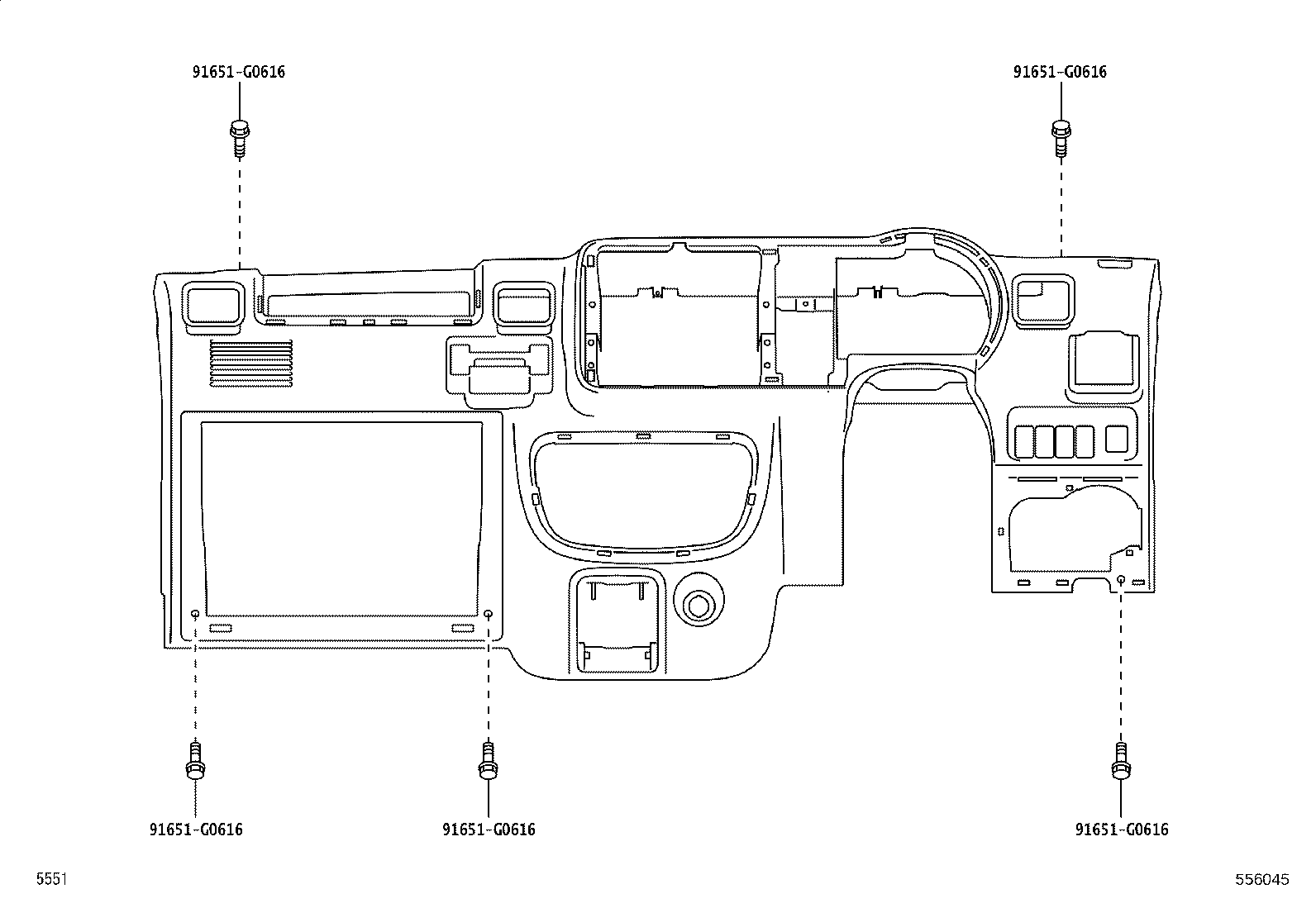

| 55301 | Panel Sub-assy, Instrument |
| 55305C | Reinforcement Sub-assy, Instrument Panel |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55350 | Brace Assy, Instrument Panel |
| 55374A | Bracket, Instrument Panel Lower Mounting, RH |
| 55375A | Bracket, Instrument Panel Lower Mounting, LH |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55441 | Box, Instrument Panel |
| 55441C | Box, Instrument Panel Coin |
| 55448B | Cover, Oil Reservoir Tank, RH |
| 55461B | Box, Instrument Panel, Center |
| 55475B | Garnish, Instrument Cluster Finish Panel, Center |
| 55522B | Cover, Radio Tuner Opening |
| 55539E | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55551A | Door, Glove Compartment, Outer |
| 55557A | Cushion, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55561A | Striker, Glove Compartment Door Lock |
| 55604B | Holder Sub-assy, Instrument Panel Cup |
| 55620 | Holder Assy, Instrument Panel Cup |
| 55625C | Tray, Instrument Panel Cup Holder |
| 55670A | Register Assy, Instrument Panel, Center |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
