Toyota Pixis Truck

2011-11 → 2014-07 · chassis S201U,S211U · catalogue 897110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

10 part groups · 8 illustrations

Illustrations

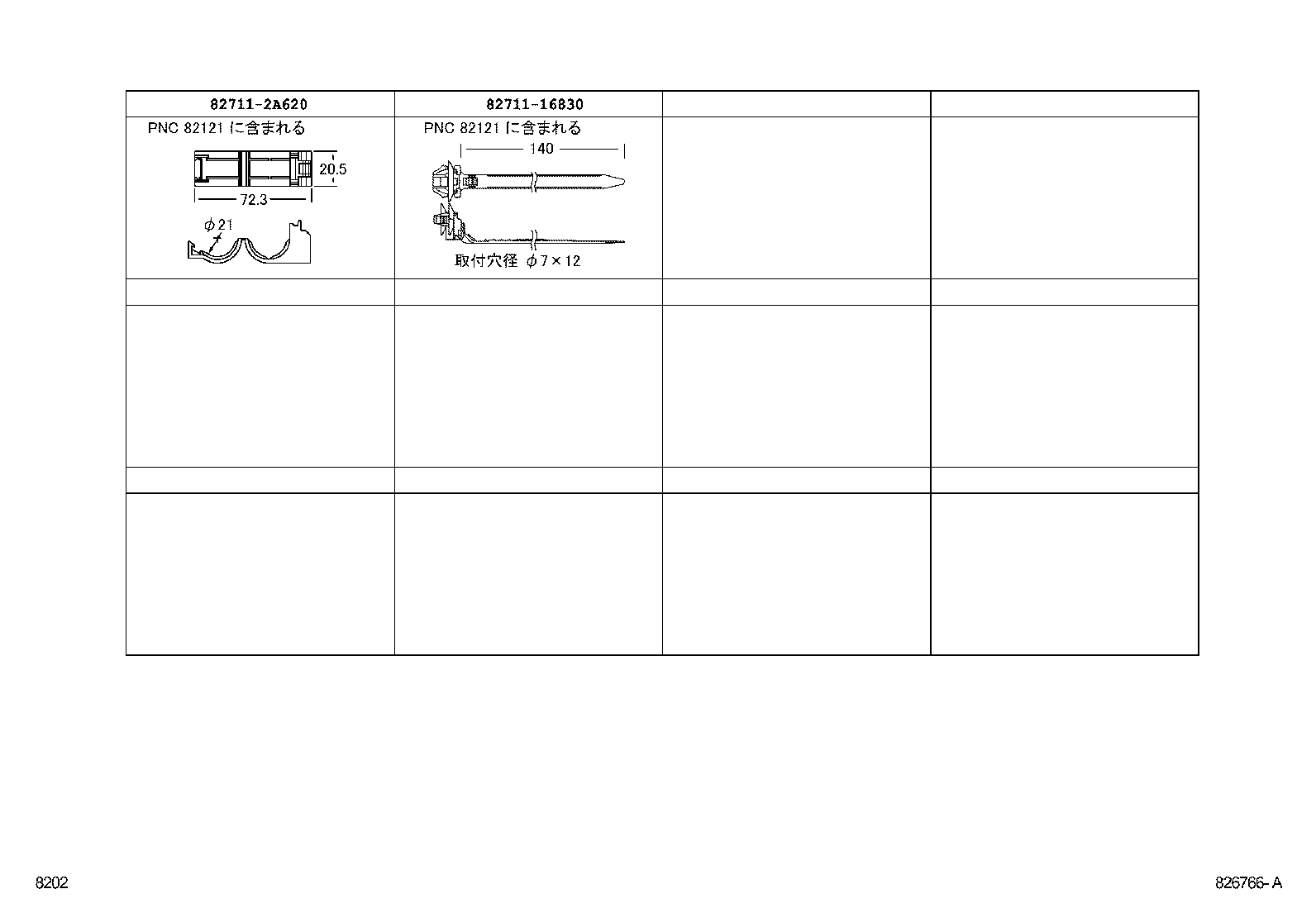

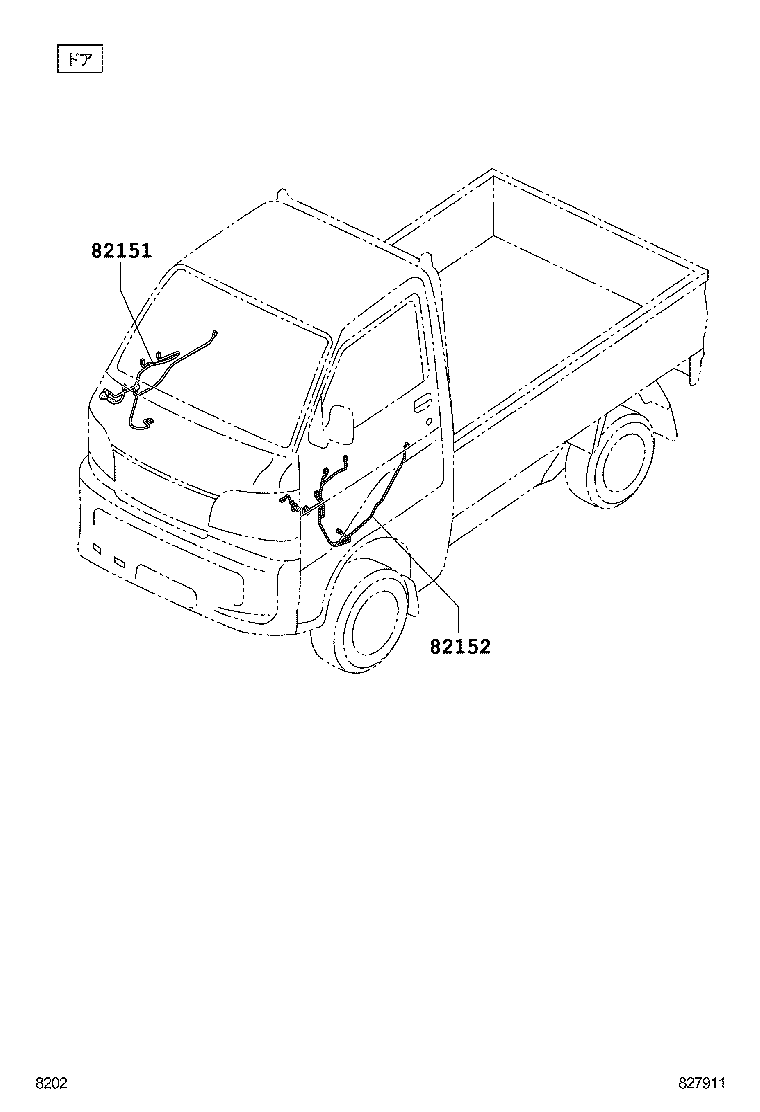

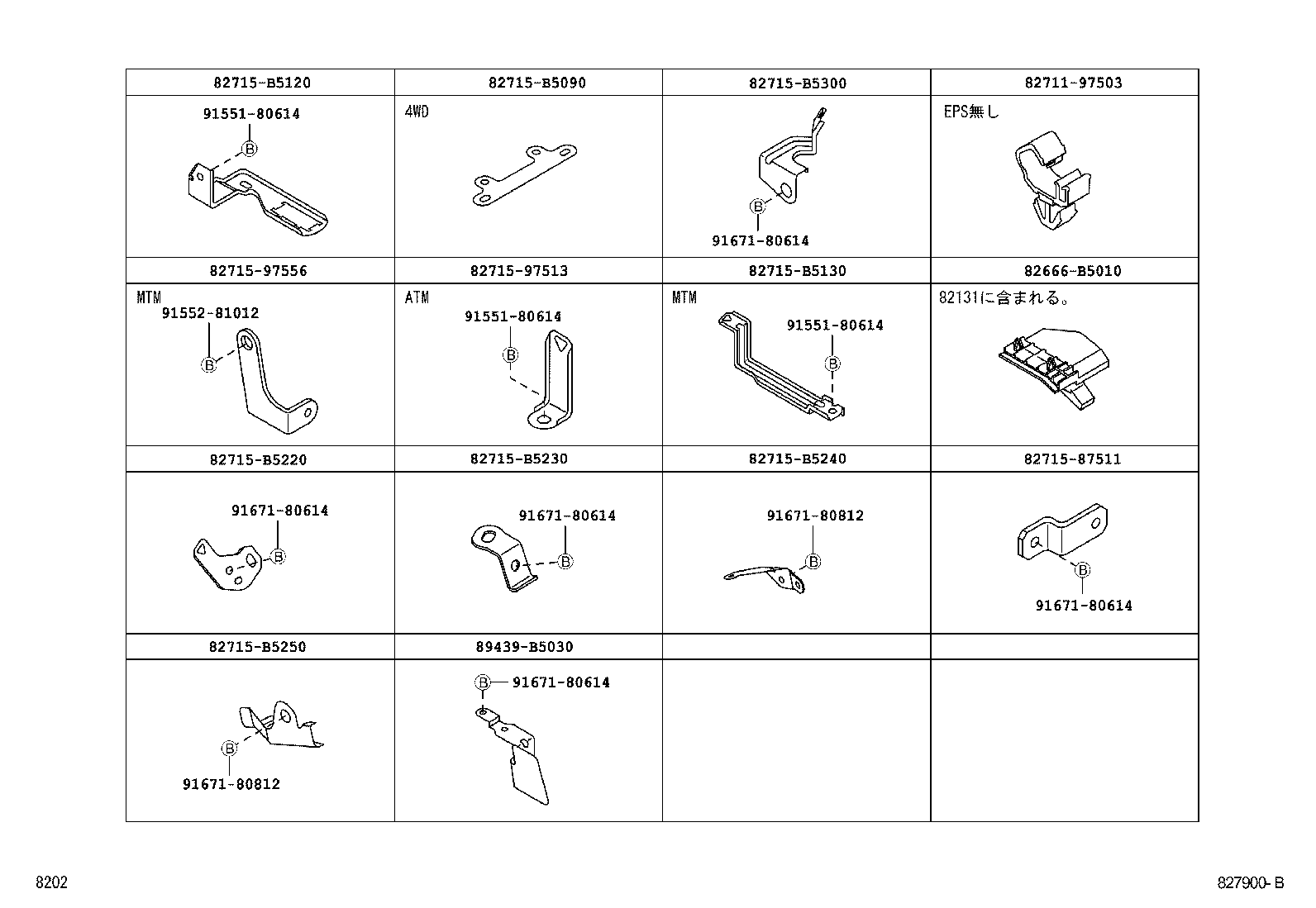

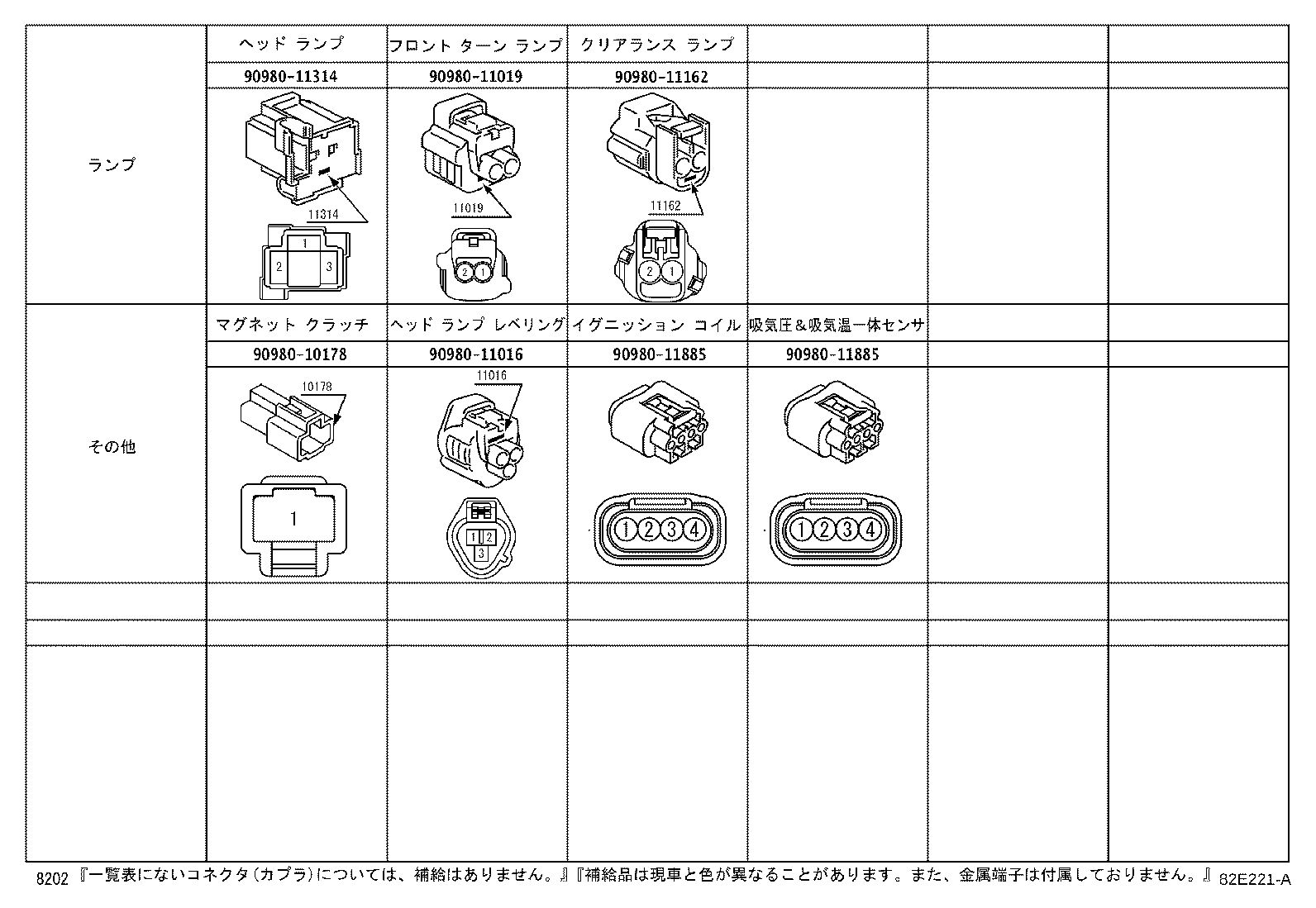

Figure 828877D 828877D 2011-12 → — Figure 827897B 827897B 2011-12 → — Figure 827898 827898 2011-12 → — Figure 827911 827911 2011-12 → — Figure 827899 827899 2011-12 → — Figure 827900B 827900B 2011-12 → — Figure 826766A 826766A 2011-12 → — Figure 82E221A 82E221A 2011-12 → —

Part groups

PNCDescription
82001D Cable, Bond, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82415 Wire, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
