Toyota Pixis Truck
2014-09 → present · chassis S500U,S510U · catalogue 897120 · Japan
Supported model
Data version 2020-09

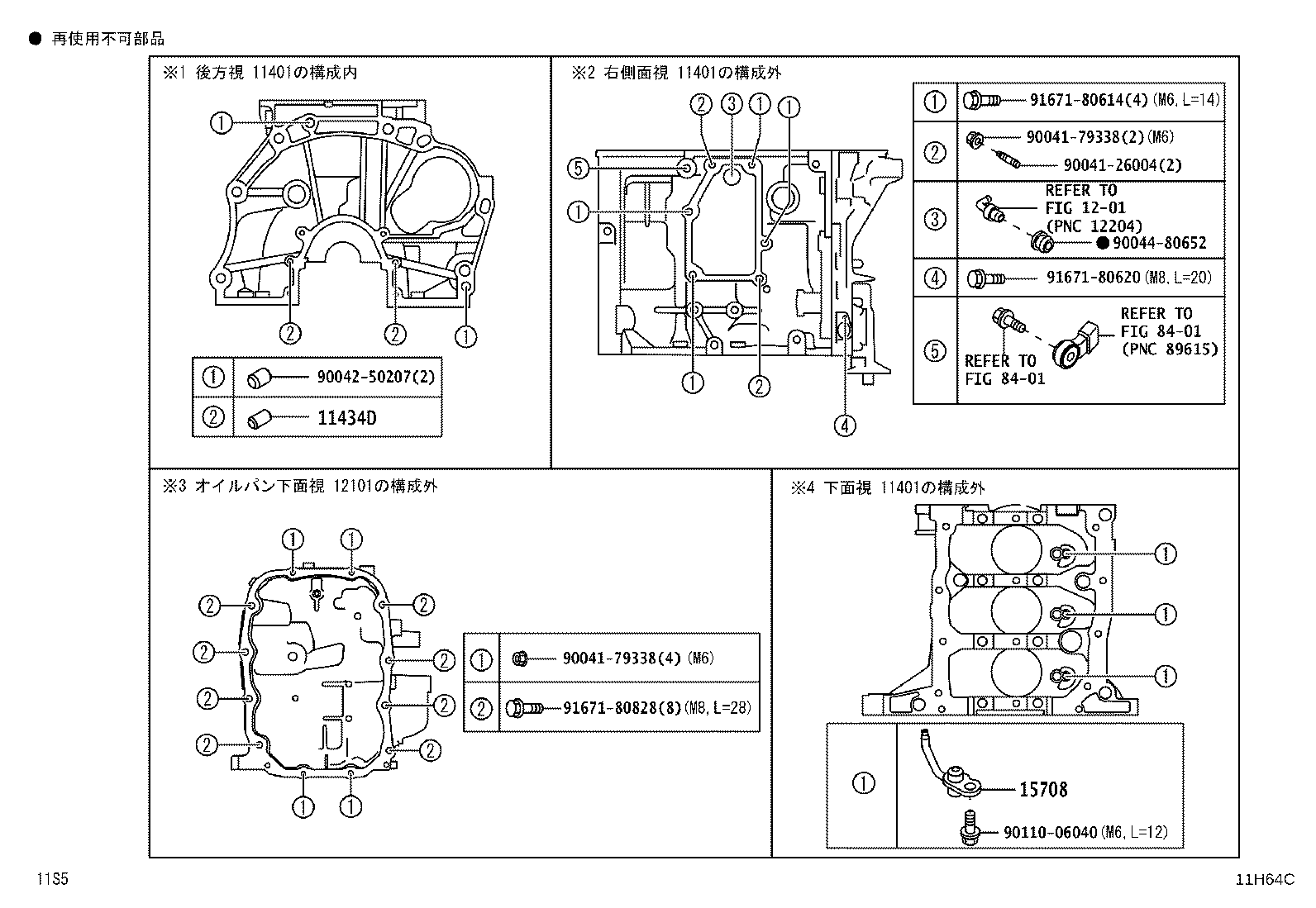

Cylinder Block
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11361J | Cover, Flywheel Housing Under |
| 11401 | Block Sub-assy, Cylinder |
| 11401G | Sensor, Crank Position |
| 11411A | Pin, Ring(FOR CYLINDER BLOCK NO.1 ) |
| 11415 | Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) |
| 11415J | Gasket(FOR DRAIN COCK) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11427 | Bolt, Stud(FOR TIMING CHAIN COVER SET) |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11434Y | Pin, Straight(FOR OIL PAN) |
| 11452 | Guide, Oil Level Gage |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12216F | Plate, Ventilation Baffle |
| 15301 | Gage Sub-assy, Oil Level |
| 15301A | Ring, O(FOR OIL LEVEL GAGE) |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
