Toyota Pixis Truck

2014-09 → present · chassis S500U,S510U · catalogue 897120 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

11 part groups · 2 illustrations

Illustrations

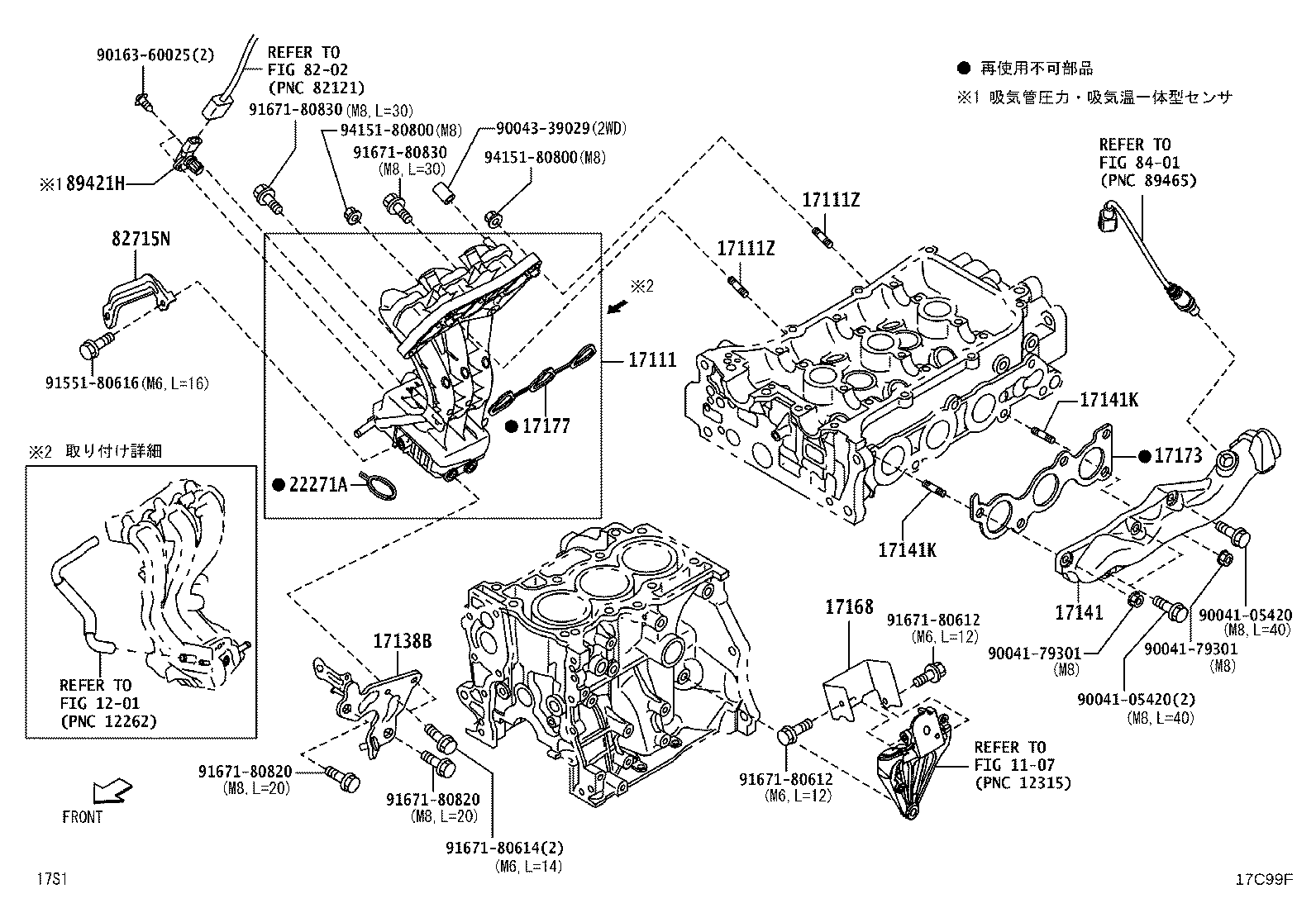

Figure 17C99E 17C99E 2014-09 → 2015-03 Figure 17C99F 17C99F 2015-03 → —

Part groups

PNCDescription
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
22271A Gasket, Throttle Body
82715N Bracket, Wiring Harness Clamp
89421H Sensor, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
