Toyota Pixis Truck
2014-09 → present · chassis S500U,S510U · catalogue 897120 · Japan
Supported model
Data version 2020-09

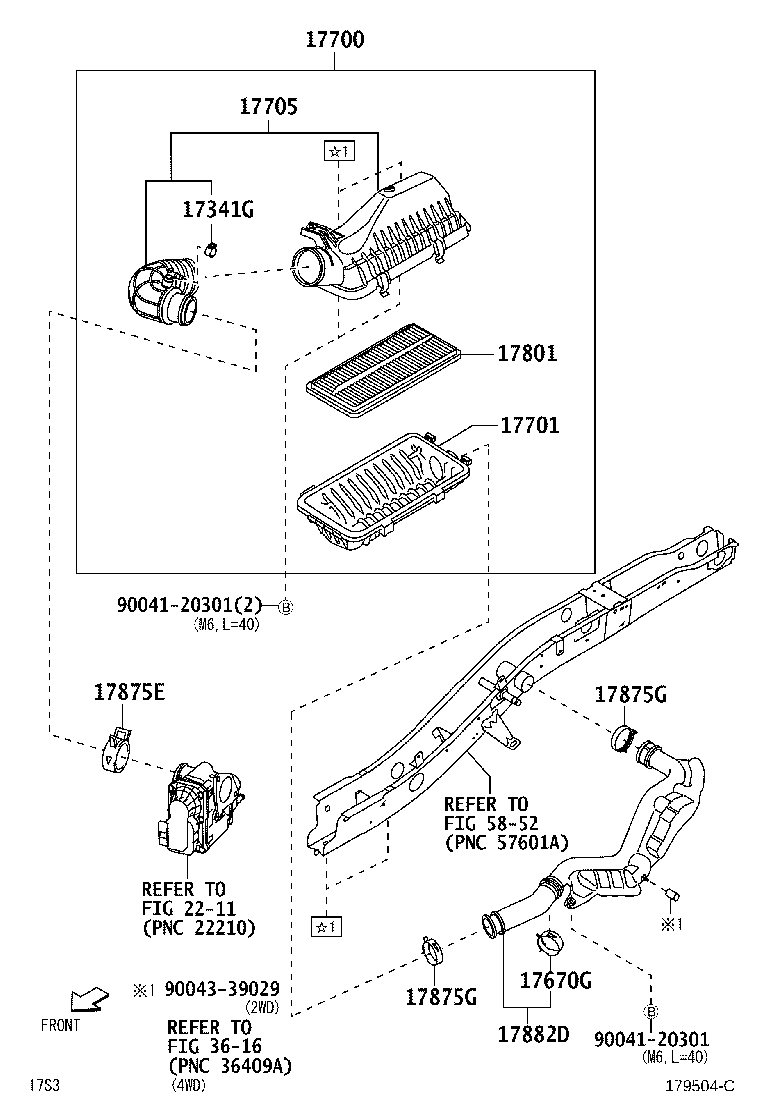

Air Cleaner
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17670G | Clip(FOR AIR HOSE NO.1) |
| 17700 | Cleaner Assy, Air |
| 17701 | Case Sub-assy, Air Cleaner |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17875E | Clip(FOR HOSE, NO.2) |
| 17875G | Clip(FOR HOSE, NO.3) |
| 17881D | Tube, Union(FOG AIR CLEANER HOSE) |
| 17882D | Hose, Cool Air Intake |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
