Toyota Pixis Truck

2014-09 → present · chassis S500U,S510U · catalogue 897120 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Extension Housing (ATM)

7 part groups · 2 illustrations

Illustrations

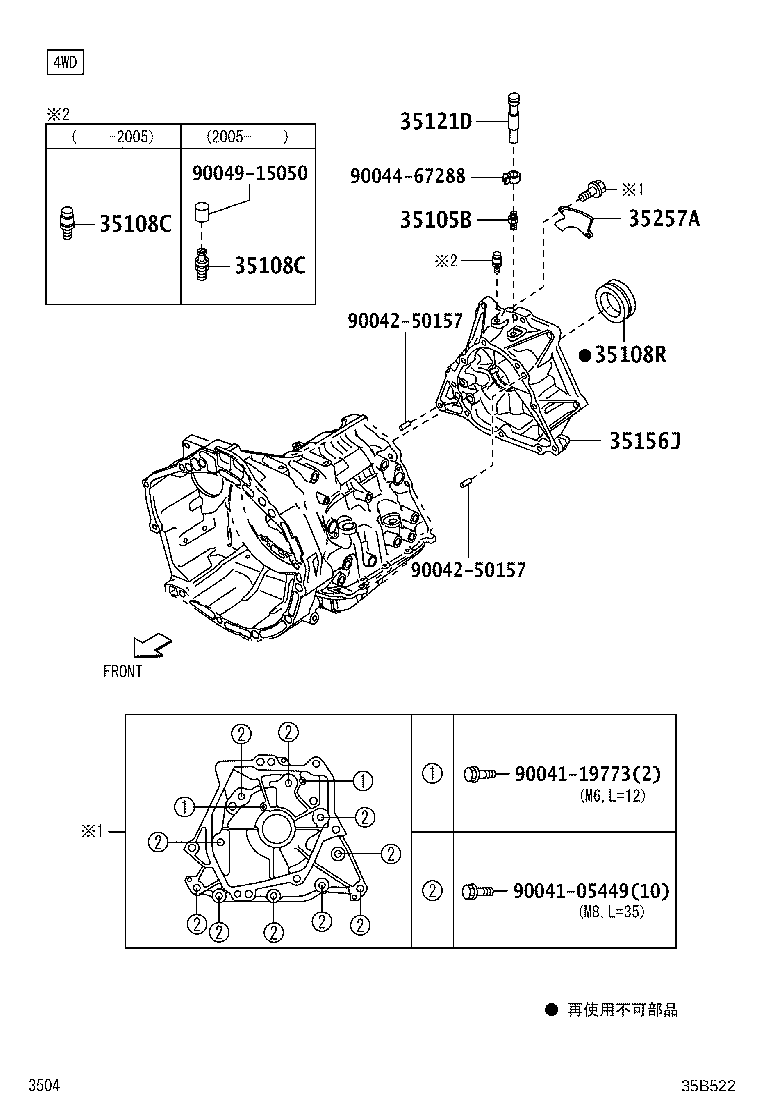

Figure 35B521 35B521 2014-09 → — Figure 35B522 35B522 2014-09 → —

Part groups

PNCDescription
35105B Plug, Breather
35108 Housing Sub-assy, Extension (ATM)
35108C Plug (FOR AUTOMATIC EXTENSION HOUSING)
35108R Seal, Oil (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
35121D Hose, Transmission Breather
35156J Cover, Transmission Case Rear Adapter
35257A Plate, Oil Guide
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
