Toyota Pixis Truck
2014-09 → present · chassis S500U,S510U · catalogue 897120 · Japan
Supported model
Data version 2020-09

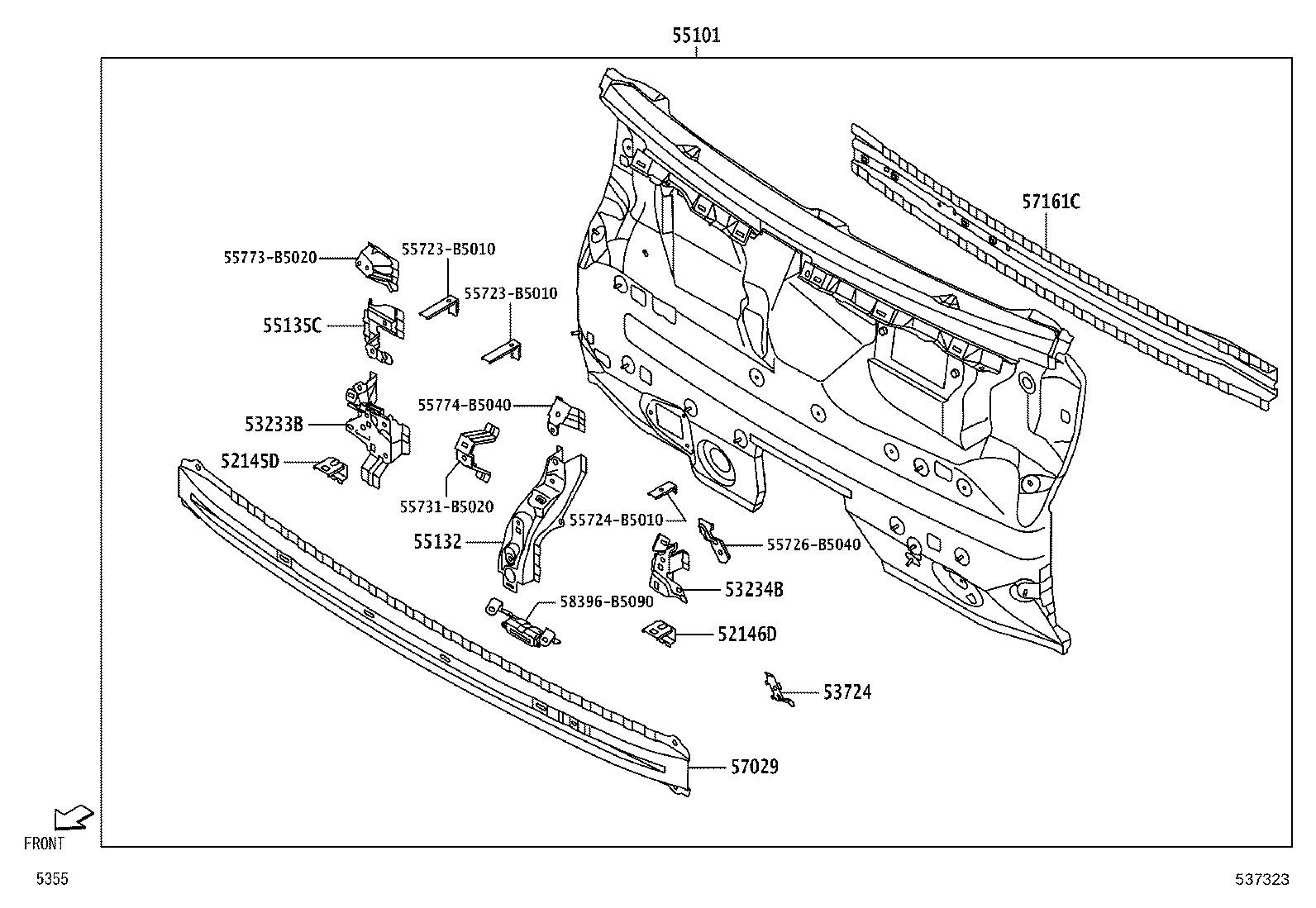

Front Fender Apron & Dash Panel
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52145D | Bracket, Front Bumper Side Mounting, RH |
| 52146D | Bracket, Front Bumper Side Mounting, LH |
| 53233B | Bracket, Headlamp, Inner RH |
| 53234B | Bracket, Headlamp, Inner LH |
| 53724 | Bracket, Clamp |
| 55101 | Panel Sub-assy, Dash |
| 55132 | Reinforcement, Dash Panel, NO.2 |
| 55135C | Bracket, Brake Pedal, NO.2 |
| 57029 | Member Sub-assy, Front Cross, Upper |
| 57161C | Member, Front Cross |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
