Toyota Pixis Truck
2014-09 → present · chassis S500U,S510U · catalogue 897120 · Japan
Supported model
Data version 2020-09

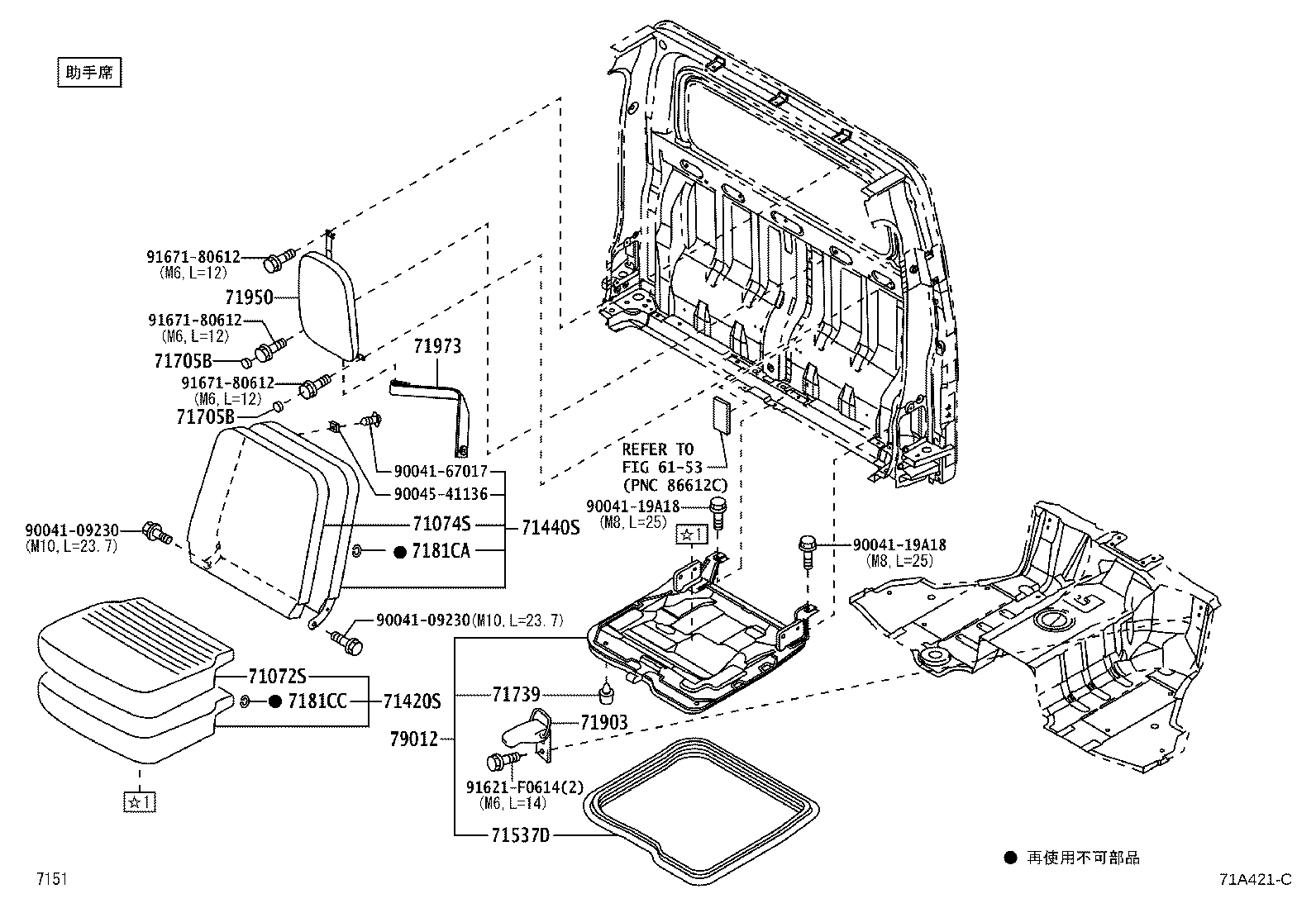

Seat & Seat Track
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58410T | Cover Assy, Engine Service Hole, RH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71537C | Protector, Front Seat Cushion Edge, RH |
| 71537D | Protector, Front Seat Cushion Edge, LH |
| 71705B | Cap(FOR FRONT SEATBACK BOARD) |
| 71739 | Cushion, Seat Support |
| 7181C | Ring, Hog, Small (FOR FRONT SEATBACK) |
| 7181CA | Ring, Hog, Small (FOR FRONT SEATBACK) |
| 7181CB | Ring, Hog, Small (FOR FRONT SEAT CUSHION) |
| 7181CC | Ring, Hog, Small (FOR FRONT SEAT CUSHION) |
| 71903 | Catch Sub-assy, Seat Cushion, Front |
| 71950 | Headrest Assy, Front Seat |
| 71973 | Band, Engine Service Hole Cover Support |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72301A | Wire Sub-assy, Seat Track Equalizing, RH |
| 79011 | Cover Sub-assy, NO.1 Seat Cushion, RH |
| 79012 | Cover Sub-assy, NO.1 Seat Cushion, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
