Toyota Pixis Truck

2014-09 → present · chassis S500U,S510U · catalogue 897120 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

8 part groups · 3 illustrations

Illustrations

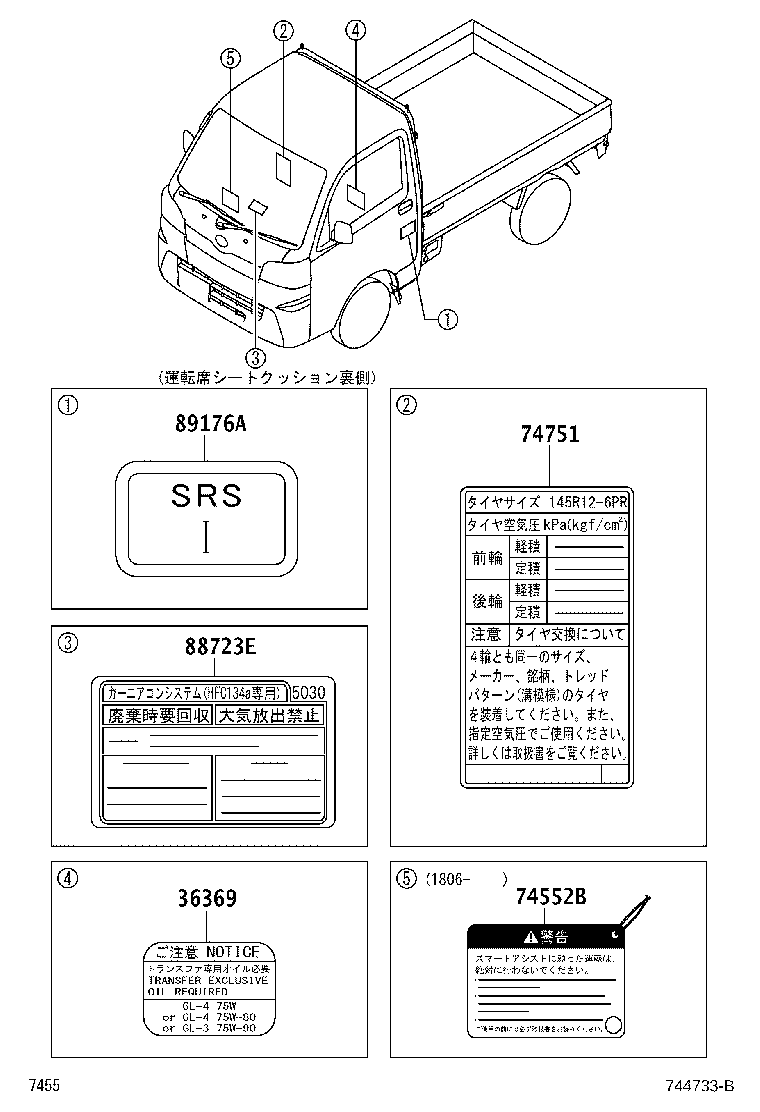

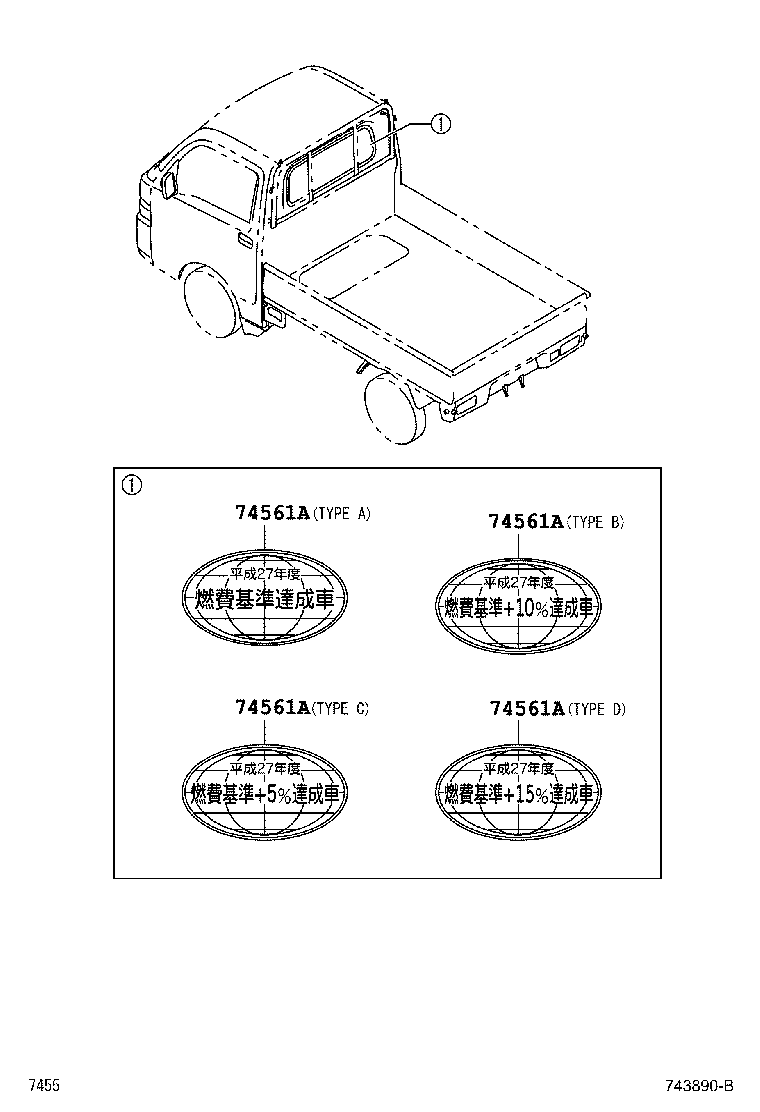

Figure 745646 745646 2014-09 → — Figure 744733B 744733B 2014-09 → — Figure 743890B 743890B 2014-09 → —

Part groups

PNCDescription
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
36369 Label, Transfer Information
74552B Label, Safety Caution
74561A Label, Fuel Consumption Information
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
