Toyota Pixis Truck
2014-09 → present · chassis S500U,S510U · catalogue 897120 · Japan
Supported model
Data version 2020-09

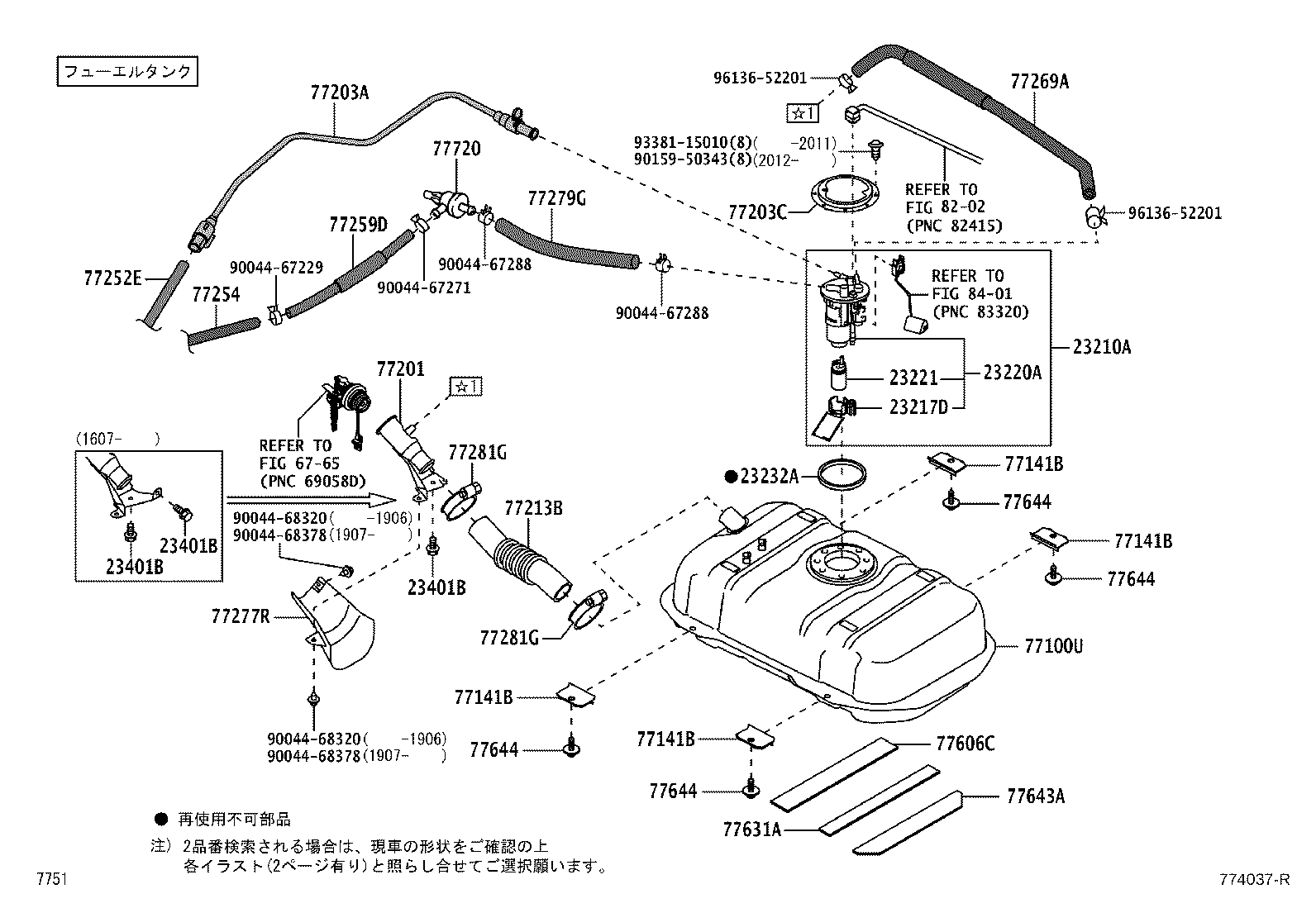

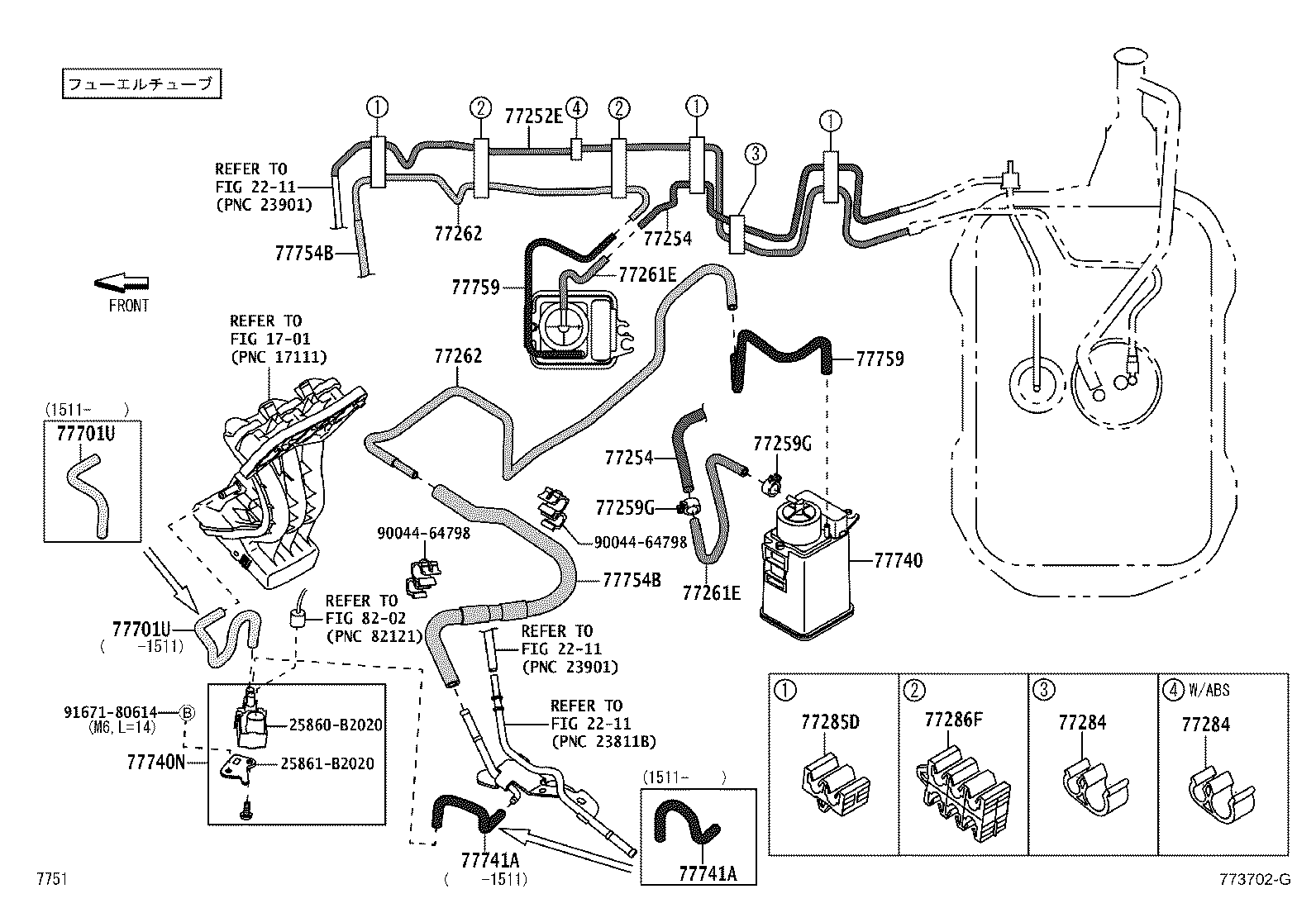

Fuel Tank & Tube
39 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 23210A | Pump Assy, Fuel W/Motor & Bracket |
| 23217D | Filter, Fuel Pump |
| 23220A | Pump Assy, Fuel W/Filter |
| 23221 | Pump, Fuel |
| 23232A | Gasket, Fuel Pump |
| 23300J | Filter Assy, Fuel |
| 23401B | Bolt |
| 77100U | Tank Sub-assy, Fuel |
| 77141B | Reinforcement, Fuel Tank Flange, NO.1 |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77203A | Tube Sub-assy, Fuel Suction |
| 77203C | Bracket, Fuel Pump |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77252E | Tube, Fuel Main, NO.2 (FOR FRONT FUEL MAIN) |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77259D | Hose, Fuel, NO.1 |
| 77259G | Clip, Fuel Hose |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77262 | Tube, Fuel Emission, NO.2 |
| 77269A | Hose, Fuel Tank Breather |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77279G | Hose, Fuel, NO.2 |
| 77281G | Clamp, Fuel Hose |
| 77284 | Clamp, Fuel Tube |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77380 | Valve Assy, Fuel Cut Off |
| 77606C | Protector, Fuel Tank, NO.2 |
| 77631A | Protector, Fuel Tank, Lower Center |
| 77643A | Protector, Fuel Tank, NO.3 |
| 77644 | Bolt, Fuel Tank |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77701U | Hose, Fuel (FOR CHECK VALVE) |
| 77720 | Valve Sub-assy, Safety |
| 77740 | Canister Assy, Charcoal |
| 77740N | Valve, Vacuum Switching(FOR CHARCOAL CANISTER) |
| 77741A | Hose, Fuel, (FOR VAPOR FEED) |
| 77754B | Hose, Charcoal Canister Outlet |
| 77759 | Hose, Charcoal Canister |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
