Toyota Pixis Truck
2014-09 → present · chassis S500U,S510U · catalogue 897120 · Japan
Supported model
Data version 2020-09
Fog Lamp

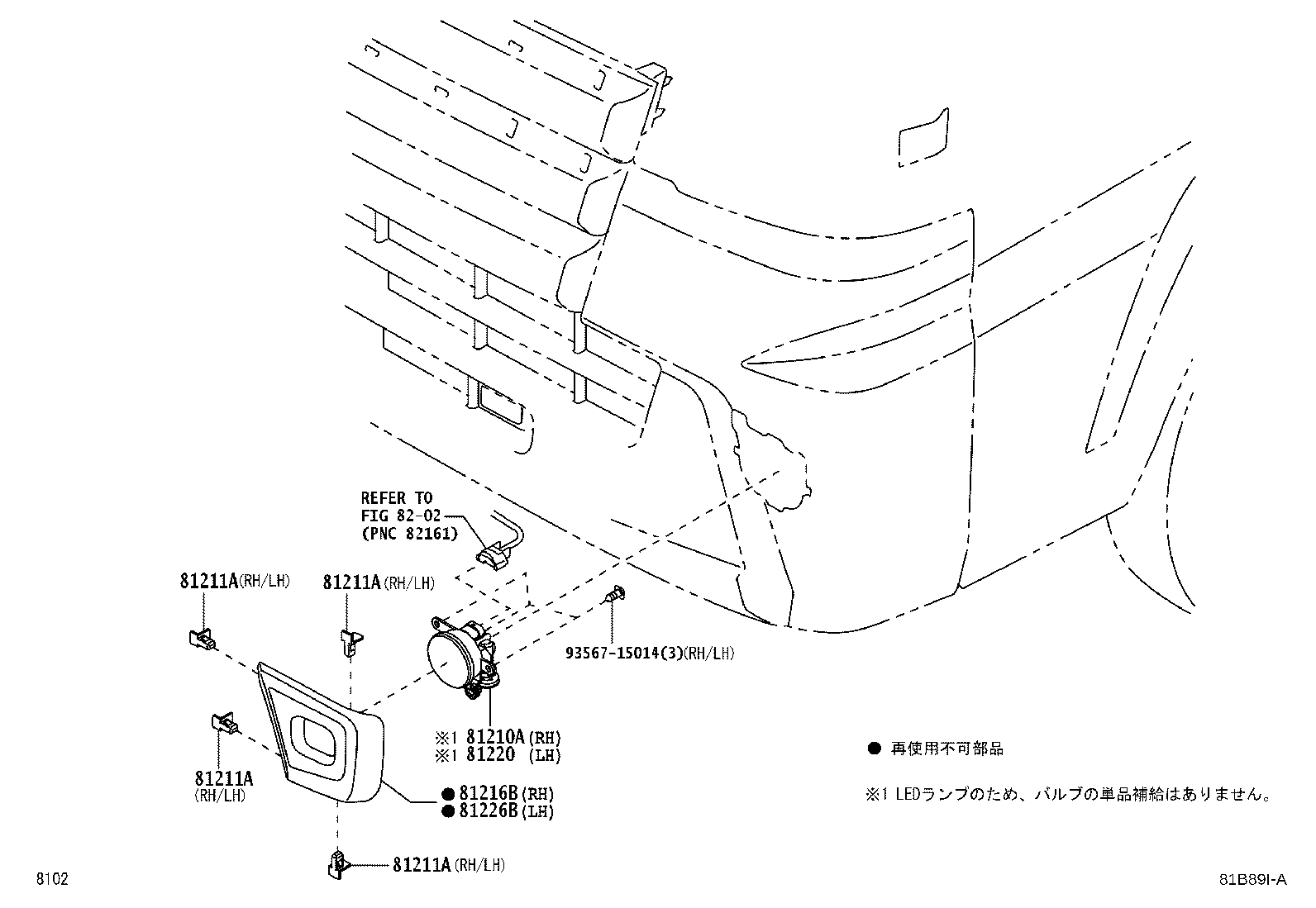

11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81210A | Lamp Assy, Fog, RH |
| 81210B | Bulb, Fog Lamp |
| 81211A | Retainer, Fog Lamp |
| 81211C | Lamp Unit, Fog Lamp, RH |
| 81215E | Cord, Fog Lamp |
| 81216B | Rim, Fog Lamp, RH NO.1 |
| 81219A | Bracket, Fog Lamp, RH |
| 81220 | Lamp Assy, Fog, LH |
| 81221C | Lamp Unit, Fog Lamp, LH |
| 81226B | Rim, Fog Lamp, LH |
| 81229A | Bracket, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
