Toyota Pixis Truck

2014-09 → present · chassis S500U,S510U · catalogue 897120 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

17 part groups · 11 illustrations

Illustrations

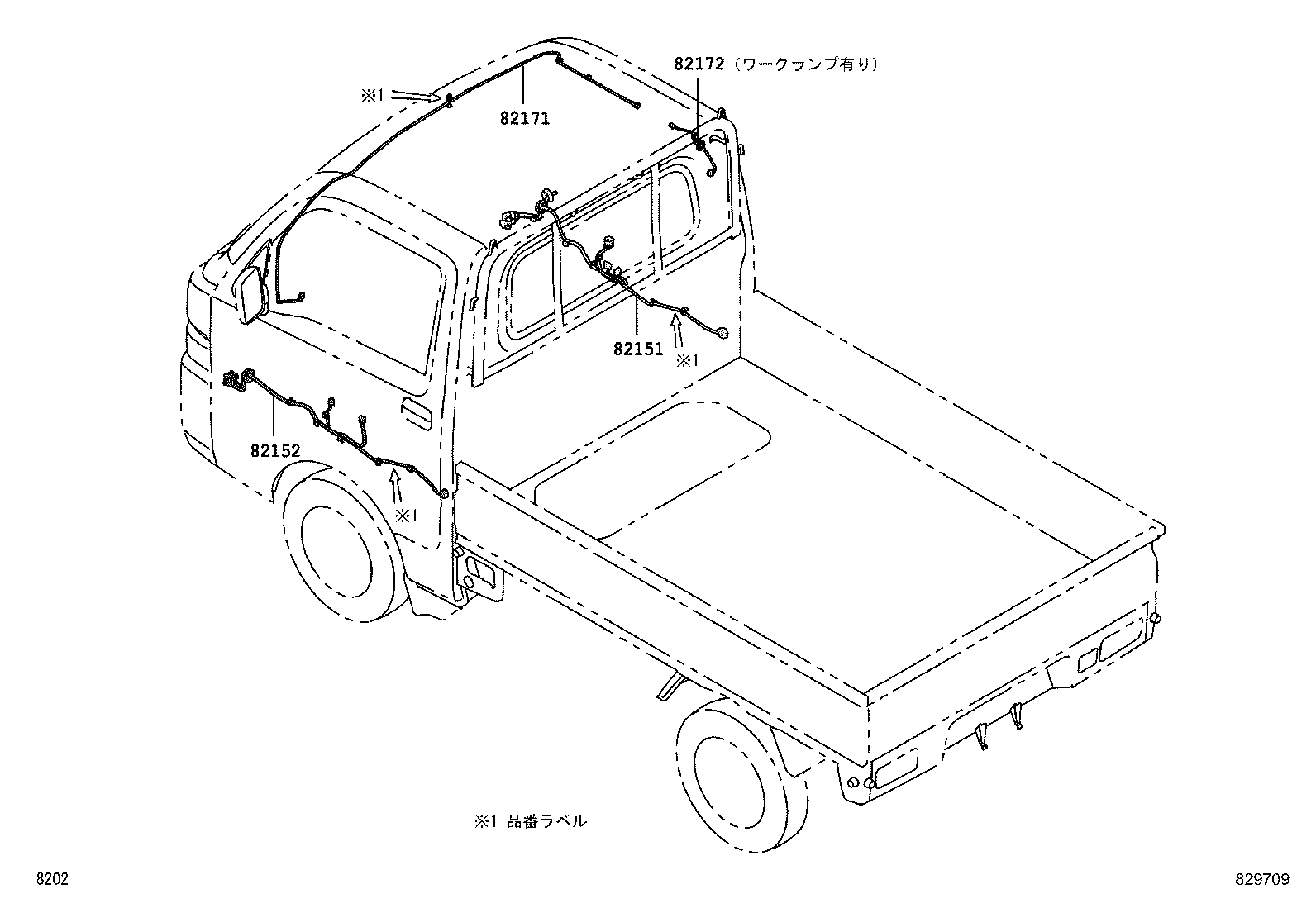

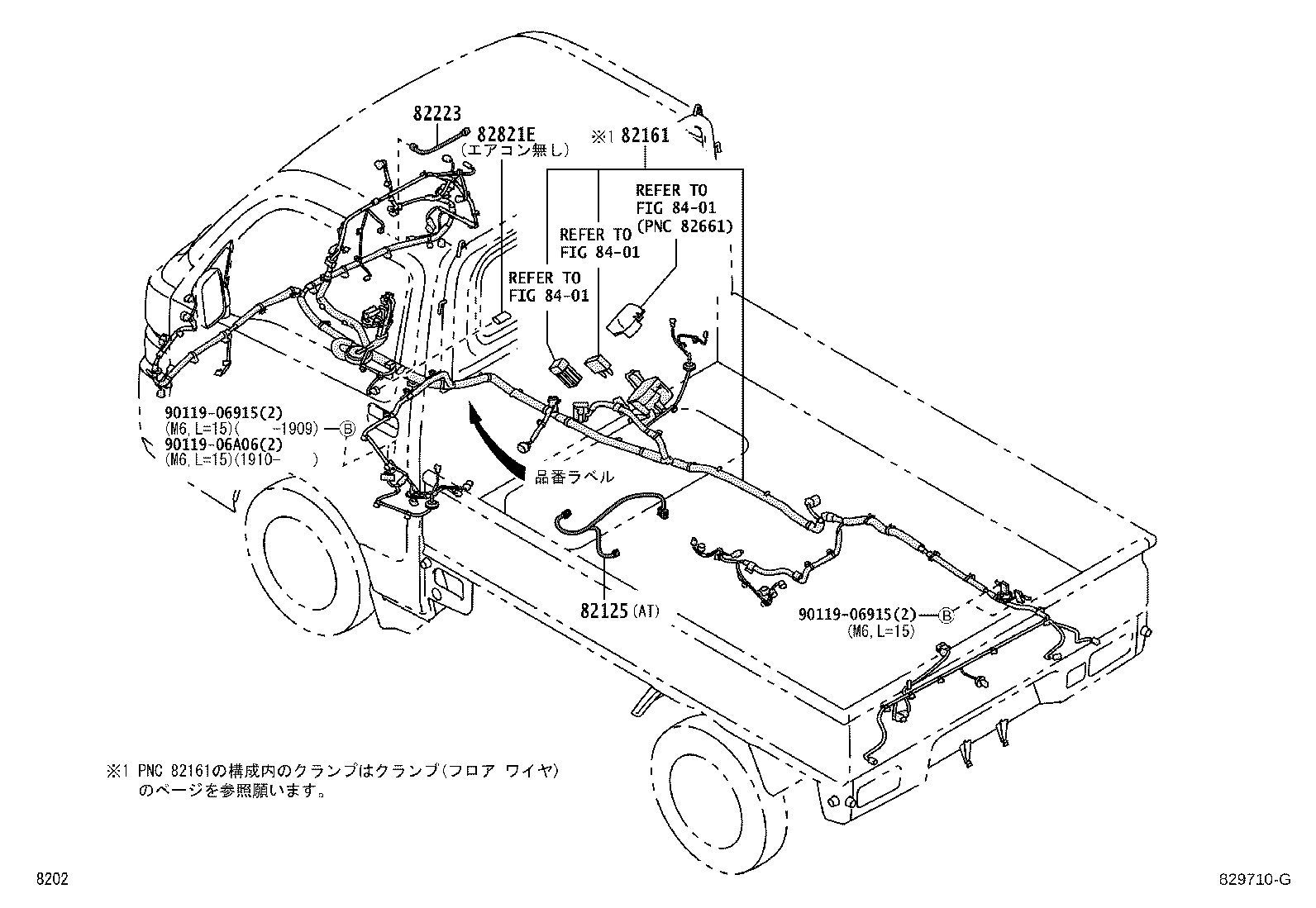

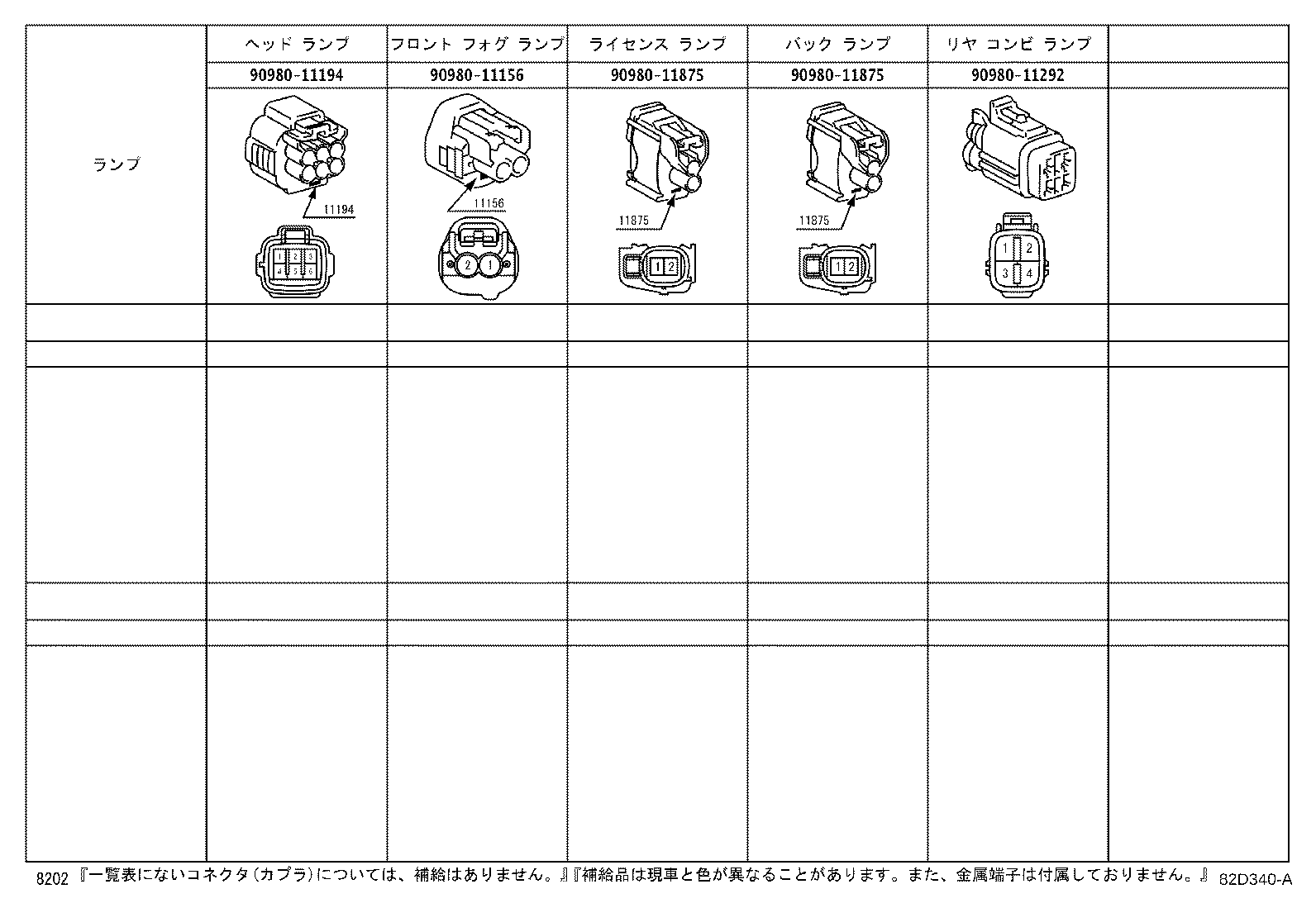

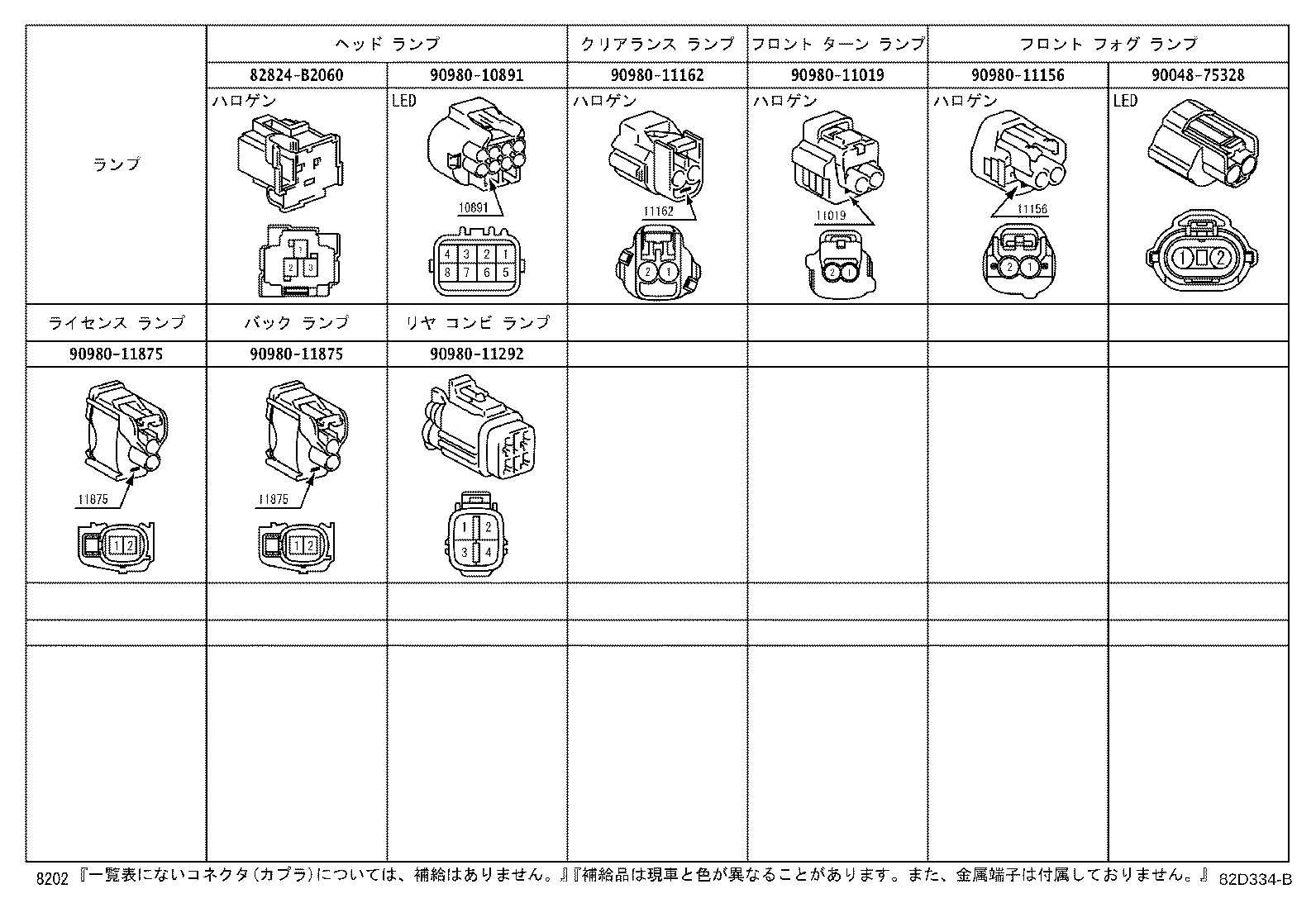

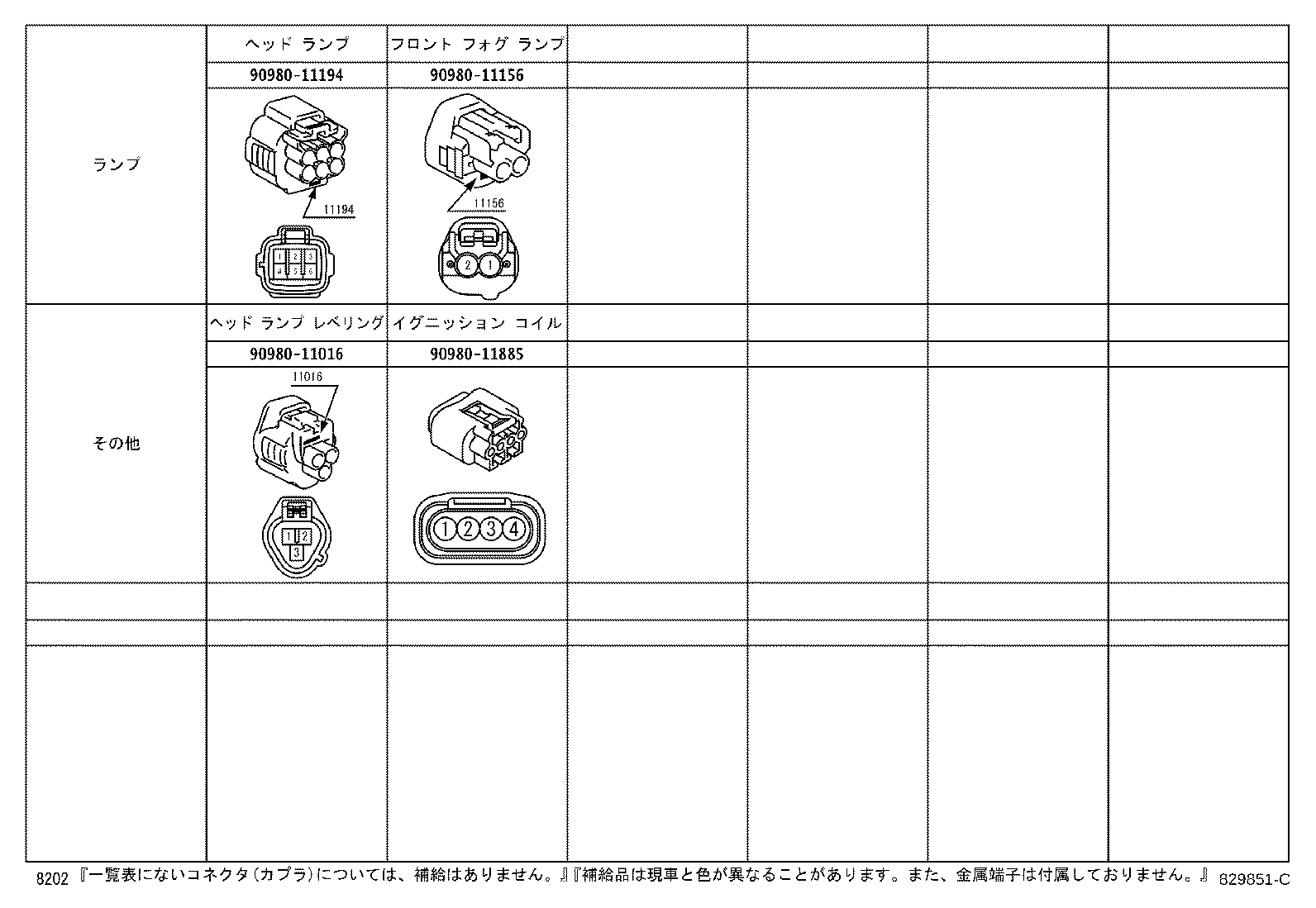

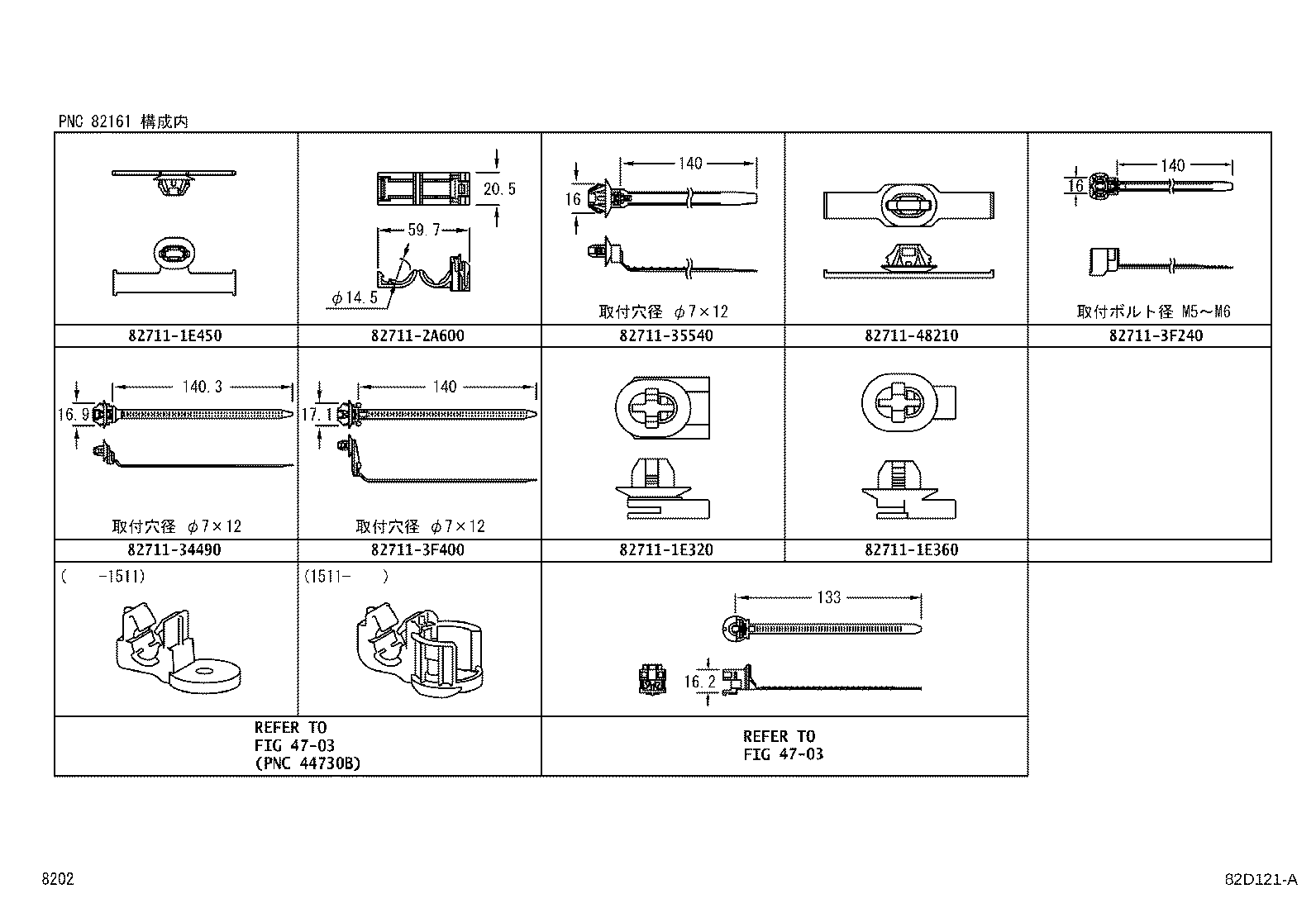

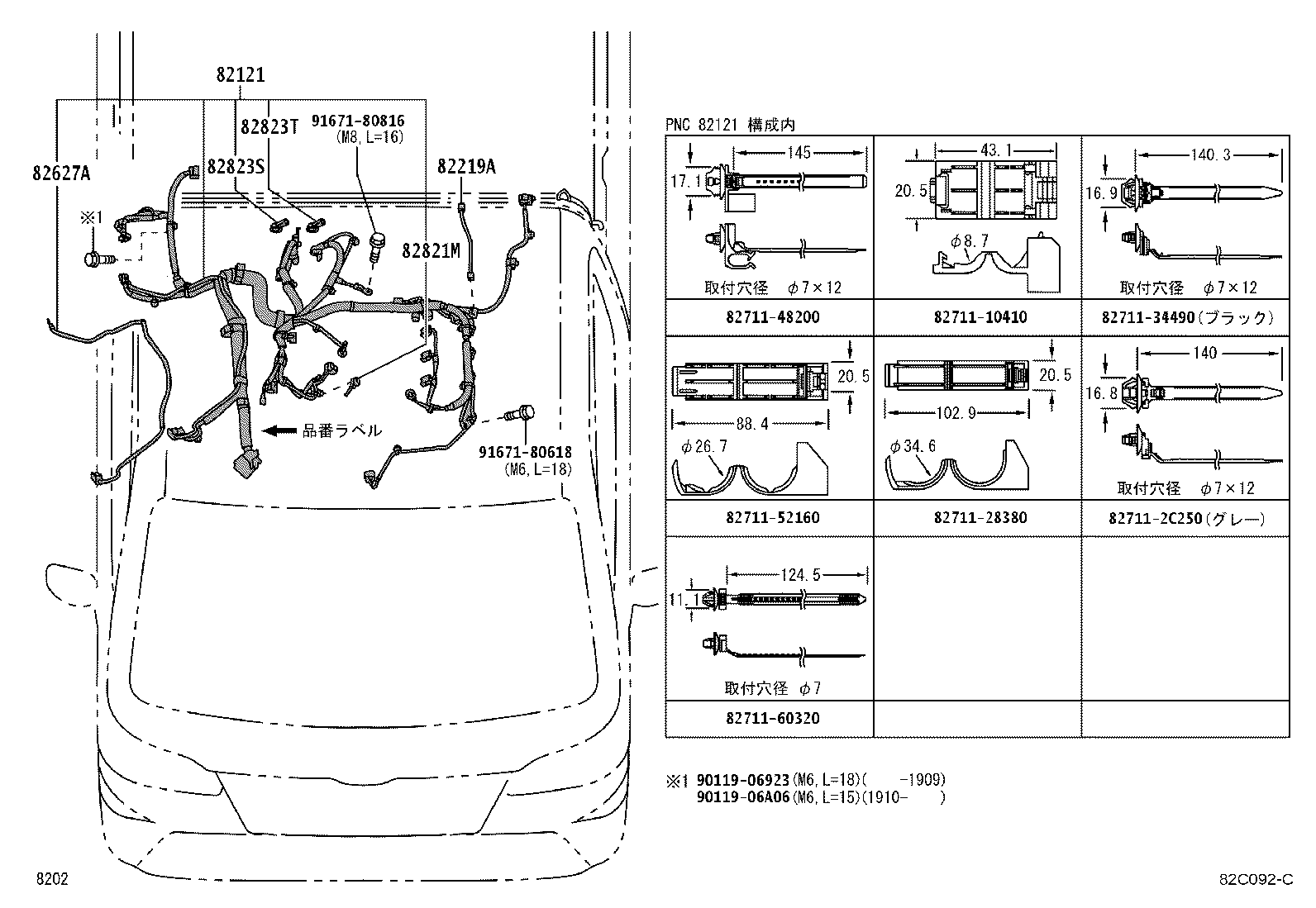

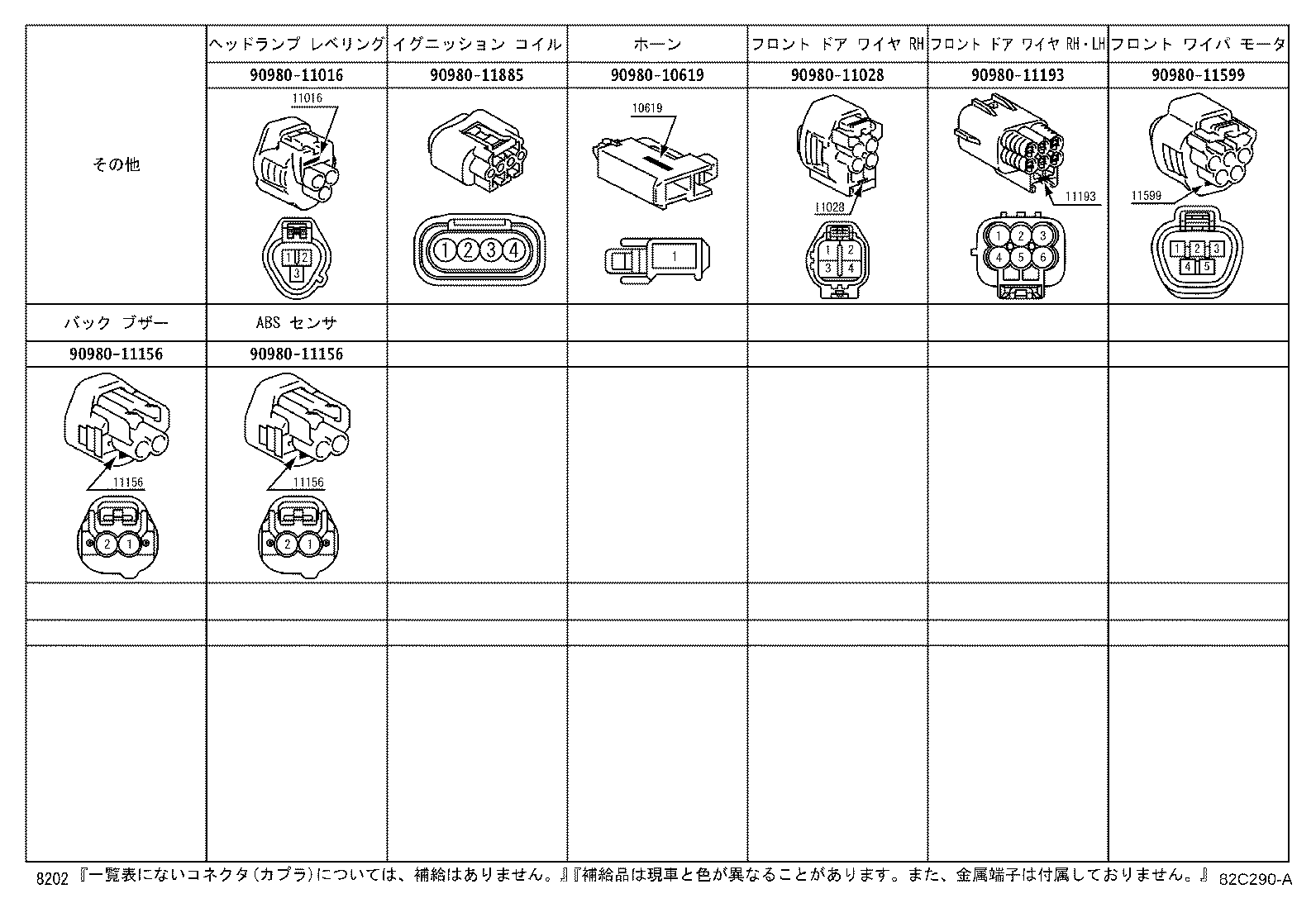

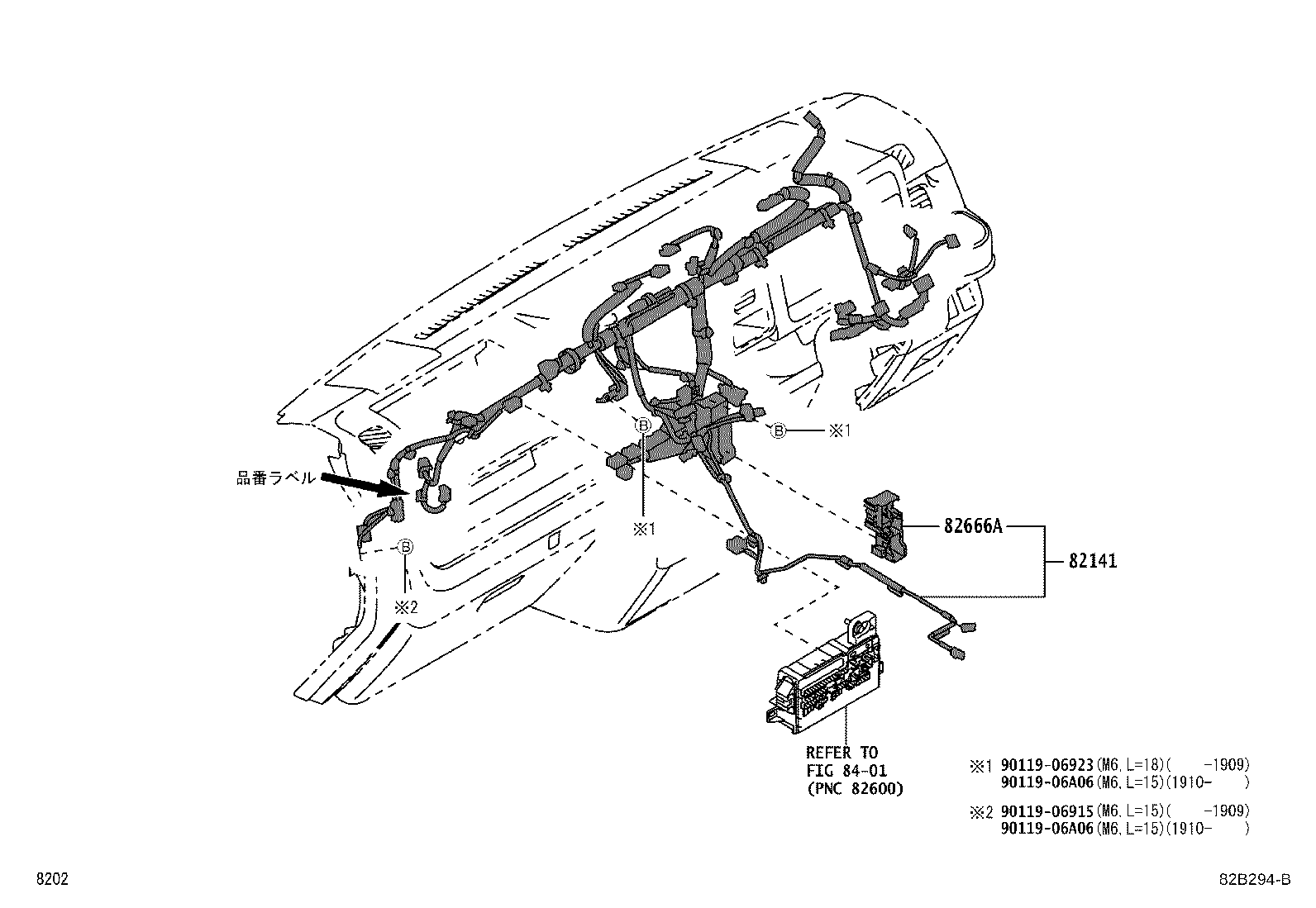

Figure 829930B 829930B 2014-09 → — Figure 82C092C 82C092C 2014-09 → — Figure 82B294B 82B294B 2014-09 → — Figure 829709 829709 2014-09 → — Figure 829710G 829710G 2014-09 → — Figure 82D121A 82D121A 2014-09 → — Figure 829711A 829711A 2014-09 → — Figure 829851C 829851C 2014-09 → 2016-10 Figure 82D340A 82D340A 2016-10 → 2017-11 Figure 82D334B 82D334B 2017-11 → — Figure 82C290A 82C290A 2016-10 → —

Part groups

PNCDescription
82121 Wire, Engine
82125 Wire, Transmission
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82219A Wire, Sensor
82223 Wire, Switch
82415 Wire, Fuel Pump
82627A Wire, Fusible Link
82666A Holder, Connector NO.2
82821E Cover, Connector
82821M Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
