Toyota Pixis Truck

2014-09 → present · chassis S500U,S510U · catalogue 897120 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

14 part groups · 2 illustrations

Illustrations

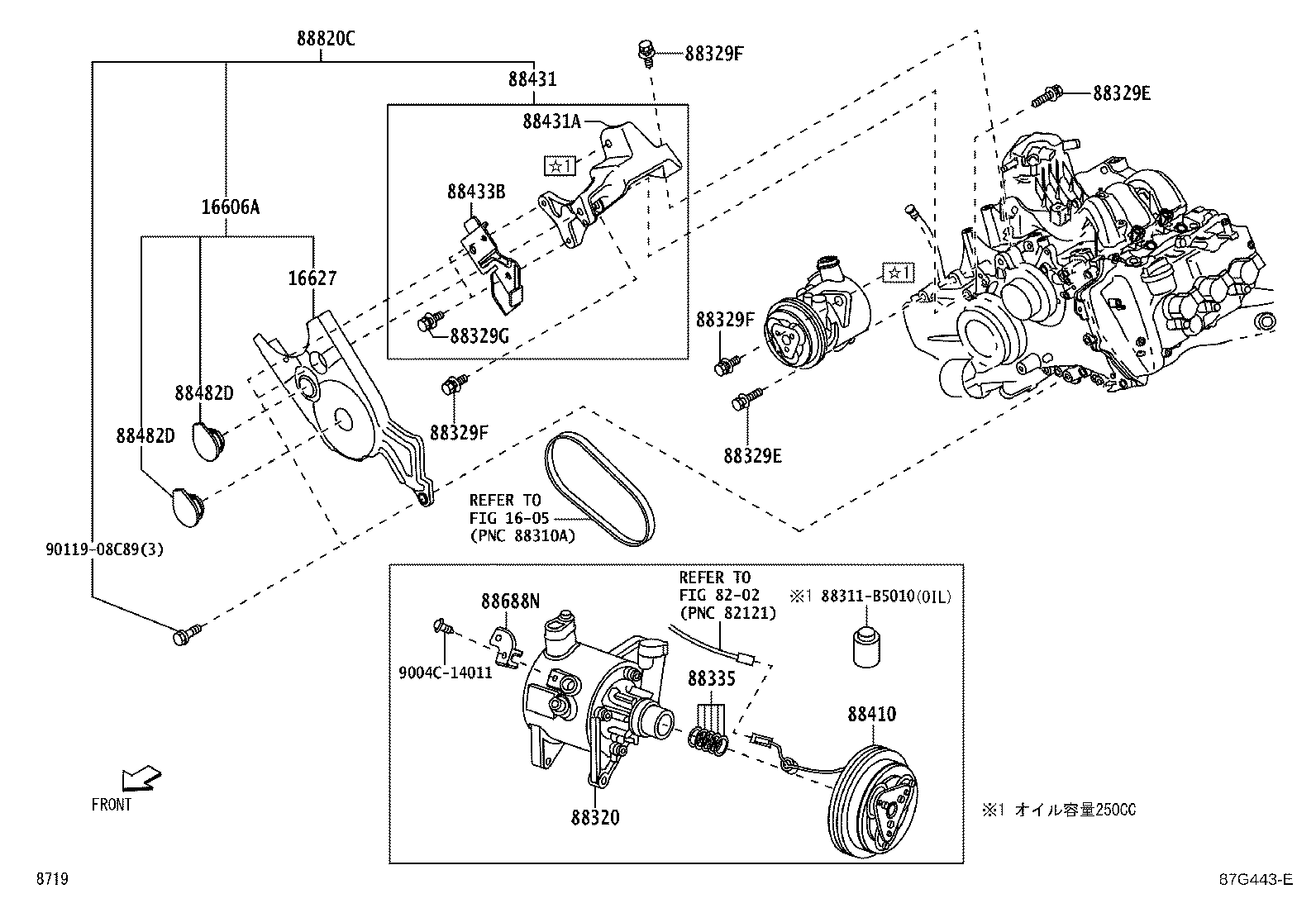

Figure 87E512F 87E512F 2014-09 → 2017-06 Figure 87G443E 87G443E 2017-06 → —

Part groups

PNCDescription
16606A Cover Sub-assy, V-ribbed Belt Tensioner
16627 Cover, V-ribbed Belt Tensioner
88320 Compressor Assy, Cooler
88329E Bolt, Compressor, NO.1
88329F Bolt, Compressor, NO.2
88329G Bolt, Compressor, NO.3
88335 Gasket Kit, Overhaul
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88431A Bracket, Compressor Mounting, NO.2
88433B Stay, Compressor
88482D Cap, Cooler
88688N Bracket, Cooler
88820C Air Conditioner & Accessory Sub-assy, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
