Toyota Pixis Truck
2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan
Supported model
Data version 2021-12

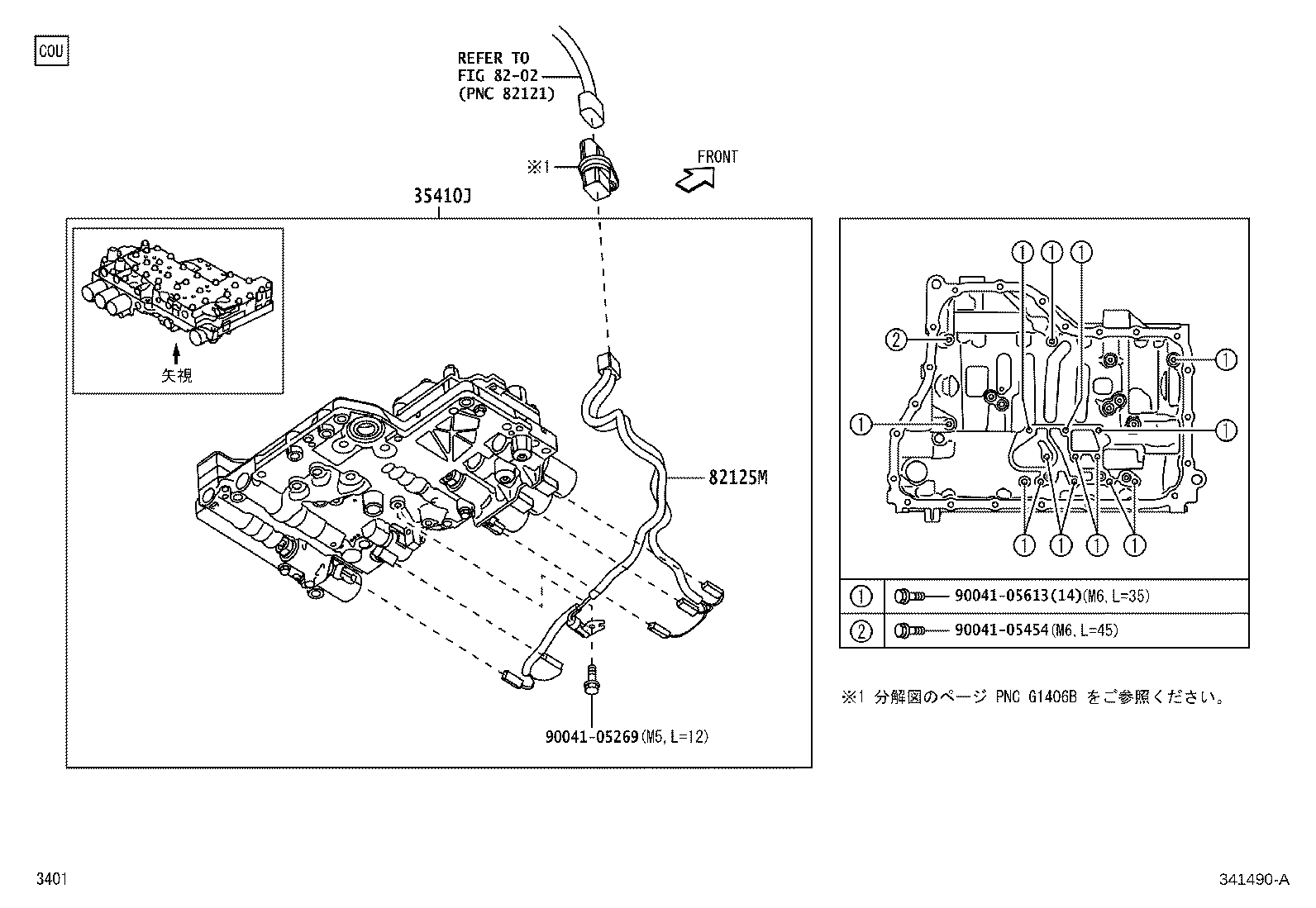

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35410J — Body Assy, Transmission Valve | ||||
| 35410-B5080 |
Body Assy, Transmission Valve
2021-12 → —
|
S500 CVT | ¥72,900 | |
| 35410-B5090 |
Body Assy, Transmission Valve
2021-12 → —
|
S510 CVT | ¥72,900 | |
| 82125M — Wire, Transmission | ||||
| 82125-B5010 |
Wire, Transmission
2021-12 → —
|
S500 CVT | ¥1,900 | |
| 82125-B5020 |
Wire, Transmission
2021-12 → —
|
S510 CVT | ¥1,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
