Toyota Pixis Truck

2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan

Supported model Data version 2021-12

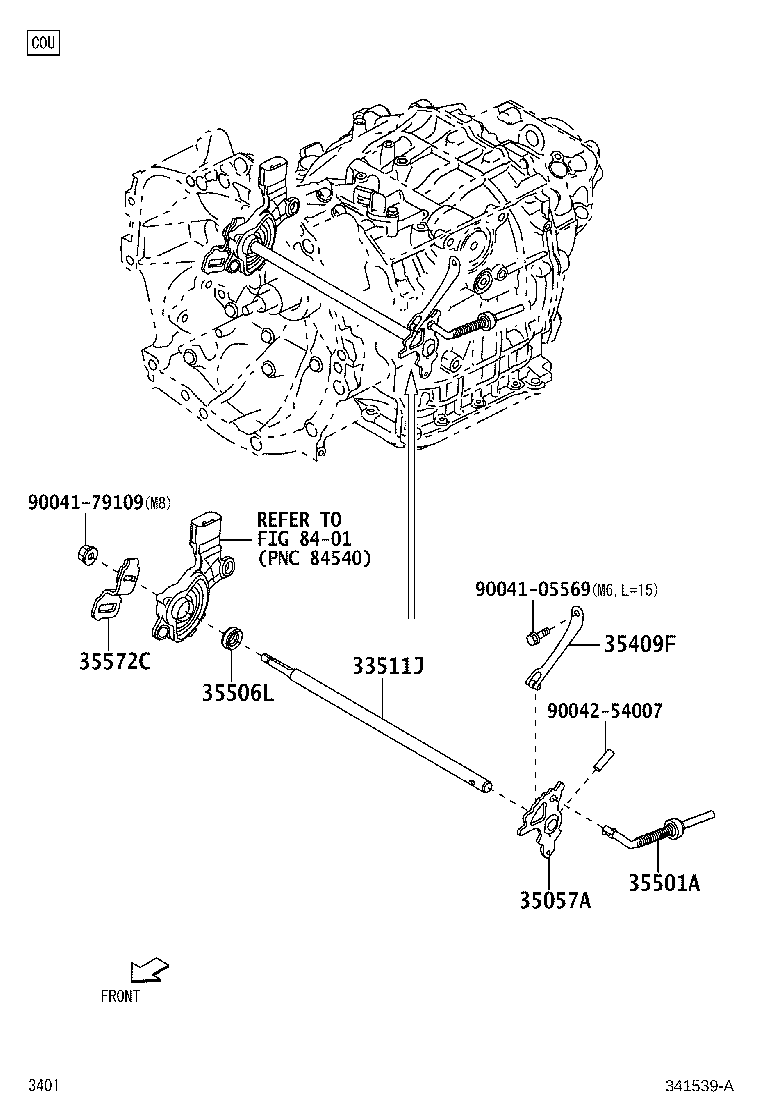

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

6 parts on this figure

Part number	Description	Fitment	Price
33511J — Shaft, Control
33511-B5010	Shaft, Control 2021-12 → —	S500,510 CVT	¥3,920
35057A — Lever Sub-assy,Parking Lock
35057-B5010	Lever Sub-assy,Parking Lock 2021-12 → —	S500,510 CVT	¥1,940
35409F — Spring Sub-assy, Manual Detent
35409-B5010	Spring Sub-assy, Manual Detent 2021-12 → —	S500,510 CVT	¥990
35501A — Rod Sub-assy, Parking Lock
35501-B5030	Rod Sub-assy, Parking Lock 2021-12 → —	S500,510 CVT	¥1,660
35506L — Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
90043-11256	Seal, Oil (FOR MANUAL VALVE LEVER SHAFT) 2021-12 → —	S500,510 CVT	¥300
35572C — Lever, Transmission Control Shaft
35572-B5020	Lever, Transmission Control Shaft 2021-12 → —	S500,510 CVT	¥650

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
