Toyota Pixis Truck
2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan
Supported model
Data version 2021-12

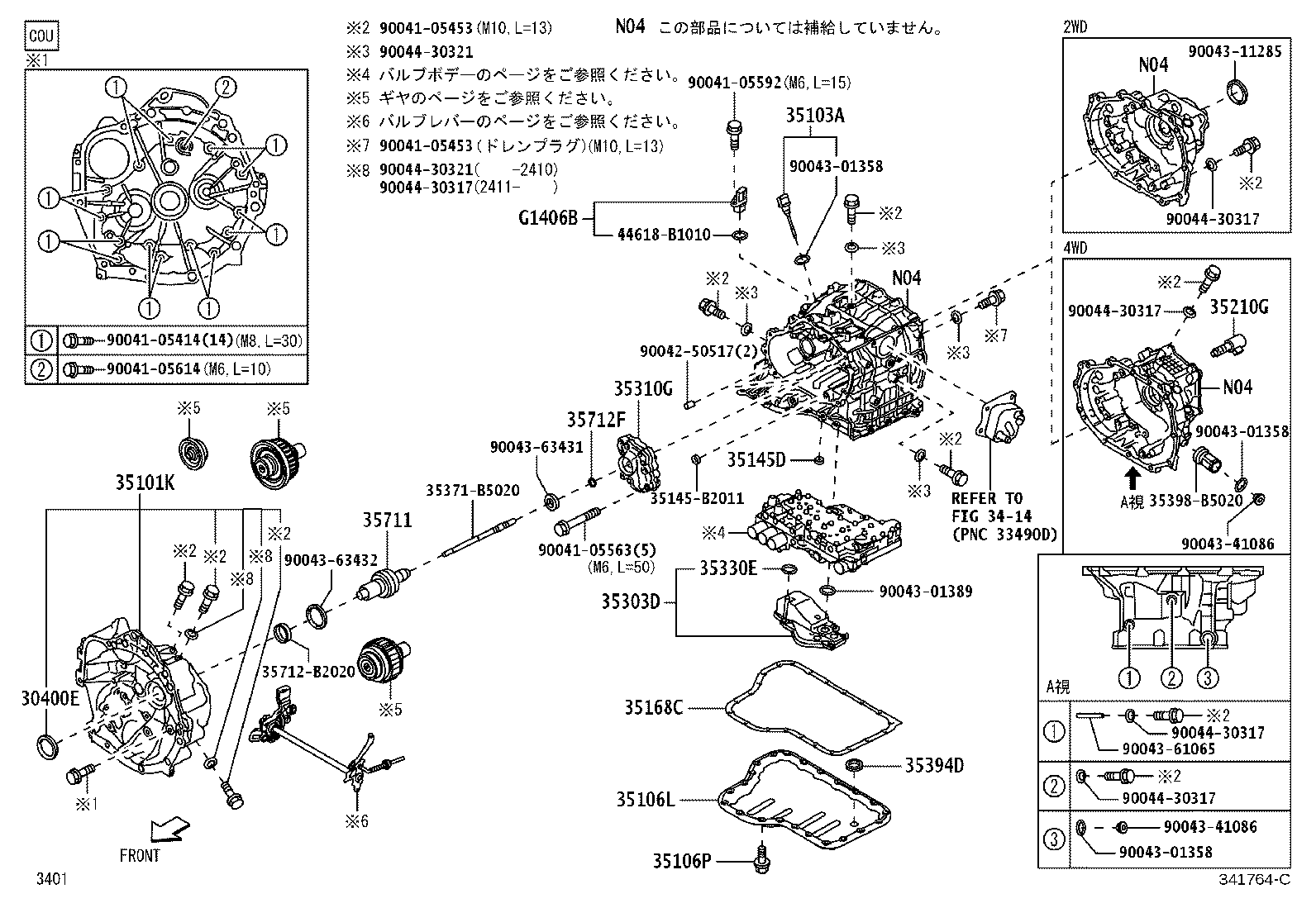

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30400E — Seal, Type T Oil(FOR CVT OIL PUMP) | ||||
| 90043-11436 |
Seal, Type T Oil(FOR CVT OIL PUMP)
2021-12 → —
|
S500,510 CVT | ¥560 | |
| 35101K — Case Sub-assy, Torque Converter | ||||
| 35101-B5010 note |
Case Sub-assy, Torque Converter
2021-12 → 2023-01
ended
|
S500,510 CVT | ¥29,500 | |
| 35101-B5020 |
Case Sub-assy, Torque Converter
2023-01 → —
|
S500,510 CVT | ¥26,800 | |
| 35103A — Gage Sub-assy, Transmission Oil Level | ||||
| 35103-B5060 note |
Gage Sub-assy, Transmission Oil Level
2021-12 → 2023-01
ended
|
S500,510 CVT | ¥890 | |
| 35103-B5070 |
Gage Sub-assy, Transmission Oil Level
2023-01 → —
|
S500,510 CVT | ¥810 | |
| 35106L — Pan Sub-assy, Transaxle Oil(CVT) | ||||
| 35161-B5010 |
Pan Sub-assy, Transaxle Oil(CVT)
2021-12 → —
|
S500,510 CVT | ¥6,200 | |
| 35106P — Bolt(FOR TRANSAXLE OIL PAN) | ||||
| 90041-20331 |
Bolt(FOR TRANSAXLE OIL PAN)
2021-12 → —
|
S500,510 CVT | ¥110 | |
| 35145D — Gasket, Transaxle Case | ||||
| 35145-B2011 |
Gasket, Transaxle Case
2021-12 → —
|
S500,510 CVT | ¥120 | |
| 35168C — Gasket, Transaxle Oil Pan(CVT) | ||||
| 35168-B5010 |
Gasket, Transaxle Oil Pan(CVT)
2021-12 → —
|
S500,510 CVT | ¥1,990 | |
| 35210G — Solenoid Assy, Clutch Control, NO.1 (SL1) | ||||
| 35220-B5010 |
Solenoid Assy, Clutch Control, NO.1 (SL1)
2021-12 → 2023-10
ended
|
S510 CVT | ¥6,400 | |
| 35220-B5010 |
Solenoid Assy, Clutch Control, NO.1 (SL1)
2023-11 → —
|
S510 CVT PS1 | ¥6,400 | |
| 35303D — Strainer Sub-assy, Oil | ||||
| 35303-B5010 |
Strainer Sub-assy, Oil
2021-12 → —
|
S500,510 CVT | ¥4,280 | |
| 35310G — Pump Assy, Front Oil | ||||
| 35310-B5010 |
Pump Assy, Front Oil
2021-12 → —
|
S500,510 CVT | ¥35,600 | |
| 35330E — Ring, O (FOR OIL STRAINER) | ||||
| 90043-01386 |
Ring, O (FOR OIL STRAINER)
2021-12 → —
|
S500,510 CVT | ¥110 | |
| 35394D — Magnet, Oil Cleaner(CVT) | ||||
| 33449-B2010 |
Magnet, Oil Cleaner(CVT)
2021-12 → —
|
S500,510 CVT | ¥180 | |
| 35711 — Shaft, Input | ||||
| 35711-B5010 |
Shaft, Input
2021-12 → —
|
S500,510 CVT | ¥5,800 | |
| 35712F — Ring, Input Shaft Oil Seal | ||||
| 35749-B2010 |
Ring, Input Shaft Oil Seal
2021-12 → —
|
S500,510 CVT | ¥160 | |
| G1406B — Connector Sub-assy, Trans Solenoid | ||||
| G1406-B1010 |
Connector Sub-assy, Trans Solenoid
2021-12 → —
|
S500,510 CVT | ¥2,630 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
