Toyota Pixis Truck

2021-12 → present · chassis S500U,S510U · catalogue 897130 · Japan

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

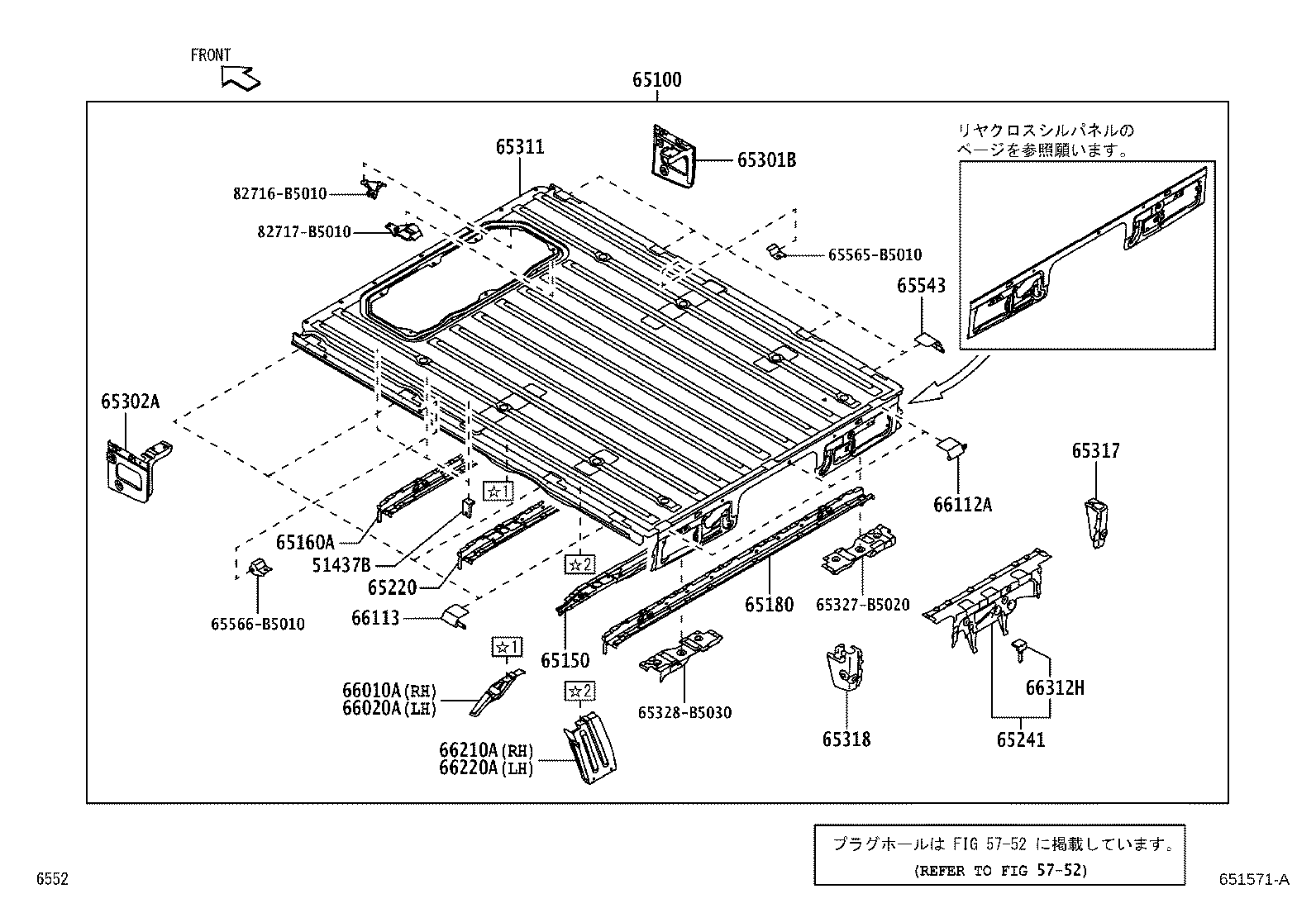

Exploded illustration 651571A 65327B5020 — not listed in this catalogue 65328B5030 — not listed in this catalogue 65566B5010 — not listed in this catalogue 65565B5010 — not listed in this catalogue 51437B — BRACKET, ENGINE SIDE COVER, NO.1 LH (2 parts) 65160A — SILL ASSY, CROSS, NO.2 (1 parts) 65220 — SILL ASSY, CROSS, NO.4 (1 parts) 65241 — SILL, REAR CROSS (2 parts) 65302A — PANEL SUB-ASSY, FLOOR FRONT CONER, LH (1 parts) 65317 — PANEL, FLOOR SIDE, RH (1 parts) 65318 — PANEL, FLOOR SIDE, LH (1 parts) 65150 — SILL ASSY, CROSS, NO.1 (1 parts) 66010A — FENDER ASSY, REAR NO.2 RH (1 parts) 66020A — FENDER ASSY, REAR NO.2 LH (1 parts) 66210A — FENDER ASSY, REAR NO.1 RH (1 parts) 66220A — FENDER ASSY, REAR NO.1 LH (1 parts) 65543 — HINGE, SIDE GATE FEMALE (1 parts) 66112A — HINGE, GATE FEMALE (1 parts) 82716B5010 — not listed in this catalogue 82717B5010 — not listed in this catalogue 66312H — HOOK, ROPE (1 parts) 66113 — HINGE, SIDE GATE, FEMALE (1 parts) 65100 — FLOOR ASSY, REAR BODY (3 parts) 65311 — PANEL, FLOOR, CENTER (1 parts) 65180 — SILL ASSY, CROSS, NO.4 (1 parts) 5752 — not listed in this catalogue 65301B — PANEL SUB-ASSY, FLOOR FRONT CONER, RH (1 parts)
651571A · 20 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
51437B — Bracket, Engine Side Cover, NO.1 LH
51437-B5010 note Bracket, Engine Side Cover, NO.1 LH
2021-12 → —
S500,510 CVT ¥180
51437-B5010 Bracket, Engine Side Cover, NO.1 LH
2021-12 → —
S500,510 5MT ¥180
65100 — Floor Assy, Rear Body
65008-B5A10 Floor Assy, Rear Body
2021-12 → —
S500,510 CVT ¥125,000
65008-B5A40 Floor Assy, Rear Body
2021-12 → —
S500,510 5MT ¥126,000
65008-B5A70 note Floor Assy, Rear Body
2021-12 → —
S500,510 ¥125,000
65150 — Sill Assy, Cross, NO.1
65105-B5010 Sill Assy, Cross, NO.1
2021-12 → —
S500,510 ¥8,700
65160A — Sill Assy, Cross, NO.2
65102-B5070 Sill Assy, Cross, NO.2
2021-12 → —
S500,510 ¥10,300
65180 — Sill Assy, Cross, NO.4
65104-B5080 Sill Assy, Cross, NO.4
2021-12 → —
S500,510 ¥8,700
65220 — Sill Assy, Cross, NO.4
65104-B5140 Sill Assy, Cross, NO.4
2021-12 → —
S500,510 ¥8,700
65241 — Sill, Rear Cross
65204-B5230 Sill, Rear Cross
2021-12 → —
S500,510 ¥7,100
65204-B5260 note Sill, Rear Cross
2021-12 → —
S500,510 ¥7,100
65301B — Panel Sub-assy, Floor Front Coner, RH
65301-B5011 Panel Sub-assy, Floor Front Coner, RH
2021-12 → —
S500,510 ¥3,820
65302A — Panel Sub-assy, Floor Front Coner, LH
65302-B5011 Panel Sub-assy, Floor Front Coner, LH
2021-12 → —
S500,510 ¥3,820
65311 — Panel, Floor, Center
65311-B5290 Panel, Floor, Center
2021-12 → —
S500,510 ¥44,800
65317 — Panel, Floor Side, RH
65303-B5020 Panel, Floor Side, RH
2021-12 → —
S500,510 ¥2,730
65318 — Panel, Floor Side, LH
65304-B5020 Panel, Floor Side, LH
2021-12 → —
S500,510 ¥2,730
65543 — Hinge, Side Gate Female
66110-B5050 Hinge, Side Gate Female
2021-12 → —
S500,510 ¥1,030
66010A — Fender Assy, Rear NO.2 RH
61421-B5010 Fender Assy, Rear NO.2 RH
2021-12 → —
S500,510 ¥2,730
66020A — Fender Assy, Rear NO.2 LH
61411-B5050 Fender Assy, Rear NO.2 LH
2021-12 → —
S500,510 ¥2,730
66112A — Hinge, Gate Female
66120-B5040 Hinge, Gate Female
2021-12 → —
S500,510 ¥930
66113 — Hinge, Side Gate, Female
66120-B5050 Hinge, Side Gate, Female
2021-12 → —
S500,510 ¥1,030
66210A — Fender Assy, Rear NO.1 RH
61411-B5050 Fender Assy, Rear NO.1 RH
2021-12 → —
S500,510 ¥2,730
66220A — Fender Assy, Rear NO.1 LH
61421-B5010 Fender Assy, Rear NO.1 LH
2021-12 → —
S500,510 ¥2,730
66312H — Hook, Rope
66313-87503 Hook, Rope
2021-12 → —
S500,510 ¥490
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
